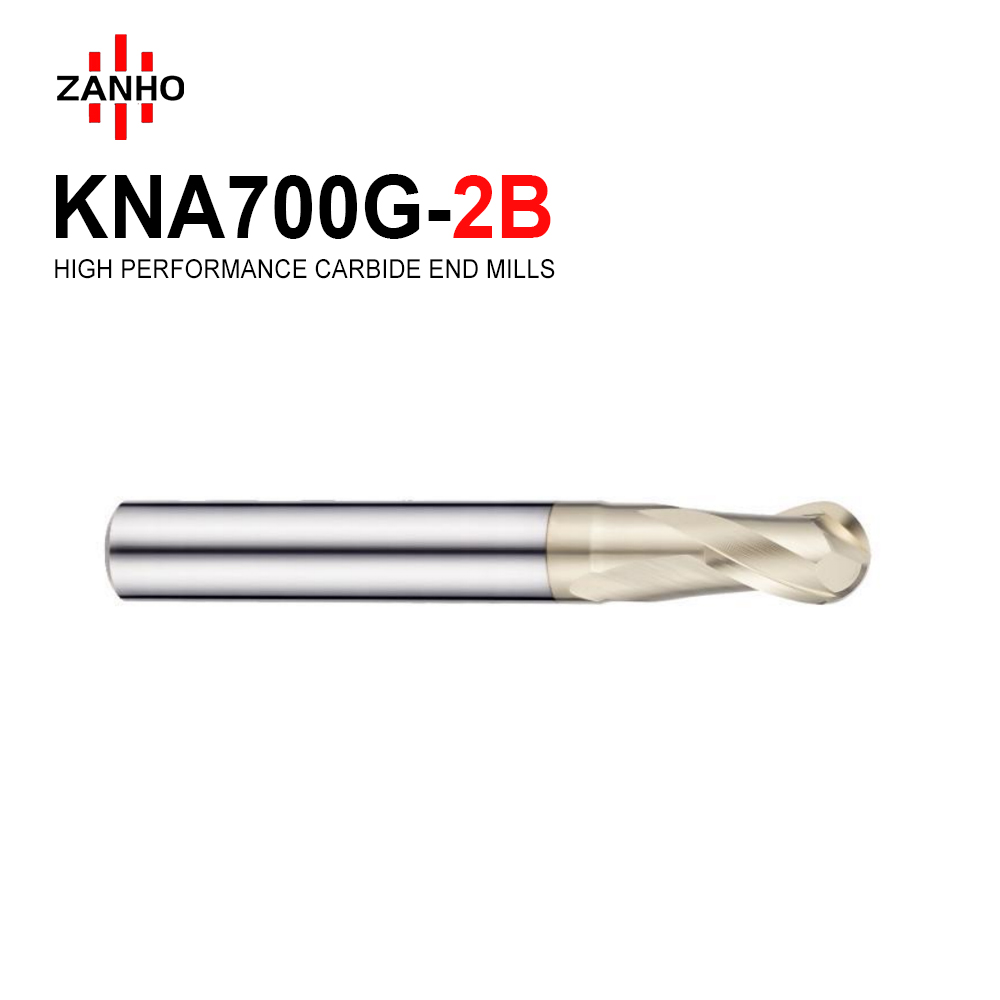

KNA700G-2B-BALL NOSE

  • Design: Anti-vibration unequal division to suppress resonance during 3D contouring.
  • Application: Specialized for 3D profiling, copy milling, and finishing on complex surfaces.
  • Coating: High-performance ZRN coating for superior wear resistance.
  • Workpiece:  super alloy
  • Benefit: Achieves a superior surface finish by eliminating chatter and tool noise.
Categories:
Learn More
Download PDF
Description



KNA700G Order Number  Specification  D  L1  D1 L
KNA700G-2B-01002 R0.5*D4*50L*2F 1 2 4 50
KNA700G-2B-01503 R0.75*D4*50L*2F 1.5 3 4 50
KNA700G-2B-02004 R1*D4*50L*2F 2 4 4 50
KNA700G-2B-02505 R1.25*D4*50L*4F 2.5 5 4 50
KNA700G-2B-33006 R1.5*D3*50L*2F 3 6 3 50
KNA700G-2B-03006 R1.5*D4*50L*2F 3 6 4 50
KNA700G-2B-03507 R1.75*D4*50L*2F 3.5 7 4 50
KNA700G-2B-04008 R2*D4*50L*2F 4 8 4 50
KNA700G-2B-55010 R2.5*D5*50L*2F 5 10 5 50
KNA700G-2B-05010 R2.5*D6*50L*2F 5 10 6 50
KNA700G-2B-06012 R3*D6*50L*2F 6 12 6 50
KNA700G-2B-08016 R4*D8*60L*2F 8 16 8 60
KNA700G-2B-10020 R5*D10*75L*2F 10 20 10 75
KNA700G-2B-12024 R6*D12*75L*2F 12 24 12 75
KNA700G-2B-14028 R7*D14*100L*2F 14 28 14 100
KNA700G-2B-16032 R8*D16*100L*2F 16 32 16 100
KNA700G-2B-18036 R9*D18*100L*2F 18 36 18 100
KNA700G-2B-20040 R10*D20*100L*2F 20 40 20 100
KNA700G-2BH-01002 R0.5*D4*75L*2F 1 2 4 75
KNA700G-2BH-01503 R0.75*D4*75L*2F 1.5 3 4 75
KNA700G-2BH-02004 R1*D4*75L*2F 2 4 4 75
KNA700G-2BH-02505 R1.25*D4*75L*2F 2.5 5 4 75
KNA700G-2BH-03006 R1.5*D4*75L*2F 3 6 4 75
KNA700G-2BH-33006 R1.5*D3*75L*2F 3 6 3 75
KNA700G-2BH-33006A R1.5*D3*100L*2F 3 6 3 100
KNA700G-2BH-04008 R2*D4*75L*2F 4 8 4 75
KNA700G-2BH-04008A R2*D4*100L*2F 4 8 4 100
KNA700G-2BH-55010 R2.5*D5*75L*2F 5 10 5 75
KNA700G-2BH-06012 R3*D6*75L*2F 6 12 6 75
KNA700G-2BH-55010A R2.5*D5*100L*2F 5 10 5 100
KNA700G-2BH-06012A R3*D6*100L*2F 6 12 6 100
KNA700G-2BH-06012B R3*D6*150L*2F 6 12 6 150
KNA700G-2BH-08016 R4*D8*75L*2F 8 16 8 75
KNA700G-2BH-08016A R4*D8*100L*2F 8 16 8 100
KNA700G-2BH-08016B R4*D8*150L*2F 8 16 8 150
KNA700G-2BH-10020 R5*D10*100L*2F 10 20 10 100
KNA700G-2BH-10020A R5*D10*150L*2F 10 20 10 150
KNA700G-2BH-12024 R6*D12*100L*2F 12 24 12 100
KNA700G-2BH-12024A R6*D12*150L*2F 12 24 12 150
KNA700G-2BH-14028 R7*D14*150L*2F 14 28 14 150
KNA700G-2BH-16032 R8*D16*150L*2F 16 32 16 150
KNA700G-2BH-18036 R9*D18*150L*2F 18 36 18 150
KNA700G-2BH-20040 R10*D20*150L*2F 20 40 20 150
KNA700G-2BH-08016C R4*D8*200L*2F 8 16 8 200
KNA700G-2BH-10020B R5*D10*200L*2F 10 20 10 200
KNA700G-2BH-12024B R6*D12*200L*2F 12 24 12 200
KNA700G-2BH-16032A R8*D16*200L*2F 16 32 16 200
KNA700G-2BH-20040A R10*D20*200L*2F 20 40 20 200
