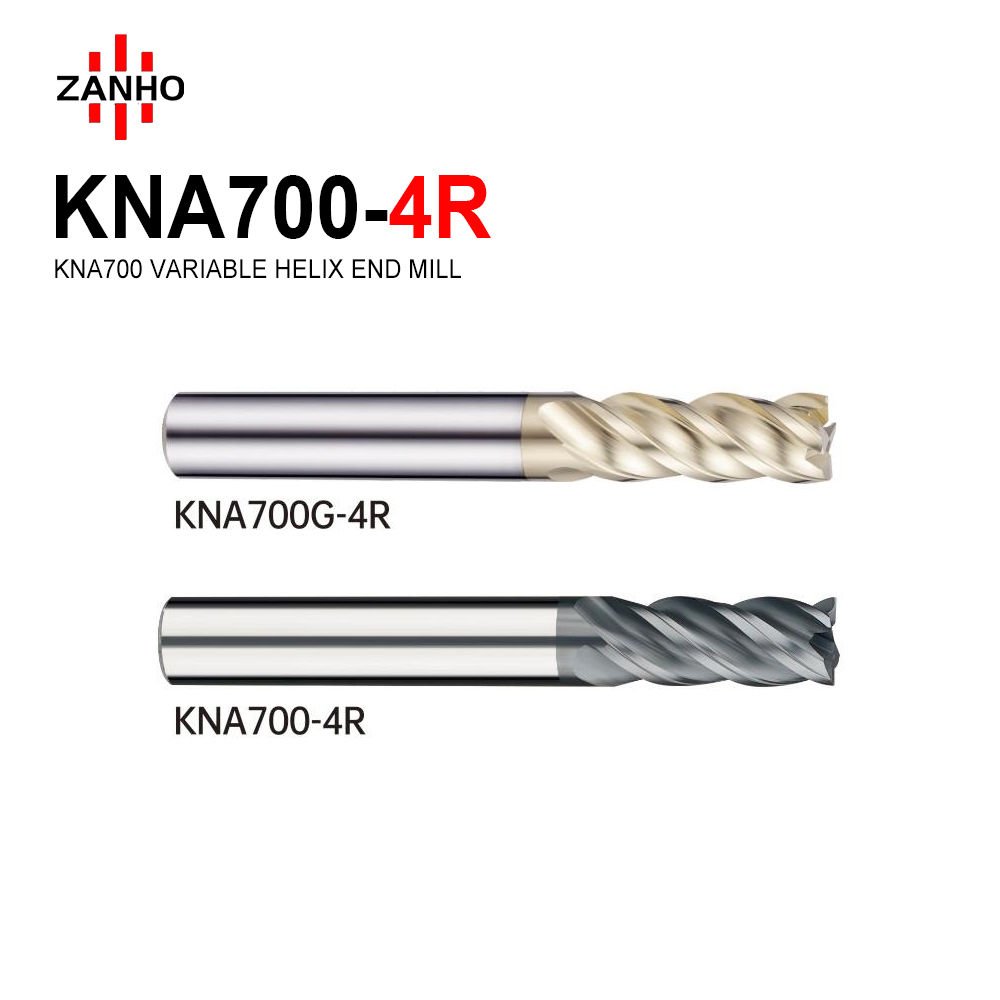

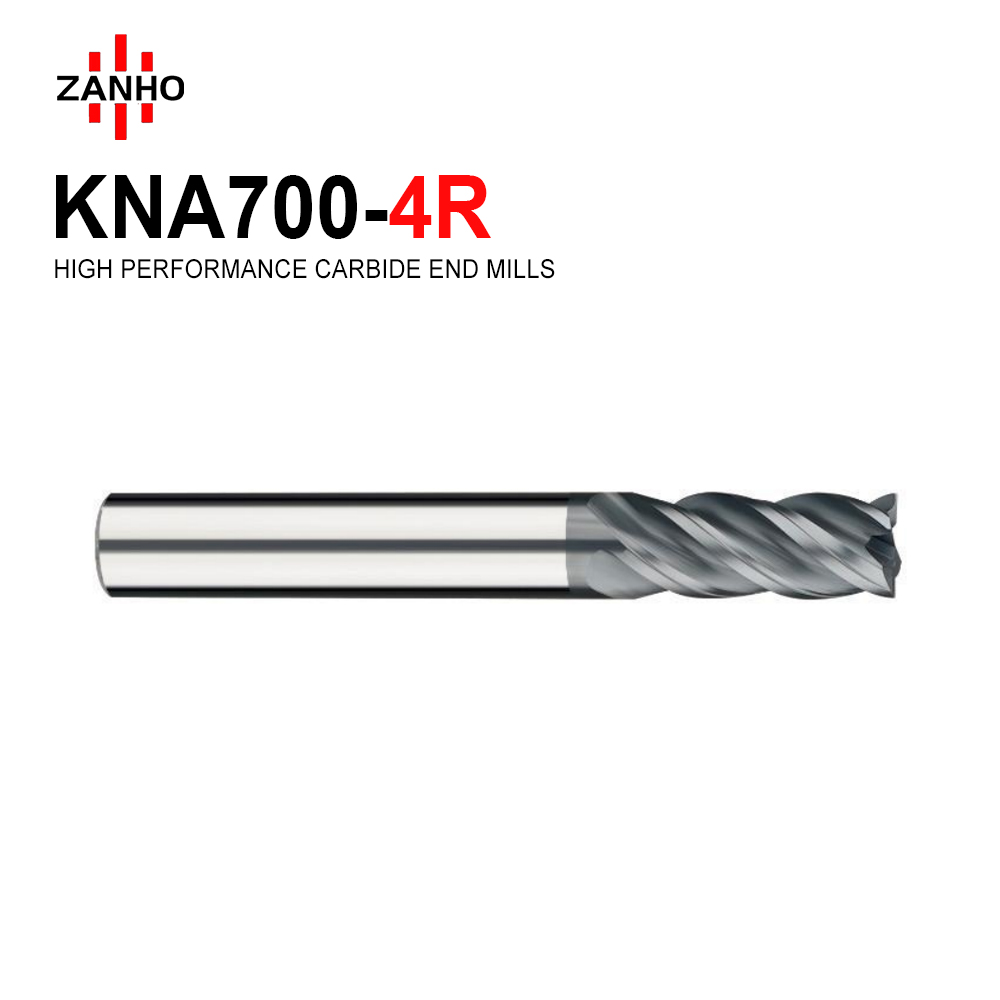

KNA700-4R-CORNER RADIUS

  • Anti-vibration Design: Unequal division and 38°/40° variable helix to suppress chatter and resonance.
  • Durable Corner Radius: Enhanced edge strength (Bull Nose) prevents chipping, ideal for stable, high-efficiency milling.
  • High Performance Coating: AD Coating for excellent oxidation resistance and extended tool longevity.
  • Workpiece: Specialized for Carbon Steel, Alloy Steel, and Stainless Steel (Up to 45 HRC).
  • Benefit: Achieves a superior surface finish and precision in demanding CNC operations.
Categories:
Learn More
Download PDF
Description
  • Anti-vibration Design: Unequal division and 38°/40° variable helix to suppress chatter and resonance.
  • Durable Corner Radius: Enhanced edge strength (Bull Nose) prevents chipping, ideal for stable, high-efficiency milling.
  • High Performance Coating: AD Coating for excellent oxidation resistance and extended tool longevity.
  • Workpiece: Specialized for Carbon Steel, Alloy Steel, and Stainless Steel (Up to 45 HRC).
  • Benefit: Achieves a superior surface finish and precision in demanding CNC operations.



KNA700G Order Number KNA700 Order Number Specification D  R  L1  D1  L
KNA700G-4R-01002 KNA700-4R-01002 D1R0.2*D4*50L*4F 1 0.2 3 4 50
KNA700G-4R-01502 KNA700-4R-01502 D1.5R0.2*D4*50L*4F 1.5 0.2 5 4 50
KNA700G-4R-02002 KNA700-4R-02002 D2R0.2*D4*50L*4F 2 0.2 6 4 50
KNA700G-4R-02005 KNA700-4R-02005 D2R0.5*D4*50L*4F 2 0.5 6 4 50
KNA700G-4R-03002 KNA700-4R-03002 D3R0.2*D4*50L*4F 3 0.2 8 4 50
KNA700G-4R-03005 KNA700-4R-03005 D3R0.5*D4*50L*4F 3 0.5 8 4 50
KNA700G-4R-33005 KNA700-4R-33005 D3R0.5*D3*50L*4F 3 0.5 8 3 50
KNA700G-4R-03010 KNA700-4R-03010 D3R1*D4*50L*4F 3 1 8 4 50
KNA700G-4R-04002 KNA700-4R-04002 D4R0.2*D4*50L*4F 4 0.2 10 4 50
KNA700G-4R-04005 KNA700-4R-04005 D4R0.5*D4*50L*4F 4 0.5 10 4 50
KNA700G-4R-04010 KNA700-4R-04010 D4R1*D4*50L*4F 4 1 10 4 50
KNA700G-4R-06002 KNA700-4R-06002 D6R0.2*D6*50L*4F 6 0.2 15 6 50
KNA700G-4R-06005 KNA700-4R-06005 D6R0.5*D6*50L*4F 6 0.5 15 6 50
KNA700G-4R-0610 KNA700-4R-0610 D6R1*D6*50L*4F 6 1 15 6 50
KNA700G-4R-08005 KNA700-4R-08005 D8R0.5*D8*60L*4F 8 0.5 20 8 60
KNA700G-4R-08010 KNA700-4R-08010 D8R1*D8*60L*4F 8 1 20 8 60
KNA700G-4R-10005 KNA700-4R-10005 D10R0.5*D10*75L*4F 10 0.5 25 10 75
KNA700G-4R-10010 KNA700-4R-10010 D10R1*D10*75L*4F 10 1 25 10 75
KNA700G-4R-12005 KNA700-4R-12005 D12R0.5*D12*75L*4F 12 0.5 30 12 75
KNA700G-4R-12010 KNA700-4R-12010 D12R1*D12*75L*4F 12 1 30 12 75
KNA700G-4RH-04005 KNA700-4RH-04005 D4R0.5*D4*75L*4F 4 0.5 12 4 75
KNA700G-4RH-04005A KNA700-4RH-04005A D4R0.5*D4*100L*4F 4 0.5 16 4 100
KNA700G-4RH-04010 KNA700-4RH-04010 D4R1*D4*75L*4F 4 1 12 4 75
KNA700G-4RH-04010A KNA700-4RH-04010A D4R1*D4*100L*4F 4 1 16 4 100
KNA700G-4RH-06005 KNA700-4RH-06005 D6R0.5*D6*75L*4F 6 0.5 20 6 75
KNA700G-4RH-06005A KNA700-4RH-06005A D6R0.5*D6*100L*4F 6 0.5 25 6 100
KNA700G-4RH-06005B KNA700-4RH-06005B D6R0.5*D4*150L*4F 6 0.5 30 6 150
KNA700G-4RH-06010 KNA700-4RH-06010 D6R1*D6*75L*4F 6 1 20 6 75
KNA700G-4RH-06010A KNA700-4RH-06010A D6R1*D6*100L*4F 6 1 25 6 100
KNA700G-4RH-06010B KNA700-4RH-06010B D6R1*D6*150L*4F 6 1 30 6 150
KNA700G-4RH-08005 KNA700-4RH-08005 D8R0.5*D8*75L*4F 8 0.5 24 8 75
KNA700G-4RH-08005A KNA700-4RH-08005A D8R0.5*D8*100L*4F 8 0.5 30 8 100
KNA700G-4RH-08005B KNA700-4RH-08005B D8R0.5*D8*150L*4F 8 0.5 40 8 150
KNA700G-4RH-08010 KNA700-4RH-08010 D8R1*D8*75L*4F 8 1 24 8 75
KNA700G-4RH-08010A KNA700-4RH-08010A D8R1*D8*100L*4F 8 1 30 8 100
KNA700G-4RH-08010B KNA700-4RH-08010B D8R1*D8*150L*4F 8 1 40 8 150
KNA700G-4RH-10005 KNA700-4RH-10005 D10R0.5*D10*100L*4F 10 0.5 30 10 100
KNA700G-4RH-10005A KNA700-4RH-10005A D10R0.5*D10*150L*4F 10 0.5 45 10 150
KNA700G-4RH-10010 KNA700-4RH-10010 D10R1*D10*100L*4F 10 1 30 10 100
KNA700G-4RH-10010A KNA700-4RH-10010A D10R1*D10*150L*4F 10 1 45 10 150
KNA700G-4RH-12005 KNA700-4RH-12005 D12R0.5*D12*100L*4F 12 0.5 35 12 100
KNA700G-4RH-12005A KNA700-4RH-12005A D12R0.5*D12*150L*4F 12 0.5 45 12 150
KNA700G-4RH-12010 KNA700-4RH-12010 D12R1*D12*100L*4F 12 1 35 12 100
KNA700G-4RH-12010A KNA700-4RH-12010A D12R1*D12*150L*4F 12 1 45 12 150
