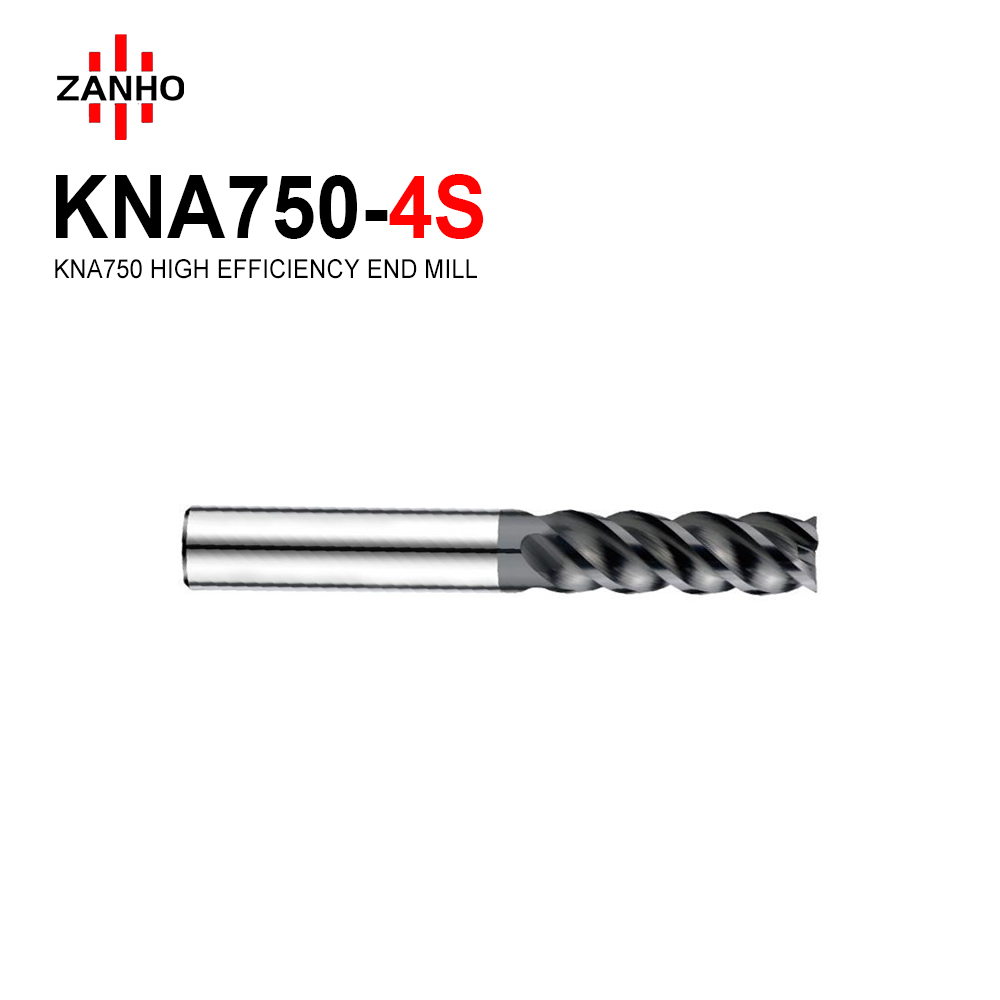

KNA750-4S-SQUARE

  • Type: 4-Flute Carbide (AlCrN Coated)
  • Performance: 45° Helix for smooth milling
  • Hardness: Up to 48HRC, steel/stainless steel, carbide iron
  • Feature: High-speed side milling & slotting

[ZANHO Factory Direct - High Precision]

Categories:
Learn More
Download PDF
Description
  • Type: 4-Flute Carbide (AlCrN Coated)
  • Performance: 45° Helix for smooth milling
  • Hardness: Up to 48HRC, steel/stainless steel, carbide iron
  • Feature: High-speed side milling & slotting

[ZANHO Factory Direct - High Precision]

订货号 Order Number 规格 Specification 刀径 D 刃长 L1 柄径 D1 总长 L
KNA750-4S-01003 D1*D4*50L*4F 1 3 4 50
KNA750-4S-61003 D1*D6*50L*4F 1 3 6 50
KNA750-4S-01505 D1.5*D4*50L*4F 1.5 5 4 50
KNA750-4S-61505 D1.5*D6*50L*4F 1.5 5 6 50
KNA750-4S-02006 D2*D4*50L*4F 2 6 4 50
KNA750-4S-62006 D2*D6*50L*4F 2 6 6 50
KNA750-4S-02507 D2.5*D4*50L*4F 2.5 8 4 50
KNA750-4S-62507 D2.5*D6*50L*4F 2.5 8 6 50
KNA750-4S-33009 D3*D3*50L*4F 3 9 3 50
KNA750-4S-03009 D3*D4*50L*4F 3 9 4 50
KNA750-4S-63009 D3*D6*50L*4F 3 9 6 50
KNA750-4S-03511 D3.5*D4*50L*4F 3.5 11 4 50
KNA750-4S-04012 D4*D4*50L*4F 4 12 4 50
KNA750-4S-64012 D4*D6*50L*4F 4 12 6 50
KNA750-4S-55013 D5*D5*50L*4F 5 13 5 50
KNA750-4S-05015 D5*D6*50L*4F 5 13 6 50
KNA750-4S-06015 D6*D6*50L*4F 6 15 6 50
KNA750-4S-06018 D6*D6*50L*4F 6 18 6 50
KNA750-4S-08020 D8*D8*60L*4F 8 20 8 60
KNA750-4S-08024 D8*D8*60L*4F 8 24 8 60
KNA750-4S-10025 D10*D10*75L*4F 10 25 10 75
KNA750-4S-10030 D10*D10*75L*4F 10 30 10 75
KNA750-4S-12030 D12*D12*75L*4F 12 30 12 75
KNA750-4S-12036 D12*D12*75L*4F 12 36 12 75
KNA750-4S-14045 D14*D14*100L*4F 14 45 14 100
KNA750-4S-16045 D16*D16*100L*4F 16 45 16 100
KNA750-4S-18045 D18*D18*100L*4F 18 45 18 100
KNA750-4S-20045 D20*D20*100L*4F 20 45 20 100
Long Overall Length
KNA750-4S-01003 D1*D4*50L*4F 1 3 4 50
KNA750-4S-61003 D1*D6*50L*4F 1 3 6 50
KNA750-4S-01505 D1.5*D4*50L*4F 1.5 5 4 50
KNA750-4S-61505 D1.5*D6*50L*4F 1.5 5 6 50
KNA750-4S-02006 D2*D4*50L*4F 2 6 4 50
KNA750-4S-62006 D2*D6*50L*4F 2 6 6 50
KNA750-4S-02507 D2.5*D4*50L*4F 2.5 8 4 50
KNA750-4S-62507 D2.5*D6*50L*4F 2.5 8 6 50
KNA750-4S-33009 D3*D3*50L*4F 3 9 3 50
KNA750-4S-03009 D3*D4*50L*4F 3 9 4 50
KNA750-4S-63009 D3*D6*50L*4F 3 9 6 50
KNA750-4S-03511 D3.5*D4*50L*4F 3.5 11 4 50
KNA750-4S-04012 D4*D4*50L*4F 4 12 4 50
KNA750-4S-64012 D4*D6*50L*4F 4 12 6 50
KNA750-4S-55013 D5*D5*50L*4F 5 13 5 50
KNA750-4S-05015 D5*D6*50L*4F 5 13 6 50
KNA750-4S-06015 D6*D6*50L*4F 6 15 6 50
KNA750-4S-06018 D6*D6*50L*4F 6 18 6 50
KNA750-4S-08020 D8*D8*60L*4F 8 20 8 60
KNA750-4S-08024 D8*D8*60L*4F 8 24 8 60
KNA750-4S-10025 D10*D10*75L*4F 10 25 10 75
KNA750-4S-10030 D10*D10*75L*4F 10 30 10 75
KNA750-4S-12030 D12*D12*75L*4F 12 30 12 75
KNA750-4S-12036 D12*D12*75L*4F 12 36 12 75
KNA750-4S-14045 D14*D14*100L*4F 14 45 14 100
KNA750-4S-16045 D16*D16*100L*4F 16 45 16 100
KNA750-4S-18045 D18*D18*100L*4F 18 45 18 100
KNA750-4S-20045 D20*D20*100L*4F 20 45 20 100
