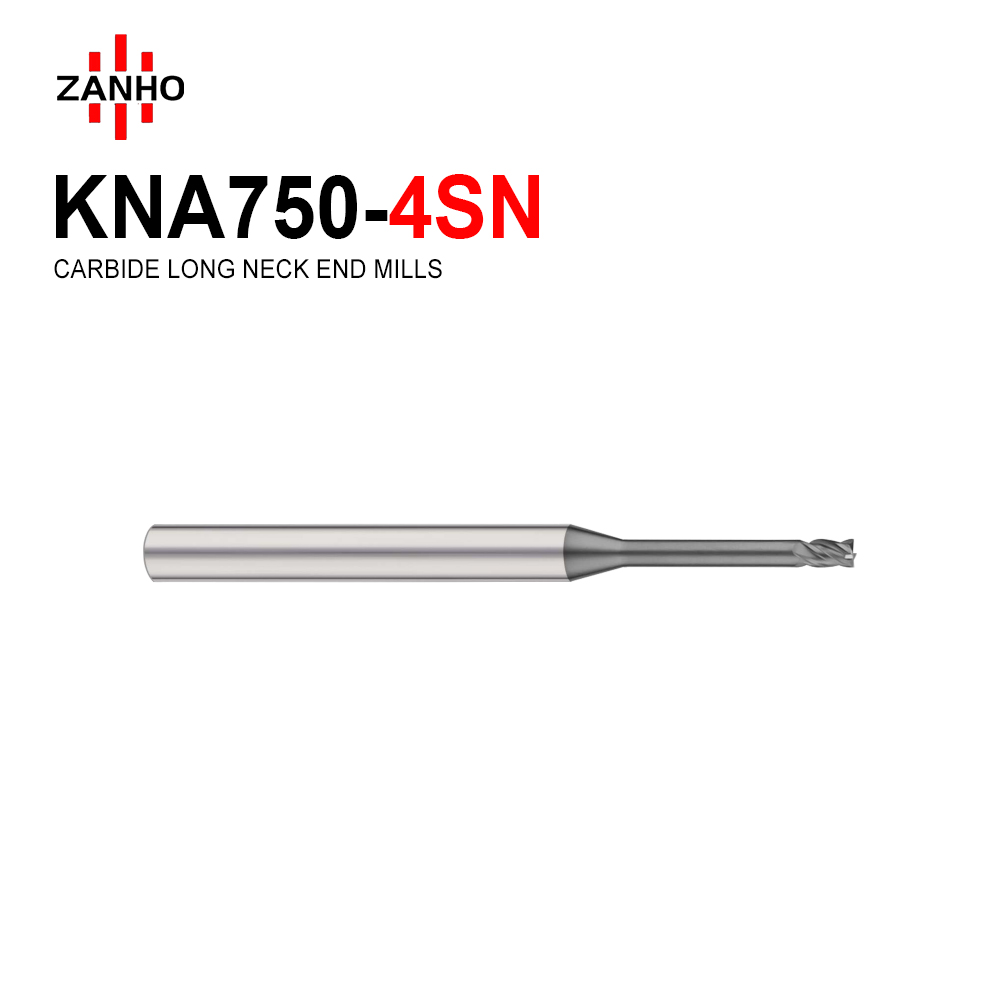

KNA750-4SN

  • Elite Deep Reach: Specifically engineered with a Long Neck design for ultra-precise Deep-Pocket and Narrow-Slot milling where standard tools cannot reach.
  • Enhanced Stability: 4-flute design provides maximum tool rigidity and a superior surface finish, ideal for fine finishing in hardened steel.
  • Interference-Free Design: Relieved neck diameter ensures smooth machining in complex 3D profiles without the risk of tool collision or vibration.
  • Extended Reach Options: Available in standard 50mm and 75mm Extended Shank (SNH) versions to meet various deep-cavity depth requirements.
Categories:
Learn More
Download PDF
Description

Order Number Specification D L2 D1 L
KNA750-4SN-01006 D1*6L*D4*50L*4F 1 6 4 50
KNA750-4SN-01008 D1*8L*D4*50L*4F 1 8 4 50
KNA750-4SN-01010 D1*10L*D4*50L*4F 1 10 4 50
KNA750-4SN-01012 D1*12L*D4*50L*4F 1 12 4 50
KNA750-4SN-01015 D1*15L*D4*50L*4F 1 15 4 50
KNA750-4SN-01020 D1*20L*D4*50L*4F 1 20 4 50
KNA750-4SN-01506 D1.5*6L*D4*50L*4F 1.5 6 4 50
KNA750-4SN-01508 D1.5*8L*D4*50L*4F 1.5 8 4 50
KNA750-4SN-01510 D1.5*10L*D4*50L*4F 1.5 10 4 50
KNA750-4SN-01512 D1.5*12L*D4*50L*4F 1.5 12 4 50
KNA750-4SN-01515 D1.5*15L*D4*50L*4F 1.5 15 4 50
KNA750-4SN-01520 D1.5*20L*D4*50L*4F 1.5 20 4 50
KNA750-4SN-02008 D2*8L*D4*50L*4F 2 8 4 50
KNA750-4SN-02010 D2*10L*D4*50L*4F 2 10 4 50
KNA750-4SN-02012 D2*12L*D4*50L*4F 2 12 4 50
KNA750-4SN-02015 D2*15L*D4*50L*4F 2 15 4 50
KNA750-4SN-02020 D2*20L*D4*50L*4F 2 20 4 50
KNA750-4SN-02025 D2*25L*D4*50L*4F 2 25 4 50
KNA750-4SN-02510 D2.5*10L*D4*50L*4F 2.5 10 4 50
KNA750-4SN-02512 D2.5*12L*D4*50L*4F 2.5 12 4 50
KNA750-4SN-02515 D2.5*15L*D4*50L*4F 2.5 15 4 50
KNA750-4SN-02520 D2.5*20L*D4*50L*4F 2.5 20 4 50
KNA750-4SN-03012 D3*12L*D4*50L*4F 3 12 4 50
KNA750-4SN-03015 D3*15L*D4*50L*4F 3 15 4 50
KNA750-4SN-03020 D3*20L*D4*50L*4F 3 20 4 50
KNA750-4SN-03025 D3*25L*D4*50L*4F 3 25 4 50
KNA750-4SN-62012 D2*12L*D6*50L*4F 2 12 6 50
KNA750-4SN-62016 D2*16L*D6*50L*4F 2 16 6 50
KNA750-4SN-62020 D2*20L*D6*50L*4F 2 20 6 50
KNA750-4SN-63012 D3*12L*D6*50L*4F 3 12 6 50
KNA750-4SN-63016 D3*16L*D6*50L*4F 3 16 6 50
KNA750-4SN-63020 D3*20L*D6*50L*4F 3 20 6 50
KNA750-4SNH-02015 D2*15L*D6*75L*4F 2 15 6 75
KNA750-4SNH-02020 D2*20L*D6*75L*4F 2 20 6 75
KNA750-4SNH-02025 D2*25L*D6*75L*4F 2 25 6 75
KNA750-4SNH-02030 D2*30L*D6*75L*4F 2 30 6 75
KNA750-4SNH-03015 D3*15L*D6*75L*4F 3 15 6 75
KNA750-4SNH-03020 D3*20L*D6*75L*4F 3 20 6 75
KNA750-4SNH-03025 D3*25L*D6*75L*4F 3 25 6 75
KNA750-4SNH-03030 D3*30L*D6*75L*4F 3 30 6 75
