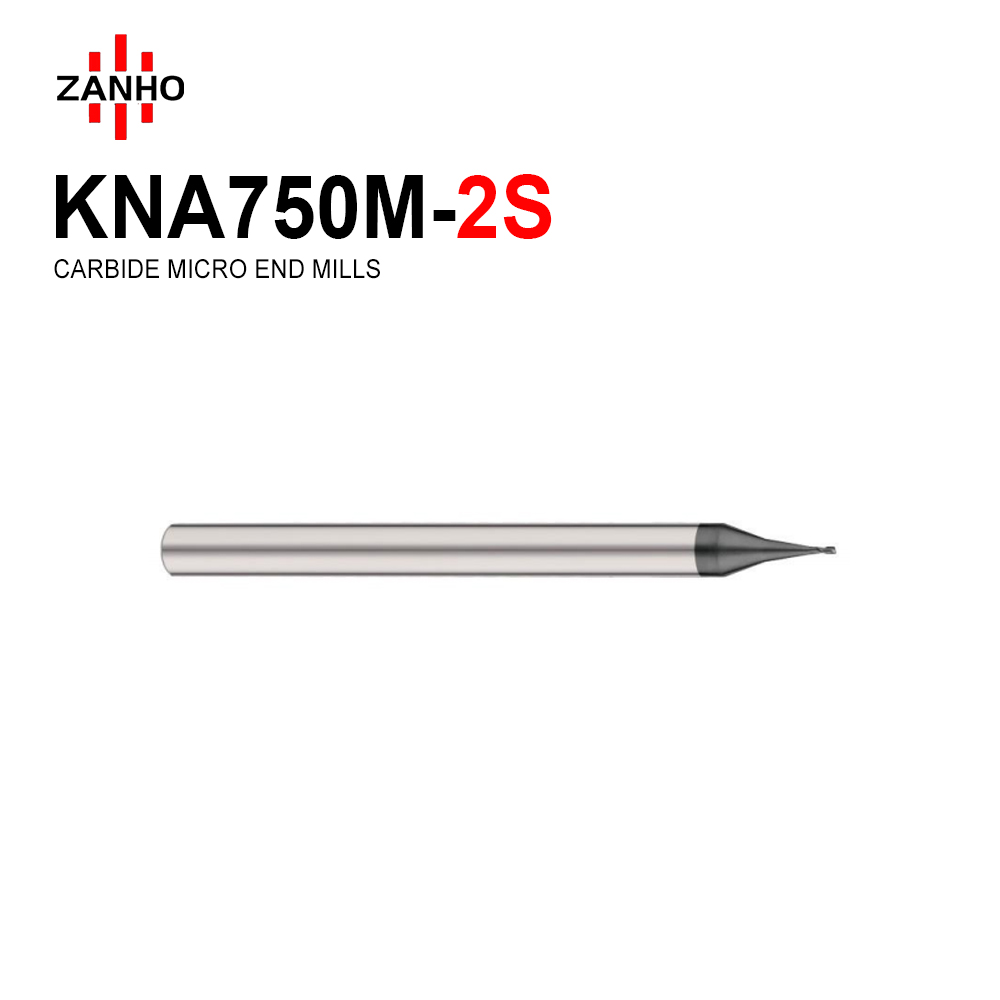

KNA750M-2S

  • Micro Precision Expert: Engineered for ultra-precise Micro Machining tasks, delivering exceptional accuracy for intricate details and small-diameter profiles.
  • Premium AlCrN Coating: Features advanced AlCrN Coating for superior thermal stability and wear resistance, maintaining edge integrity in demanding environments.
  • Ultra-Small Diameter Range: Available in precision-ground cutting diameters from 0.1mm to 0.9mm (D0.1-D0.9) to meet diverse micro-milling needs.
  • Stable Geometry: 30° Helix Angle provides the optimal balance between tool strength and efficient chip evacuation for small diameter applications.
Categories:
Learn More
Download PDF
Description
  • Micro Precision Expert: Engineered for ultra-precise Micro Machining tasks, delivering exceptional accuracy for intricate details and small-diameter profiles.
  • Premium AlCrN Coating: Features advanced AlCrN Coating for superior thermal stability and wear resistance, maintaining edge integrity in demanding environments.
  • Ultra-Small Diameter Range: Available in precision-ground cutting diameters from 0.1mm to 0.9mm (D0.1-D0.9) to meet diverse micro-milling needs.
  • Stable Geometry: 30° Helix Angle provides the optimal balance between tool strength and efficient chip evacuation for small diameter applications.

Order Number Specification D L1 D1 L
KNA750M-2S-00102 D0.1*D4*50L*2F 0.1 0.2 4 50
KNA750M-2S-00204 D0.2*D4*50L*2F 0.2 0.3 4 50
KNA750M-2S-00306 D0.3*D4*50L*2F 0.3 0.6 4 50
KNA750M-2S-00408 D0.4*D4*50L*2F 0.4 0.8 4 50
KNA750M-2S-00510 D0.5*D4*50L*2F 0.5 1 4 50
KNA750M-2S-00612 D0.6*D4*50L*2F 0.6 1.2 4 50
KNA750M-2S-00714 D0.7*D4*50L*2F 0.7 1.4 4 50
KNA750M-2S-00816 D0.8*D4*50L*2F 0.8 1.6 4 50
KNA750M-2S-00918 D0.9*D4*50L*2F 0.9 1.8 4 50
