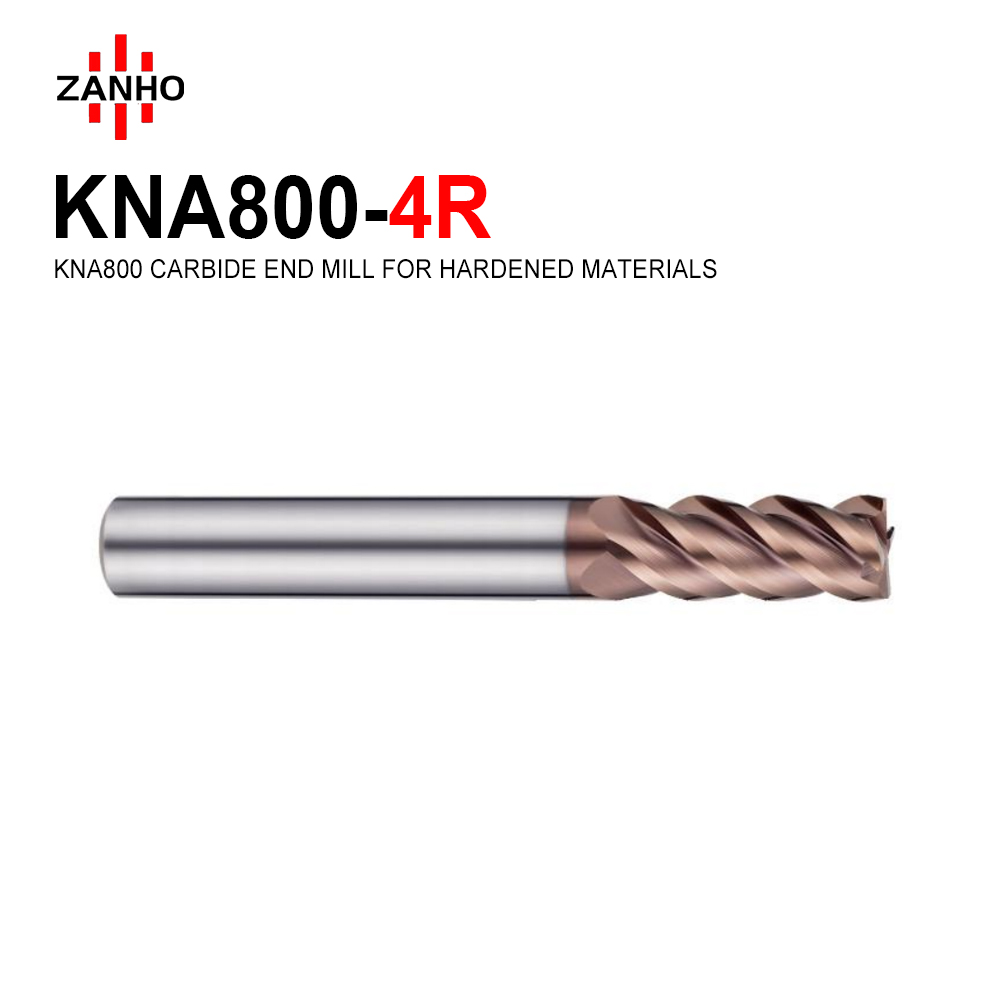

KNA800-4R-CORNER RADIUS

  • Type: 4-Flute Corner Radius (Bull Nose) for superior edge strength and durability.
  • Hardness: Specialized for high-hardness materials and hardened mold steel up to 65 HRC.
  • Coating: Advanced TIAISIN Coating providing exceptional heat resistance and tool life.
  • Design: 45° Helix Angle for stable cutting, reduced tool pressure, and excellent surface finish.
  • Substrate: Ultra-fine micro-grain carbide ensuring maximum toughness and anti-chipping performance.
  • Precision: Available with R0.2 to R1.0 radius for precise 3D contouring and mold cavity milling.
Categories:
Learn More
Download PDF
Description
  • Type: 4-Flute Corner Radius (Bull Nose) for superior edge strength and durability.
  • Hardness: Specialized for high-hardness materials and hardened mold steel up to 65 HRC.
  • Coating: Advanced TIAISIN Coating providing exceptional heat resistance and tool life.
  • Design: 45° Helix Angle for stable cutting, reduced tool pressure, and excellent surface finish.
  • Substrate: Ultra-fine micro-grain carbide ensuring maximum toughness and anti-chipping performance.
  • Precision: Available with R0.2 to R1.0 radius for precise 3D contouring and mold cavity milling.

订货号 Order Number 规格 Specification 刀径 D R角 R 刃长 L1 柄径 D1 总长 L
KNA800-4R-01002 D1R0.2*D4*50L*4F 1 0.2 3 4 50
KNA800-4R-01502 D1.5R0.2*D4*50L*4F 1.5 0.2 4 4 50
KNA800-4R-02002 D2R0.2*D4*50L*4F 2 0.2 5 4 50
KNA800-4R-02502 D2.5R0.2*D4*50L*4F 2.5 0.2 7 4 50
KNA800-4R-02505 D2.5R0.5*D4*50L*4F 2.5 0.5 7 4 50
KNA800-4R-03002 D3R0.2*D4*50L*4F 3 0.2 8 4 50
KNA800-4R-03005 D3R0.5*D4*50L*4F 3 0.5 8 4 50
KNA800-4R-03010 D3R1*D4*50L*4F 3 1 8 4 50
KNA800-4R-04002 D4R0.2*D4*50L*4F 4 0.2 10 4 50
KNA800-4R-04005 D4R0.5*D4*50L*4F 4 0.5 10 4 50
KNA800-4R-04010 D4R1*D4*50L*4F 4 1 10 4 50
KNA800-4R-05005 D5R0.5*D6*50L*4F 5 0.5 13 6 50
KNA800-4R-05010 D5R1*D6*50L*4F 5 1 13 6 50
KNA800-4R-06005 D6R0.5*D6*50L*4F 6 0.5 15 6 50
KNA800-4R-06010 D6R1*D6*50L*4F 6 1 15 6 50
KNA800-4R-08005 D8R0.5*D8*60L*4F 8 0.5 20 8 60
KNA800-4R-08010 D8R1*D8*60L*4F 8 1 20 8 60
KNA800-4R-10005 D10R0.5*D10*75L*4F 10 0.5 25 10 75
KNA800-4R-10010 D10R1*D10*75L*4F 10 1 25 10 75
KNA800-4R-12005 D12R0.5*D12*75L*4F 12 0.5 30 12 75
KNA800-4R-12010 D12R1*D12*75L*4F 12 1 30 12 75
KNA800-4RH-04005 D4R0.5*D4*75L*4F 4 0.5 10 4 75
KNA800-4RH-04005A D4R0.5*D4*100L*4F 4 0.5 20 4 100
KNA800-4RH-04010 D4R1*D4*75L*4F 4 1 10 4 75
KNA800-4RH-04010A D4R1*D4*100L*4F 4 1 20 4 100
KNA800-4RH-06005 D6R0.5*D6*75L*4F 6 0.5 15 6 75
KNA800-4RH-06005A D6R0.5*D6*100L*4F 6 0.5 24 6 100
KNA800-4RH-06010 D6R1*D6*75L*4F 6 1 15 6 75
KNA800-4RH-06010A D6R1*D6*100L*4F 6 1 24 6 100
KNA800-4RH-08005 D8R0.5*D8*75L*4F 8 0.5 20 8 75
KNA800-4RH-08005A D8R0.5*D8*100L*4F 8 0.5 32 8 100
KNA800-4RH-08010 D8R1*D8*75L*4F 8 1 20 8 75
KNA800-4RH-08010A D8R1*D8*100L*4F 8 1 32 8 100
KNA800-4RH-10005 D10R0.5*D10*100L*4F 10 0.5 25 10 100
KNA800-4RH-10010 D10R1*D10*100L*4F 10 1 25 10 100
KNA800-4RH-12005 D12R0.5*D12*100L*4F 12 0.5 30 12 100
KNA800-4RH-12010 D12R1*D12*100L*4F 12 1 30 12 100
