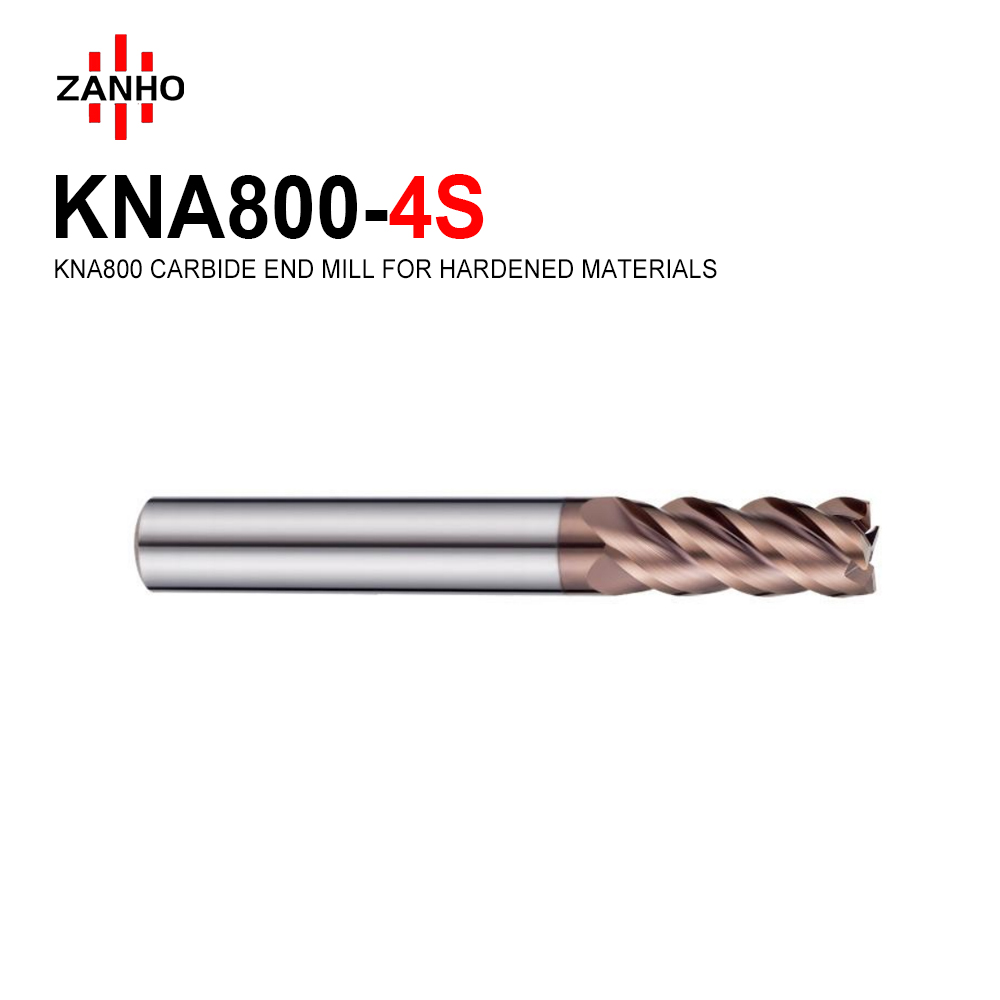

KNA800-4S-SQUARE

  • Specialty: Precision-engineered for Hardened Mold Steel and extreme-hardness materials.
  • Hardness: Capable of stable and efficient machining for workpieces up to 65 HRC.
  • Design: 45° Helix Angle ensures stable cutting forces and superior surface finish in hard metals.
  • Material: Ultra-fine micro-grain carbide substrate for maximum edge strength and anti-chipping performance.
  • Application: Ideal for high-speed CNC machining in mold making and hardened component processing.
Categories:
Learn More
Download PDF
Description



订货号 Order Number 规格 Specification 刀径 D 刃长 L1 柄径 D1 总长 L
KNA800-4S-01003 D1*D4*50L*4F 1 3 4 50
KNA800-4S-01504 D1.5*D4*50L*4F 1.5 4 4 50
KNA800-4S-02006 D2*D4*50L*4F 2 6 4 50
KNA800-4S-02508 D2.5*D4*50L*4F 2.5 8 4 50
KNA800-4S-33008 D3*D3*50L*4F 3 8 3 50
KNA800-4S-03008 D3*D4*50L*4F 3 8 4 50
KNA800-4S-03510 D3.5*D4*50L*4F 3.5 10 4 50
KNA800-4S-04011 D4*D4*50L*4F 4 11 4 50
KNA800-4S-05013 D5*D6*50L*4F 5 13 6 50
KNA800-4S-06016 D6*D6*50L*4F 6 16 6 50
KNA800-4S-08020 D8*D8*60L*4F 8 20 8 60
KNA800-4S-10025 D10*D10*75L*4F 10 25 10 75
KNA800-4S-12030 D12*D12*75L*4F 12 30 12 75
KNA800-4S-14035 D14*D14*100L*4F 14 35 14 100
KNA800-4S-16045 D16*D16*100L*4F 16 45 16 100
KNA800-4S-18045 D18*D18*100L*4F 18 45 18 100
KNA800-4S-20045 D20*D20*100L*4F 20 45 20 100
KNA800-4SH-04016 D4*D4*75L*4F 4 16 4 75
KNA800-4SH-04020A D4*D4*100L*4F 4 20 4 100
KNA800-4SH-05020 D5*D6*75L*4F 5 20 5 75
KNA800-4SH-06024 D6*D6*75L*4F 6 24 6 75
KNA800-4SH-06030A D6*D6*100L*4F 6 30 6 100
KNA800-4SH-08032 D8*D8*75L*4F 8 32 8 75
KNA800-4SH-08032A D8*D8*100L*4F 8 32 8 100
KNA800-4SH-10040 D10*D10*100L*4F 10 40 10 100
KNA800-4SH-10025A D10*D10*150L*4F 10 25 10 150
KNA800-4SH-12050 D12*D12*100L*4F 12 50 12 100
KNA800-4SH-12030A D12*D12*150L*4F 12 30 12 150
KNA800-4SH-14040 D14*D14*150L*4F 14 40 14 150
KNA800-4SH-16050 D16*D16*150L*4F 16 50 50 150
KNA800-4SH-18050 D18*D18*150L*4F 18 50 50 150
KNA800-4SH-20055 D20*D20*150L*4F 20 55 55 150
