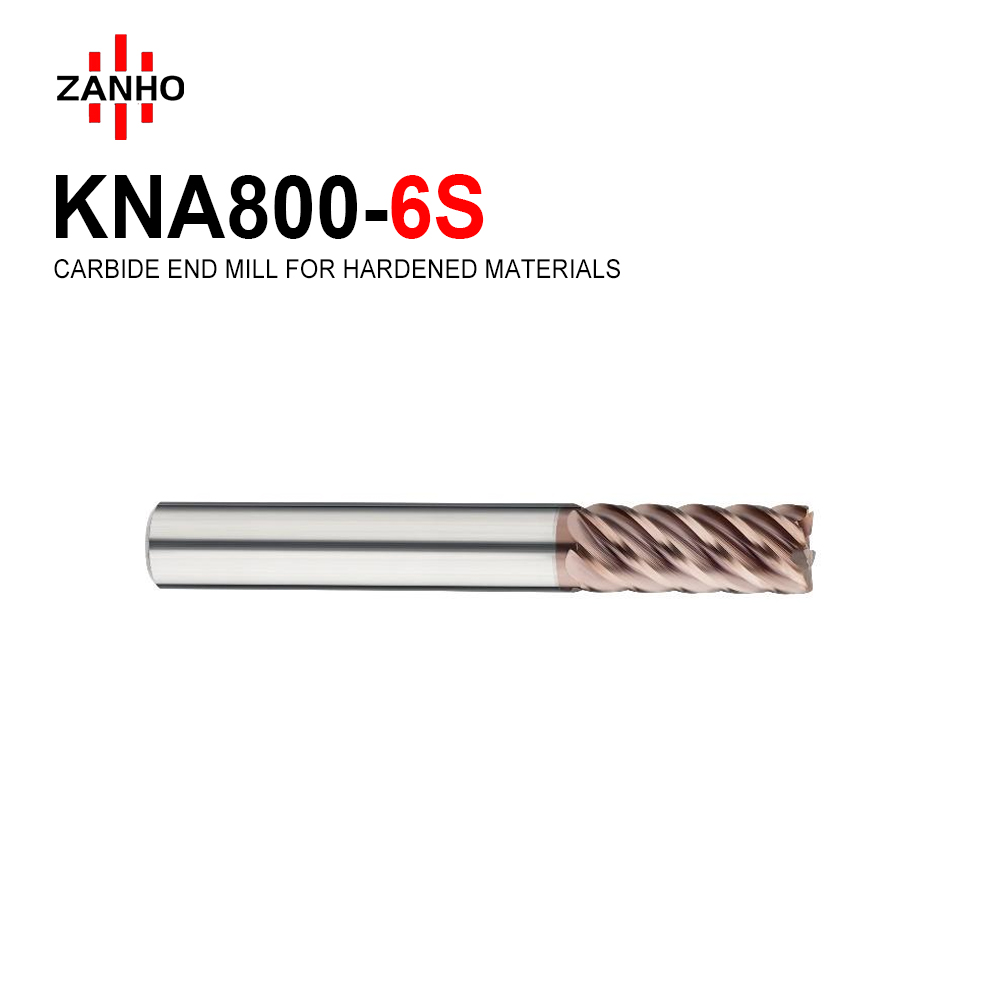

KNA800-6S

  • Elite Finishing: 6-Flute Design provides maximum rigidity and high feed rates, delivering an exceptional surface finish and high accuracy in hard materials.
  • Extreme Hardness: Specifically optimized for high-speed machining of workpieces up to 65 HRC (Heat-treated Steel, SKD11, H13).
  • High-Heat Protection: TiAlSiN (TIAISIN) Nano-Coating ensures extreme thermal stability, making it ideal for high-speed dry cutting operations.
  • Superior Stability: 45° High Helix Angle facilitates stable, low-vibration cutting and efficient chip removal in deep-pocket finishing.
Categories:
Learn More
Download PDF
Description
  • Elite Finishing: 6-Flute Design provides maximum rigidity and high feed rates, delivering an exceptional surface finish and high accuracy in hard materials.
  • Extreme Hardness: Specifically optimized for high-speed machining of workpieces up to 65 HRC (Heat-treated Steel, SKD11, H13).
  • High-Heat Protection: TiAlSiN (TIAISIN) Nano-Coating ensures extreme thermal stability, making it ideal for high-speed dry cutting operations.
  • Superior Stability: 45° High Helix Angle facilitates stable, low-vibration cutting and efficient chip removal in deep-pocket finishing.

Order Number Specification D L1 D1 L
KNA800-6S-06018 D6*18H*D6*50L*6F 6 18 6 50
KNA800-6S-08024 D8*20H*D8*60L*6F 8 20 8 60
KNA800-6S-10030 D10*30H*D10*75L*6F 10 30 10 75
KNA800-6S-12035 D12*32H*D12*75L*6F 12 32 12 75
KNA800-6S-16045 D16*40H*D16*100L*6F 16 40 16 100
KNA800-6S-20045 D20*45H*D20*100L*6F 20 45 20 100
KNA800-6SH-06024 D6*24H*D6*75L*6F 6 24 6 75
KNA800-6SH-08032 D8*32H*D8*75L*6F 8 32 8 75
KNA800-6SH-10040 D10*40H*D10*100L*6F 10 40 10 100
KNA800-6SH-12045 D12*45H*D12*100L*6F 12 45 12 100
KNA800-6SH-16064 D16*64H*D16*150L*6F 16 64 16 150
KNA800-6SH-20075 D20*75H*D20*150L*6F 20 75 20 150
