KNUX-R/L

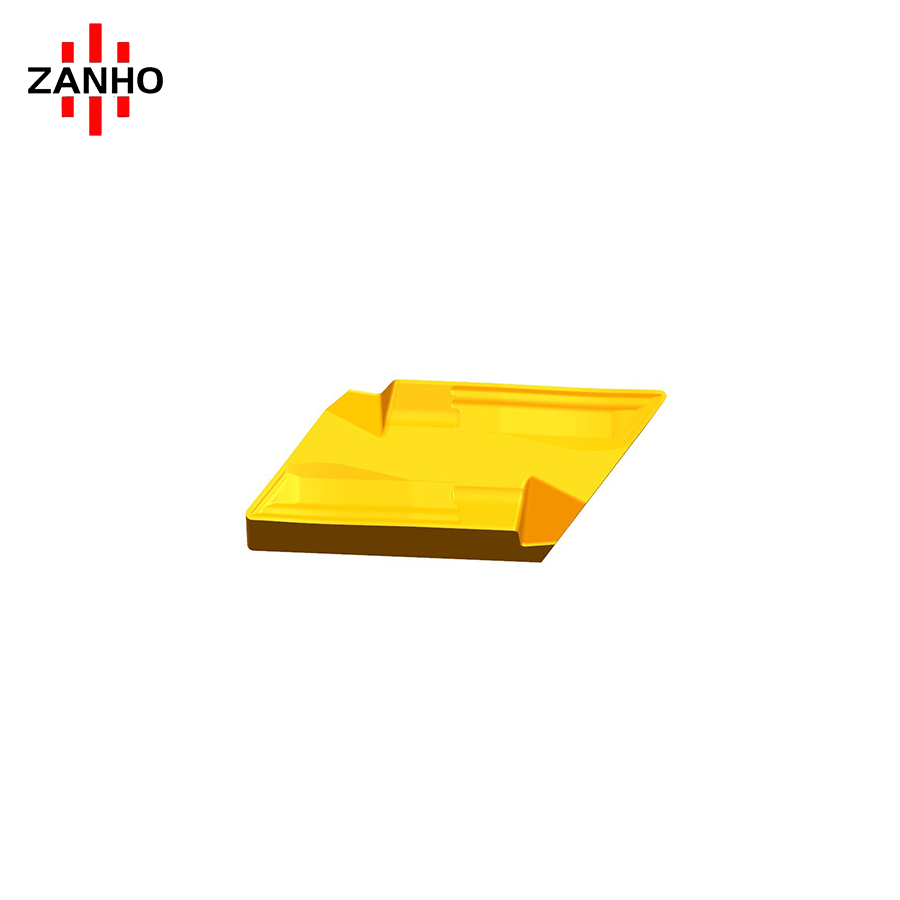

ZANHO KNUX 1604 series is a specialized Parallelogram turning insert engineered for Semi-finishing to Medium Machining of steel. Featuring an optimized chipbreaker, it delivers a perfect balance between edge strength and light cutting performance. Available in Left-hand (L) and Right-hand (R) versions, it ensures stable chip evacuation and reduced vibration, making it ideal for profiling and continuous OD turning even on machines with standard rigidity.
Categories:
Learn More
Download PDF
Description

Key Performance & Features

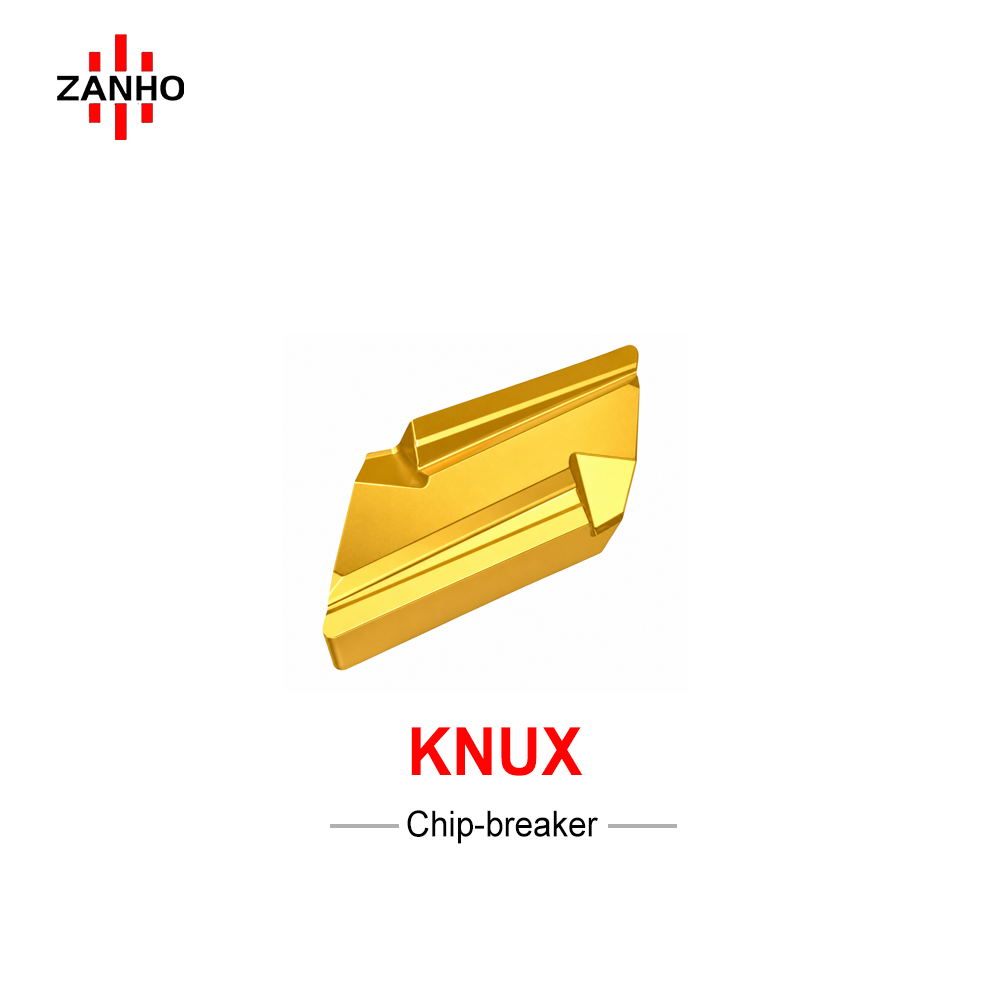

  • Specialized #11 Chipbreaker: Optimized for stable chip control across a large depth-of-cut range (ap 1.5-5.0mm), effectively preventing chip nesting under medium loads.
  • L/R Directional Design: Fully matched Left-hand and Right-hand inserts suitable for various tool holder orientations, enhancing versatility in OD profiling and contour turning.
  • Optimized Nose Radii: Choose R0.5 for superior surface finish or R1.0 for enhanced edge strength and higher feed capabilities.
  • Vibration Resistance: The refined geometry reduces cutting resistance, allowing for stable machining even on equipment with moderate rigidity.
  • Steel Machining Focus: Best suited for continuous to slightly interrupted semi-finishing of carbon and alloy steels.

Technical Specifications

Model Feed (f) mm/r Cut Depth (ap) mm
KNUX 160405L11 0.15 - 0.35 1.5 - 5.0
KNUX 160405R11 0.15 - 0.35 1.5 - 5.0
KNUX 160410R11 0.21 - 0.45 2.0 - 5.0

Looking for High-Reliability Turning Solutions?

ZANHO specialized carbide inserts are designed to boost your CNC productivity. Contact us for bulk pricing, OEM inquiries, or technical support for your specific machining materials.
