LOGU030310ER-ST

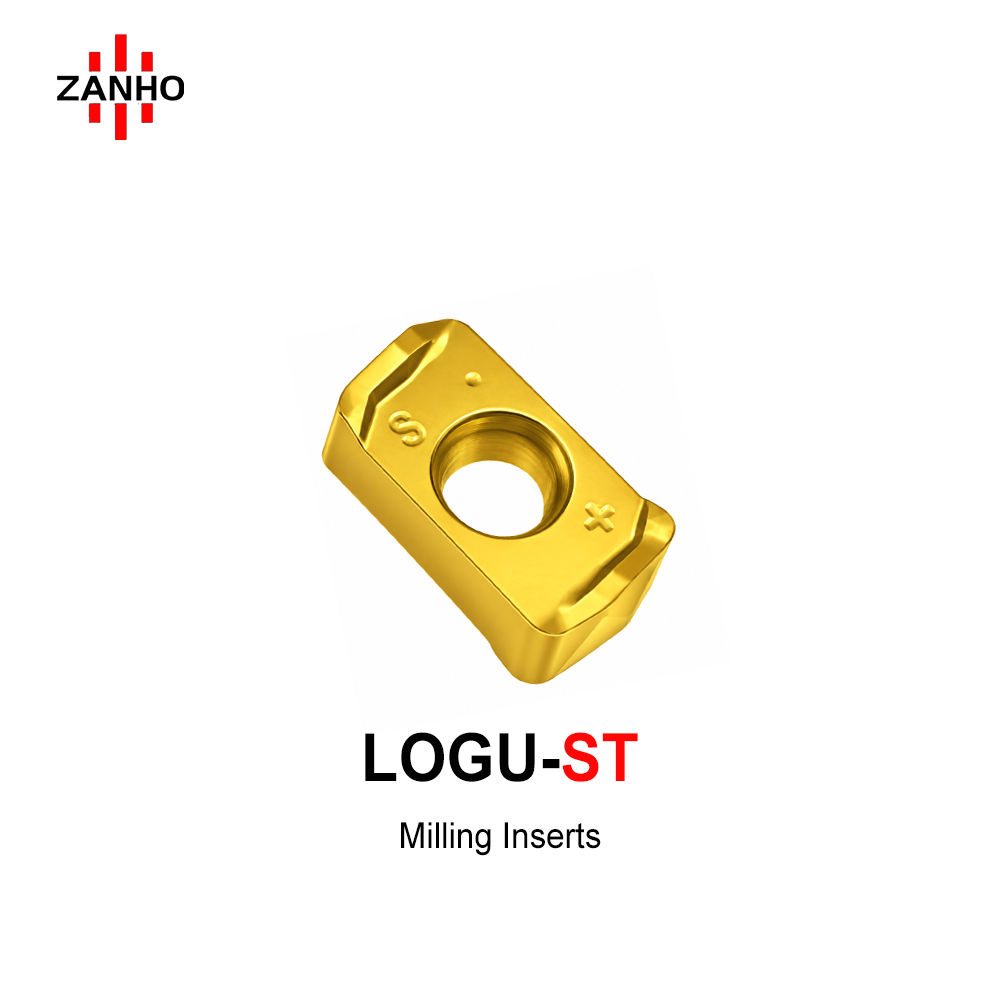

ZANHO LOGU030310ER-ST is a high-efficiency double-sided 4-edge milling insert, specifically designed for MFH-Mini style high-feed cutters. Featuring a positive rake ST chipbreaker, it delivers low cutting resistance and excellent vibration suppression, making it ideal for small-diameter cutters and long-overhang applications. Optimized for Steel (P), Stainless Steel (M), and Cast Iron (K), it provides stable chip breaking and maximum economy for face milling roughing with a max Ap of 1.0mm.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • 4 Effective Cutting Corners: Double-sided structure provides four precision cutting edges per insert, significantly enhancing tool economy and production efficiency.
  • Low Cutting Resistance: Positive rake geometry lowers the axial cutting load, making it suitable for machines with limited rigidity or challenging long-overhang setups.
  • Optimized High-Feed Chipbreaking: The ST chipbreaker is specifically tuned to manage chip curling and fragmentation at high feed rates, preventing chip re-cutting and tool entanglement.
  • Centering & Stability: Designed for stable roughing operations in face milling, offering a maximum depth of cut (Ap) of approximately 1.0mm with excellent process security.
  • System Compatibility: Seamlessly fits MFH-Mini high-feed milling systems, allowing for a universal stock solution across Steel, Stainless Steel, and Cast Iron.

Dimensional Specifications (mm)

Model A (mm) T (mm) Φd (mm) W (mm) Re (mm)
LOGU030310ER-ST 6.20 3.96 3.45 11.9 1.0

Optimize Your High-Feed Milling

ZANHO LOGU series is the ideal cost-saving solution for MFH-Mini systems. Contact us for wholesale B2B inquiries and technical application support.
