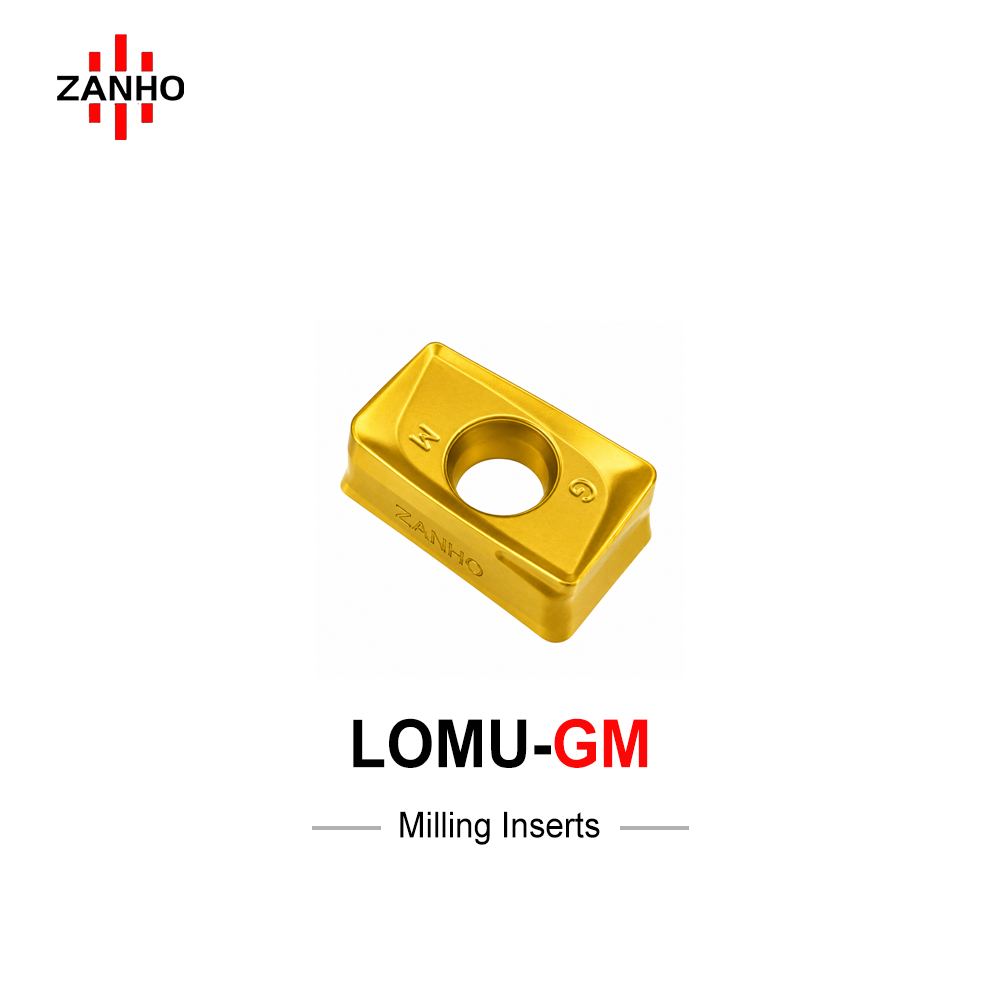

LOMU-GM

ZANHO LOMU100408ER-GM is a highly versatile milling insert from the MEW series, engineered for 90° square shoulder and face milling across Steel, Cast Iron, Stainless Steel, and High-Temp Alloys. Combining a negative substrate with a positive rake cutting action, it significantly reduces spindle load and vibration, making it ideal for low-power machines or long-overhang setups. With 4 precision edges and a 1.7mm integrated wiper, it delivers exceptional surface quality and cost-efficiency for medium-load industrial milling.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Universal Multi-Material Application: The GM chipbreaker is optimized for medium-load milling in Steel, Cast Iron, Stainless Steel, and Super Alloys, reducing tool inventory.
  • Hybrid Negative-Positive Design: Utilizes a negative insert body for maximum strength while achieving a positive rake cutting effect to minimize energy consumption and cutting heat.
  • Optimized for Low Rigidity: Excellent performance on low-power machines and tools with large overhangs due to its low-resistance helical edge geometry.
  • 1.7mm Precision Wiper: Integrated wide wiper edge ensures superior 90° shoulder verticality and a high-quality surface finish on the workpiece side wall.
  • 4-Edge Economic Efficiency: Features four usable cutting edges per insert, delivering stable chip control and high cost-effectiveness for B2B wholesale buyers.

Dimensional Specifications (mm)

Model L (mm) W1/I.C (mm) S (mm) D1 (Hole) RE (Radius) BS (Wiper) Edges
LOMU100408ER-GM 10.9 6.6 4.0 3.4 0.8 1.7 4

Universal Solution for 90° Shoulders

ZANHO LOMU100408ER-GM delivers precision and reliability across diverse materials. Contact us for bulk B2B inquiry and technical machining support.

Looking for the right specification, grade, or coating for your market?

Send us your requirements below. Our sales team will provide product recommendations, competitive pricing, and OEM options based on your needs. For distributors, wholesalers & importers — bulk order inquiries are welcome.

Fill in the form below and get your quotation.
