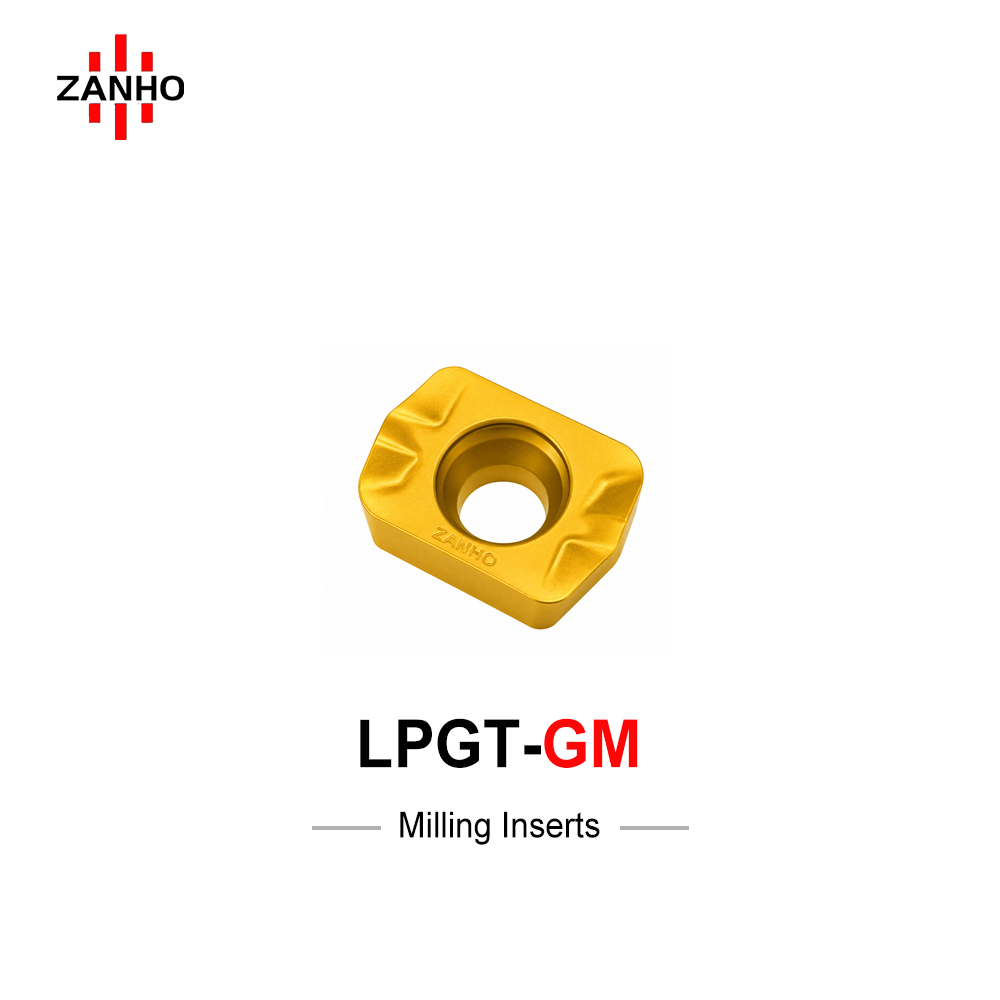

LPGT-GM

ZANHO LPGT010210ER-GM is a specialized micro-diameter high-feed milling insert designed for compatibility with MFH-Micro tool holders. Engineered for narrow-space roughing in Steel, Stainless Steel, Cast Iron, and Heat-Resistant Alloys, it features a low-resistance GM chipbreaker that effectively suppresses vibration and reduces cutting forces. This makes it a perfect choice for small-diameter cutters and low-power CNC machines. With its precision 2-edge design, it supports versatile operations including face milling, pocketing, ramping, and helical interpolation.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Optimized for Micro-Diameter: Specifically designed for ultra-small MFH-Micro series cutters, ideal for machining in confined areas and complex cavities.
  • Low-Resistance GM Geometry: The sharp, positive rake design minimizes cutting load and thermal generation, ensuring stable processing even on machines with standard rigidity.
  • Superior Vibration Control: Advanced edge structure suppresses harmonic vibration, resulting in better tool life and surface quality when using large overhangs.
  • Multi-Functional Machining: Exceptionally versatile for 3D milling tasks, including high-feed face milling, pocketing, ramping, and helical interpolation.
  • Universal Material Compatibility: A single GM chipbreaker excels in diverse materials, including Steel, Stainless Steel, Cast Iron, and high-temperature alloys.

Dimensional Specifications (mm)

Model W1 (IC) S (Thickness) D1 (Hole Dia) INSL (Length) RE (Radius) Edges
LPGT010210ER-GM 4.19 2.19 2.1 6.26 1.0 2

Precision Solution for Micro High-Feed Milling

ZANHO LPGT micro-inserts deliver efficiency in the tightest spaces. Contact us for bulk B2B inquiry and technical machining recommendations.
