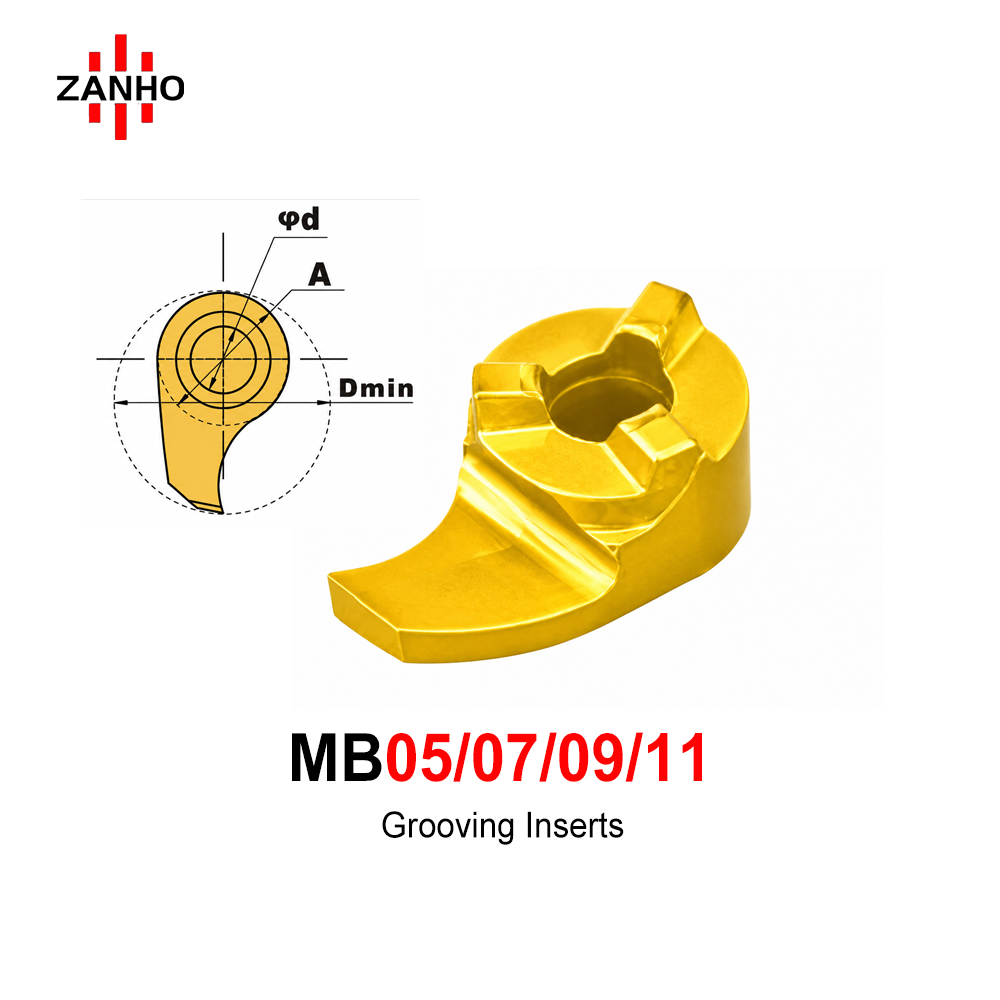

MB Internal Grooving Inserts

ZANHO MB series: Specialized "Comma-style" internal grooving inserts designed for extremely small bore diameters. Featuring a unique heteromorphic single-edge structure, these inserts minimize cutting resistance and optimize chip curling in closed environments (Dmin: 9.0mm - 20.0mm). Engineered for high-precision micro-bore slotting and profiling in steel and alloys with exceptional process stability and accuracy.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Micro-Bore Comma Geometry: Specialized heteromorphic single-edge structure allows entry into extremely small bore diameters where conventional tools fail.
  • Closed-Space Chip Control: Rake surface optimized for confined internal spaces, ensuring reliable chip curling and preventing packing in deep holes.
  • Enhanced Edge Toughness: Precision passivated (honed) edges provide superior resistance against chipping under weak machine rigidity conditions.
  • Stable Positioning Structure: Engineered for high-repeatability clamping in MB-series internal grooving tool holders, ensuring consistent slot width precision.
  • Full Radius Availability: Complete range of Full Radius versions (R = W/2) for high-accuracy hydraulic and profiling applications.

MB series Detailed Specifications (mm)

Designation (Right) Designation (Left) L A Dmin ød W B R
MB05GR100D09 MB05GL100D09 8.3 5.0 9.0 2.50 1.00 2.80 0.10
MB05GR150D09 MB05GL150D09 1.50 0.10
MB05GR200D09 MB05GL200D09 2.00 0.20
MB05GR250D09 MB05GL250D09 2.50 0.20
MB05GR300D09 MB05GL300D09 3.00 0.20
MB05GR100-R050D09 MB05GL100-R050D09 1.00 0.50
MB05GR150-R075D09 MB05GL150-R075D09 1.50 0.75
MB05GR200-R100D09 MB05GL200-R100D09 2.00 1.00
MB05GR250-R125D09 MB05GL250-R125D09 2.50 1.25
MB05GR300-R150D09 MB05GL300-R150D09 3.00 1.50
MB07GR100D12 MB07GL100D12 11.0 7.0 12.0 3.40 1.00 3.50 0.10
MB07GR150D12 MB07GL150D12 1.50 0.10
MB07GR200D12 MB07GL200D12 2.00 0.20
MB07GR250D12 MB07GL250D12 2.50 0.20
MB07GR300D12 MB07GL300D12 3.00 0.20
MB07GR100-R050D12 MB07GL100-R050D12 1.00 0.50
MB07GR150-R075D12 MB07GL150-R075D12 1.50 0.75
MB07GR200-R100D12 MB07GL200-R100D12 2.00 1.00
MB07GR250-R125D12 MB07GL250-R125D12 2.50 1.25
MB07GR300-R150D12 MB07GL300-R150D12 3.00 1.50
MB09GR100D17 MB09GL100D17 16.0 9.0 17.0 4.40 1.00 6.50 0.10
MB09GR150D17 MB09GL150D17 1.50 0.10
MB09GR200D17 MB09GL200D17 2.00 0.20
MB09GR250D17 MB09GL250D17 2.50 0.20
MB09GR300D17 MB09GL300D17 3.00 0.20
MB09GR100-R050D17 MB09GL100-R050D17 1.00 0.50
MB09GR150-R075D17 MB09GL150-R075D17 1.50 0.75
MB09GR200-R100D17 MB09GL200-R100D17 2.00 1.00
MB09GR250-R125D17 MB09GL250-R125D17 2.50 1.25
MB09GR300-R150D17 MB09GL300-R150D17 3.00 1.50
MB11GR100D20 MB11GL100D20 19.5 11.0 20.0 5.40 1.00 8.00 0.10
MB11GR150D20 MB11GL150D20 1.50 0.10
MB11GR200D20 MB11GL200D20 2.00 0.20
MB11GR250D20 MB11GL250D20 2.50 0.20
MB11GR300D20 MB11GL300D20 3.00 0.20
MB11GR350D20 MB11GL350D20 3.50 0.20
MB11GR400D20 MB11GL400D20 4.00 0.20
MB11GR100-R050D20 MB11GL100-R050D20 1.00 0.50
MB11GR150-R075D20 MB11GL150-R075D20 1.50 0.75
MB11GR200-R100D20 MB11GL200-R100D20 2.00 1.00
MB11GR250-R125D20 MB11GL250-R125D20 2.50 1.25
MB11GR300-R150D20 MB11GL300-R150D20 3.00 1.50
MB11GR350-R175D20 MB11GL350-R175D20 3.50 1.75
MB11GR400-R200D20 MB11GL400-R200D20 4.00 2.00

Micro-Precision Excellence for Small Bore CNC Slotting

ZANHO MB series provides the ultimate rigidity for extremely small internal grooving. Contact us for technical support and bulk B2B inquiry.

Looking for the right specification, grade, or coating for your market?

Send us your requirements below. Our sales team will provide product recommendations, competitive pricing, and OEM options based on your needs. For distributors, wholesalers & importers — bulk order inquiries are welcome.

Fill in the form below and get your quotation.
