MF80-M50

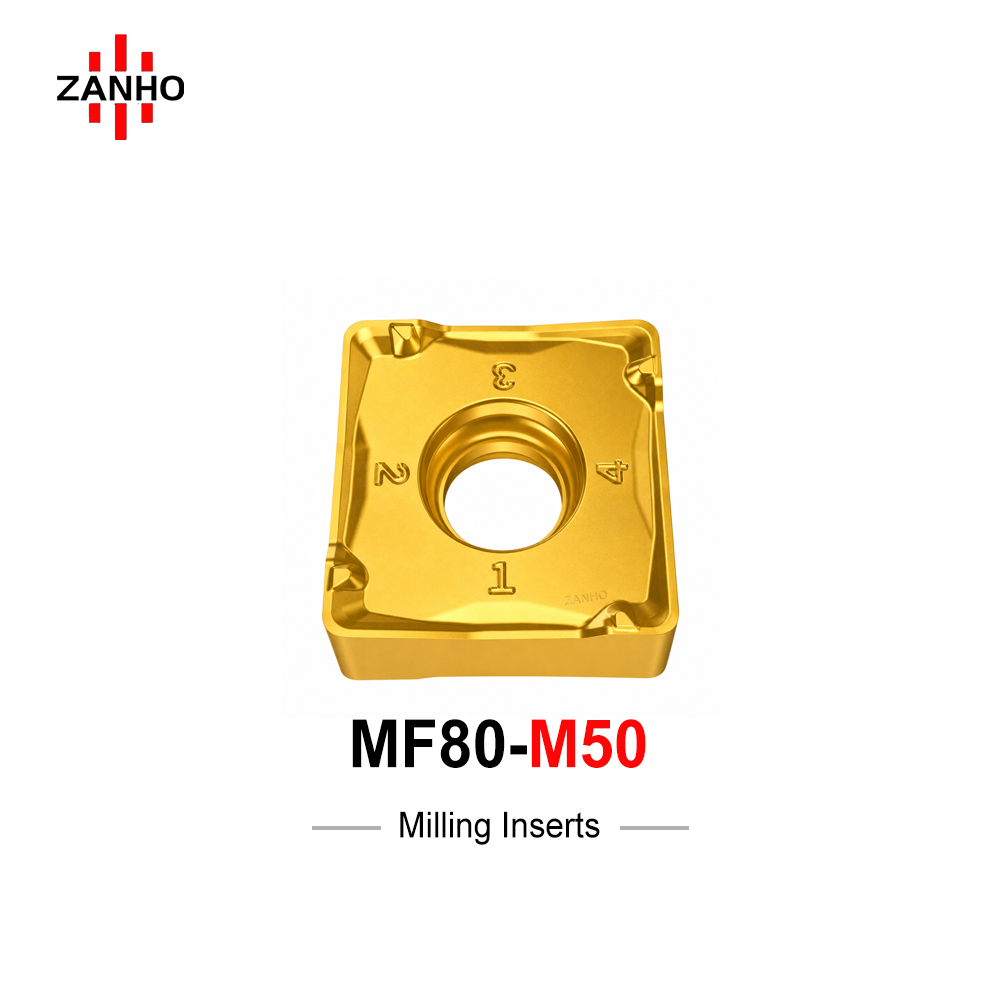

ZANHO MF80 130508M-M50 is a high-efficiency negative double-sided 8-edge milling insert, specifically designed for 89.5° lead angle machining. Featuring a sharp positive rake for light-cutting action and excellent chip fragmentation, it is ideal for both step and face milling applications. The 8-cutting edge structure delivers maximum economic value per insert. It is perfectly matched with ZANHO WFM89.5 series milling cutters (63mm to 125mm) for high-stability CNC production in steel and cast iron machining.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Double-Sided 8-Edge Economy: Utilizes 8 usable cutting edges per insert, significantly reducing tool costs in high-volume production.
  • 89.5° Lead Angle Precision: Specifically designed for 89.5-degree cutters to produce high-quality square shoulders and exceptional verticality.
  • Light Cutting Action: Sharp positive rake geometry reduces spindle torque and suppresses vibration, ensuring stable machining even on lighter machines.
  • Versatile Milling: Perfectly suited for both face milling and step milling, providing reliable chip evacuation in Steel and Cast Iron.

Insert Dimensional Specifications (mm)

Model d (IC) a (mm) t (Thickness) R (Radius) Edges
MF80 130508M-M50 13.0 1.75 5.55 0.8 8

Matching Milling Cutters (WFM89.5 Series)

Model (Cutter) Max AP (mm) Teeth DC (Dia) DCX Da L (Height) Interface
WFM89.5MF80-563A22R-13 10 5 63 42 22 40 A
WFM89.5MF80-680A27R-13 10 6 80 50 27 50 A
WFM89.5MF80-8100B32R-13 10 8 100 61 32 50 B
WFM89.5MF80-12125B40R-13 10 12 125 73 40 63 B

Complete Face Milling Solution

ZANHO MF80 series inserts and WFM89.5 cutters provide high stability and speed. Contact us for technical grade support and bulk B2B inquiry.
