MGGN-V

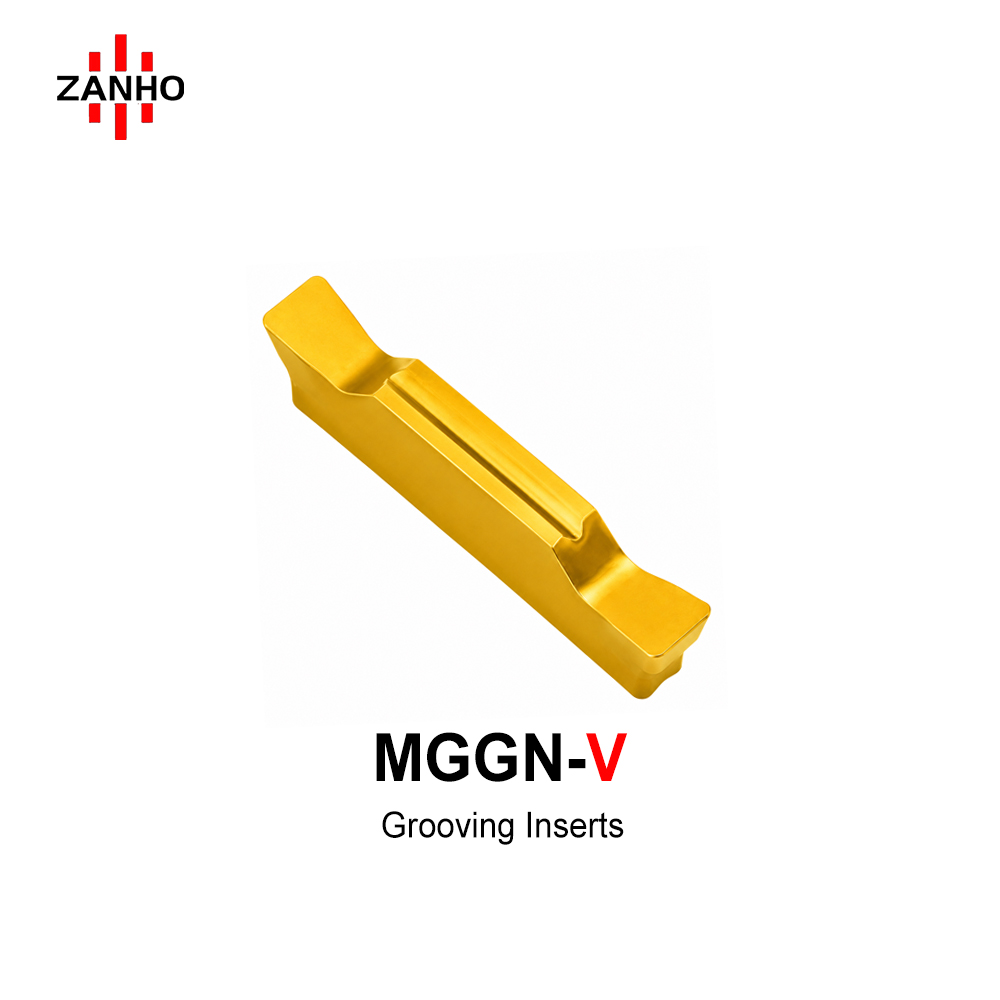

ZANHO MGGN series: High-efficiency double-headed parting and grooving inserts for CNC external machining. Featuring two effective cutting edges to maximize tool utilization and a specialized rake face with protruding guide ribs for mandatory chip curling. Engineered for light to medium-duty loads, these inserts offer exceptional stability and vibration reduction in external grooving and parting-off applications.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Double-Edged Efficiency: The double-headed design allows the insert to be flipped and reused if one edge is worn, effectively doubling tool life and reducing costs.
  • Protruding Guide Ribs: Specialized chipbreaker geometry with raised ribs forces chips to curl and break, preventing chip wrapping around the workpiece.
  • Honed Cutting Edges: Precision edge passivation treatment enhances chipping resistance and ensures stable performance under varying loads.
  • Enhanced Stability: Optimized rake surface reduces cutting resistance and suppresses vibration, delivering high surface quality in external grooving.
  • Press-Plate Clamping: Compatible with standard press-plate tool holders, ensuring secure positioning and high dimensional repeatability.

MGGN Specification Table (mm)

Designation L (Length) B (Width) d h R (Radius)
MGGN150-V 16 1.5 1.2 3.5 0.15
MGGN200-V 16 2.0 1.6 3.5 0.2
MGGN250-V 18.5 2.5 2.0 3.85 0.2
MGGN300-V 21 3.0 2.35 4.8 0.4
MGGN400-V 21 4.0 3.3 4.8 0.4
MGGN500-V 26 5.0 4.1 5.8 0.8
MGGN600-V 26 6.0 5.0 5.8 0.8

High-Precision External Parting & Grooving Solutions

ZANHO MGGN series delivers unbeatable value with double cutting edges. Contact us for bulk B2B orders.
