MGMN-DR

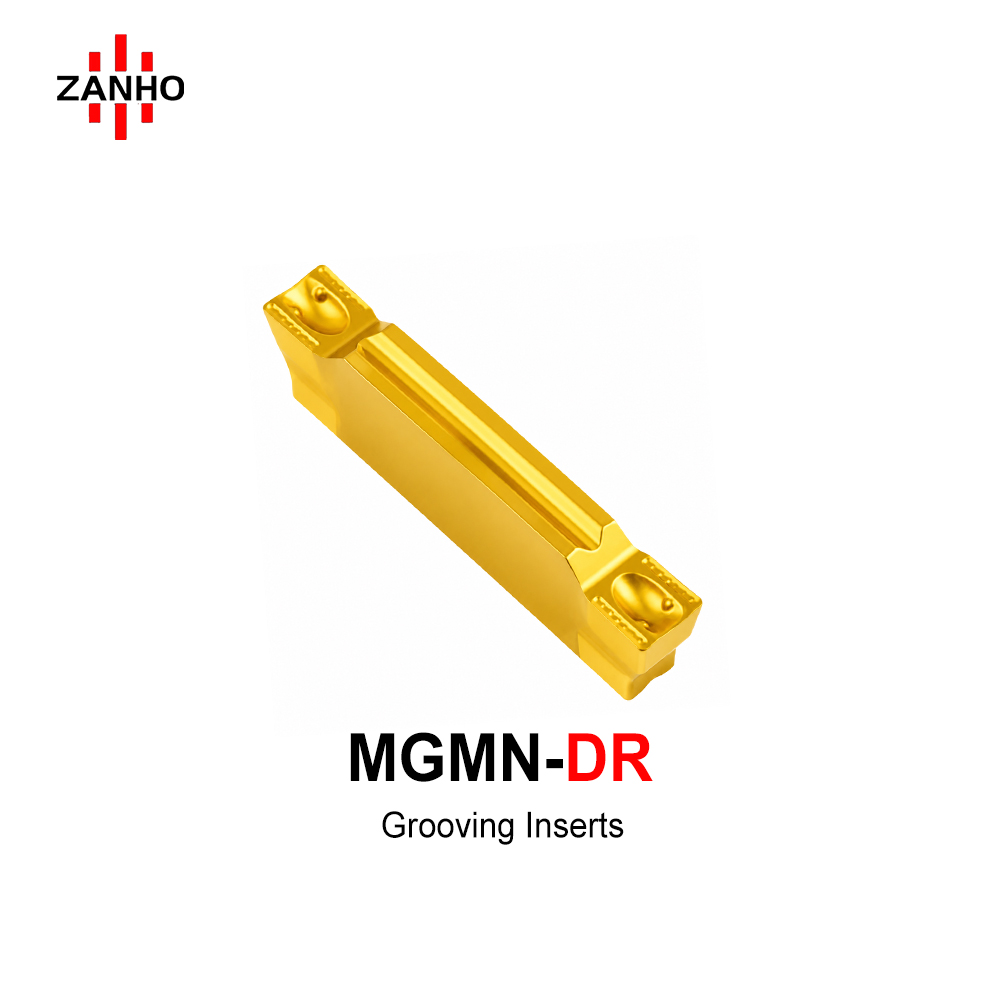

ZANHO MGMN-DR series: High-precision double-headed parting and grooving inserts featuring a unique spherical dimple chipbreaker geometry. Specifically engineered for external CNC applications requiring both radial grooving and transverse lateral feed machining. The specialized dimple structure ensures mandatory chip curling and reliable evacuation, while the double-edged design maximizes tool life. Perfect for light to medium-duty operations where superior surface finish and precise chip control are required.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Spherical Dimple Chipbreaker: Features a unique spherical dimple geometry at both ends, specifically designed to constrain chip formation and control curling during high-feed transverse (lateral) machining.
  • Lateral Feed Optimized: The specialized edge and rake geometry allow for efficient multi-directional machining, supporting both radial grooving and horizontal turning (横切).
  • Double-Edged Value: The symmetrical double-headed design doubles the cutting life per insert—simply flip to the fresh edge once the first side reaches its wear limit.
  • Honed Edge Durability: Precision edge passivation improves the toughness of the cutting tip, reducing the risk of chipping under medium-duty external loads.
  • Stable Press-Plate Clamping: Standard press-plate tool holder compatibility ensures high dimensional repeatability and rigid positioning in CNC production.

MGMN-DR Specification Table (mm)

Designation L (Length) B (Width) d h R (Radius)
MGMN150-DR 16 1.5 1.2 3.5 0.15
MGMN200-DR 16 2.0 1.6 3.5 0.2
MGMN250-DR 18.5 2.5 2.0 3.85 0.2
MGMN300-DR 21 3.0 2.35 4.8 0.4
MGMN400-DR 21 4.0 3.3 4.8 0.4
MGMN500-DR 26 5.0 4.1 5.8 0.8
MGMN600-DR 26 6.0 5.0 5.8 0.8

Advanced Transverse & Grooving Solutions

ZANHO MGMN-DR series delivers exceptional chip control in multi-directional turning. Contact us for bulk B2B inquiry.
