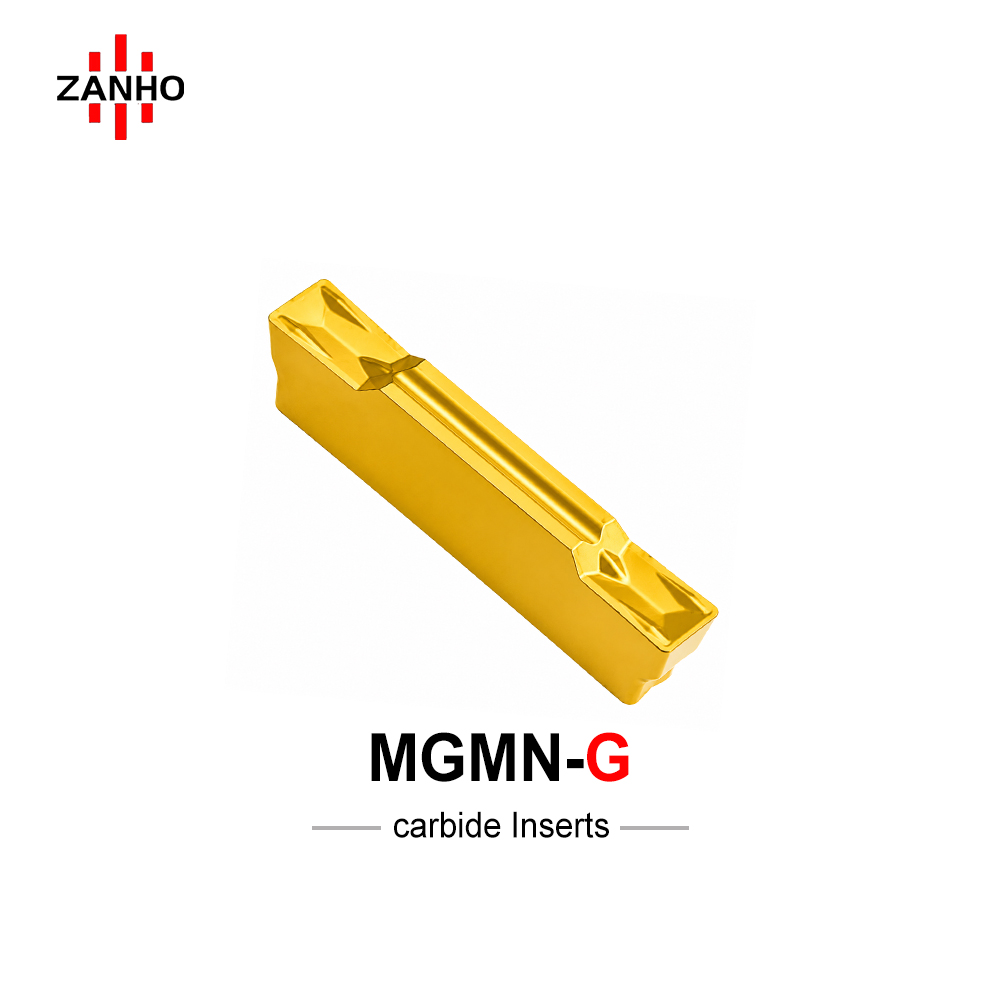

MGMN-G

ZANHO MGMN-G series: Double-sided flat head inserts specifically engineered for high-reliability parting-off and shallow external grooving. The specialized G-type chipbreaker geometry promotes effective chip shrinking and curling, minimizing friction and vibration at the final parting stage. Features precision-honed edges for semi-finishing and medium load CNC turning.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • G-Type Chipbreaker: Specialized geometry for parting-off operations, forcing chips to curl and shrink inward, preventing side-wall scratching and ensuring smooth evacuation.
  • Parting Stability: Optimized rake design reduces cutting resistance and suppresses vibration at the end of the parting cut, improving end-face flatness.
  • Double-Ended Economy: Symmetrical cutting edges allow both ends of the insert to be utilized, maximizing tool efficiency and reducing operating costs.
  • Reinforced Edge Treatment: Precision-honed and passivated cutting edges provide excellent resistance to chipping and impact during semi-finishing cycles.
  • Dimensional Precision: Strict manufacturing standards achieve W±0.05mm tolerance, ensuring consistent slot width and high repeatability.

Technical Specifications (mm)

Model Type Width (W±0.05) M Length (L) Radius (R) t S
MGMN 150-G 1.5 1.2 16.0 0.2 4.0 3.5
MGMN 200-G 2.0 1.6 16.0 0.2 4.0 3.5
MGMN 250-G 2.5 2.0 18.5 0.2 4.47 3.85
MGMN 300-G 3.0 2.35 21.0 0.3 5.65 4.8
MGMN 400-G 4.0 3.3 21.0 0.3 5.85 4.8

Reliable Parting-Off Solutions for CNC Lathes

ZANHO MGMN-G series maximizes productivity in high-volume parting and grooving. Contact us for bulk B2B inquiry and tool holder compatibility.
