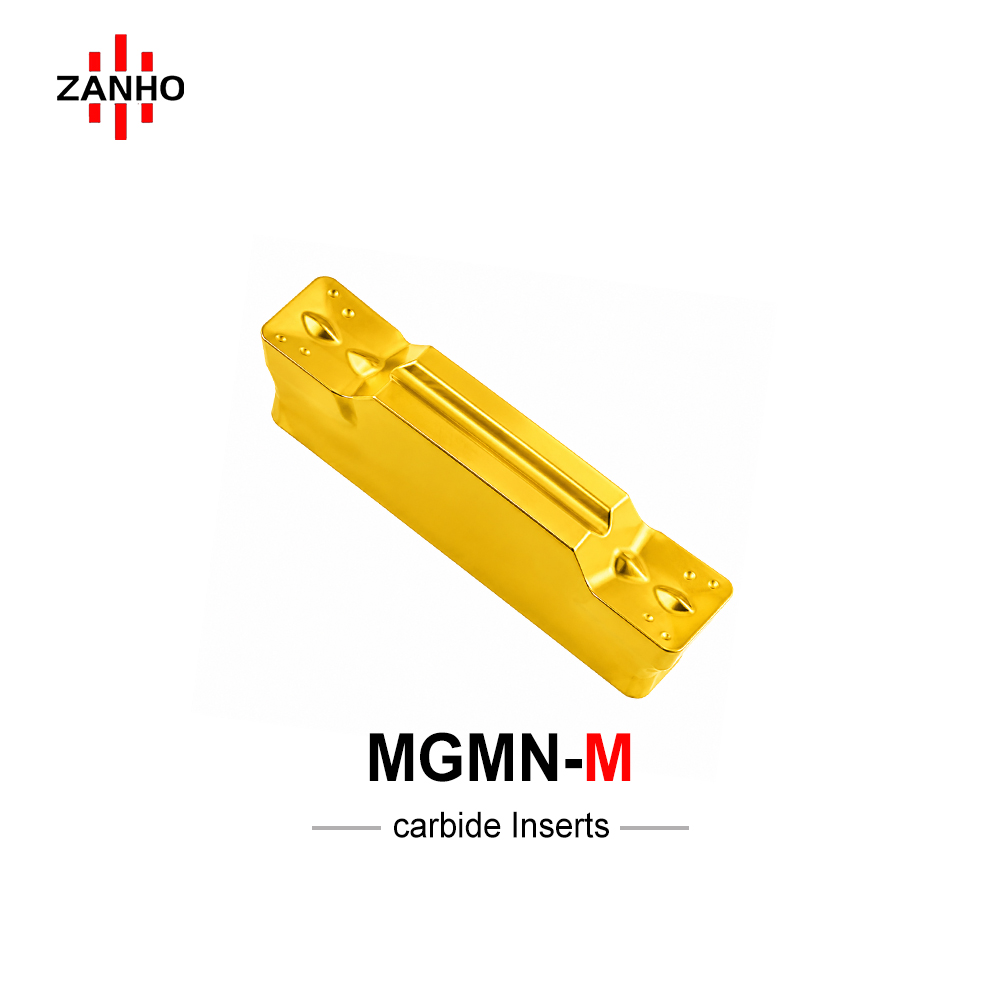

MGMN-M

ZANHO MGMN-M series: Double-sided flat head inserts specifically designed for external grooving and parting-off. The proven M-type chipbreaker geometry provides excellent chip curling to prevent workpiece wrapping and reduce vibration. Engineered for stable semi-finishing and medium load operations with a precision width tolerance of W±0.05mm.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Double-Ended Economy: Symmetrical design allows both ends to be utilized, maximizing tool life and providing a cost-effective solution for mass production.
  • M-Type Chipbreaker: A mature chip control geometry that effectively constrains chip curling, preventing chip entanglement and improving surface finish.
  • Enhanced Edge Toughness: Precision-honed cutting edges improve resistance to impact and thermal cracking, ensuring reliability in interrupted cuts.
  • High Pressing Precision: Advanced manufacturing ensures consistent slot width (W±0.05) and a smooth, flat surface after parting-off.
  • Vibration Suppression: Optimized front rake geometry reduces cutting resistance and suppresses chatter during deep grooving cycles.

Technical Specifications (mm)

Model Type Width (W±0.05) M Length (L) Radius (R) t S
MGMN 150-M 1.5 1.2 16.0 0.2 3.5 4.0
MGMN 200-M 2.0 1.6 16.0 0.2 3.5 4.0
MGMN 300-M 3.0 2.35 21.0 0.4 4.8 5.65
MGMN 400-M 4.0 3.3 21.0 0.4 4.8 5.85
MGMN 500-M 5.0 4.1 26.0 0.8 5.8 7.0
MGMN 600-M 6.0 4.95 26.0 0.8 5.8 7.2
MGMN 800-M 8.0 6.0 31.0 0.8 6.5 8.0

Universal Stability for High-Volume Grooving

ZANHO MGMN series delivers reliable performance for general machinery and CNC shops. Contact us for bulk B2B inquiry and tool holder compatibility.
