MGMN-T

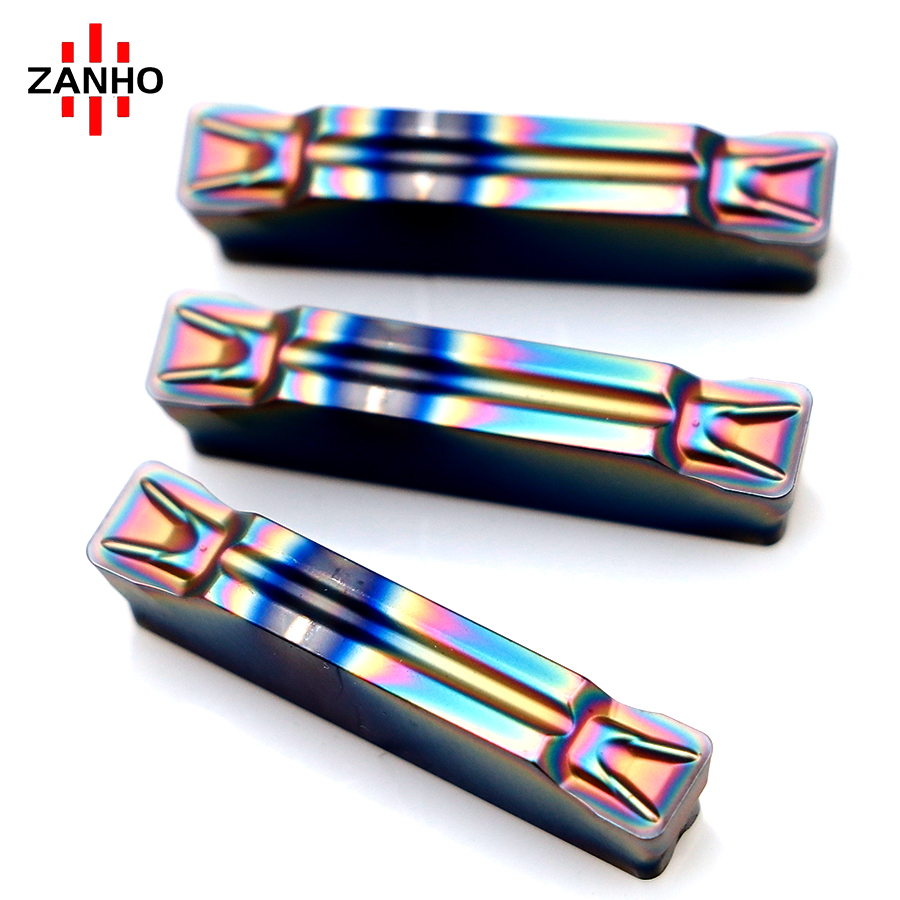

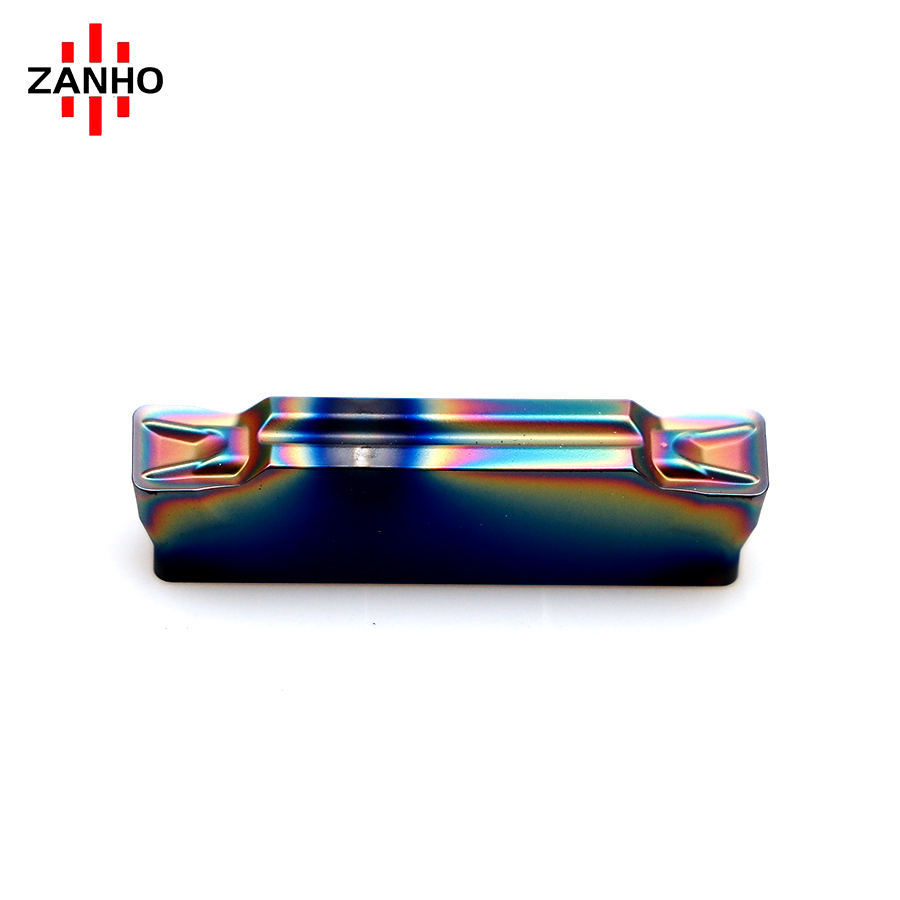

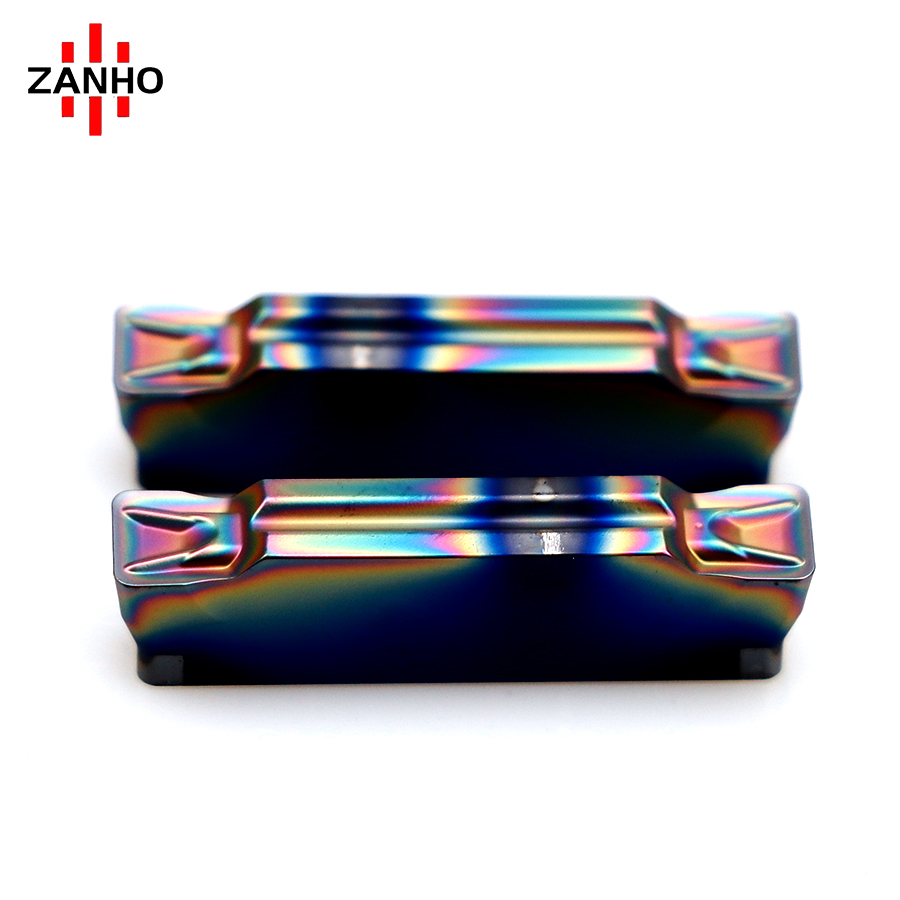

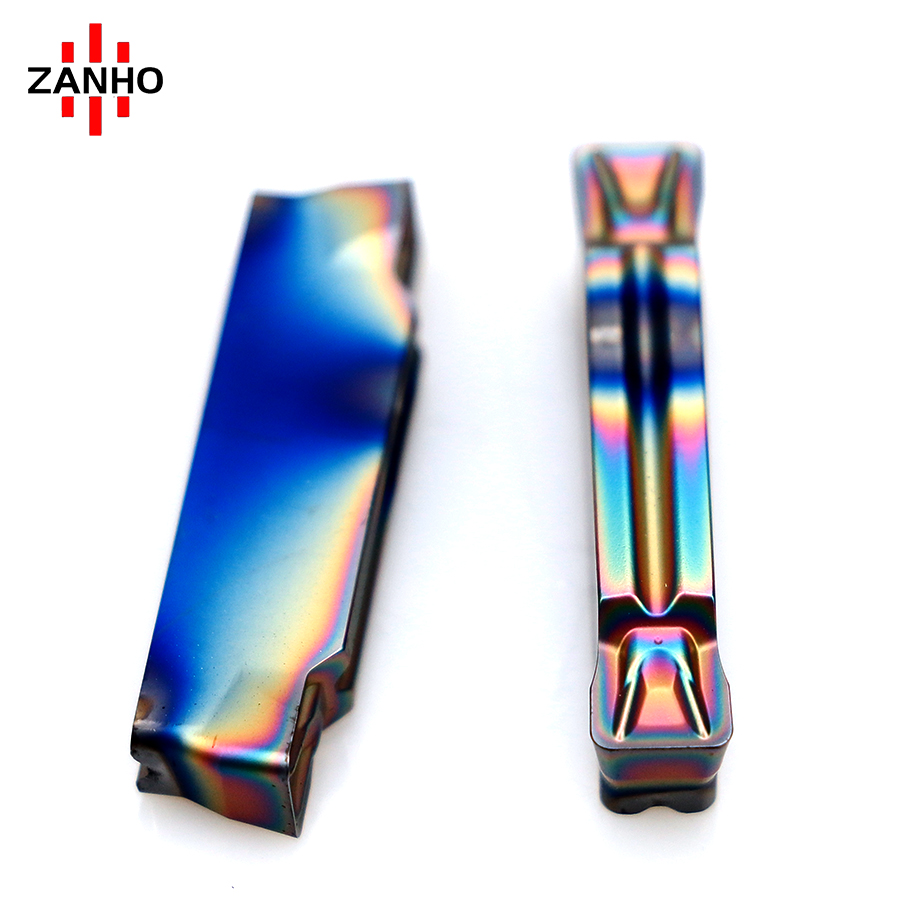

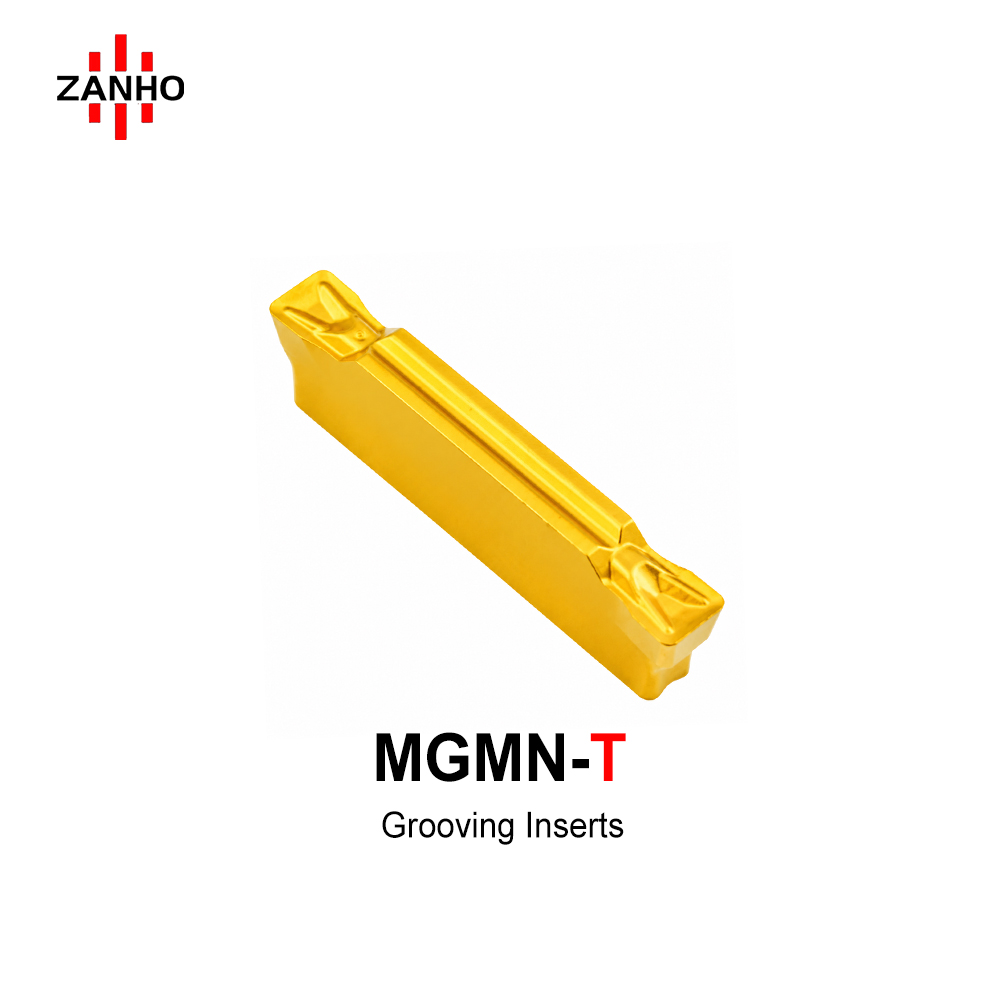

ZANHO MGMN-T series: High-efficiency double-headed parting and grooving inserts specifically designed for external CNC machining. Featuring a specialized rake geometry with reinforced protruding chipbreaker ribs, these inserts provide mandatory chip curling and reliable breaking even under varying loads. The double-edged structure maximizes tool utilization, while the passivated cutting edges ensure exceptional strength and stability for light to medium-duty external grooving applications.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • Reinforced Chipbreaker: Specialized rake face geometry featuring raised chipbreaker ribs that provide mandatory pressure for reliable chip breaking and curling.
  • Double-Edged Value: The symmetrical double-headed design doubles the insert's utility—simply rotate to the second fresh edge once the first is worn, significantly lowering tooling costs.
  • Precision Edge Passion: Honed cutting edges increase tip strength and resistance to micro-chipping, ensuring consistent performance in external parting-off.
  • Vibration Suppression: Optimized chipbreaker design reduces cutting resistance and minimizes vibration during high-speed external CNC operations.
  • Stable Press-Plate Clamping: Engineered for secure press-plate tool holder mounting, providing high dimensional repeatability and rigid positioning.

MGMN-T Specification Table (mm)

Designation L (Length) B (Width) d h R (Radius)
MGMN150-T 16 1.5 1.2 3.5 0.15
MGMN200-T 16 2.0 1.6 3.5 0.2
MGMN250-T 18.5 2.5 2.0 3.85 0.2
MGMN300-T 21 3.0 2.35 4.8 0.4
MGMN400-T 21 4.0 3.3 4.8 0.4
MGMN500-T 26 5.0 4.1 5.8 0.8
MGMN600-T 26 6.0 5.0 5.8 0.8

Precision Reinforced External Grooving Solutions

ZANHO MGMN-T series delivers high reliability with mandatory chip control. Contact us for bulk B2B inquiry.
