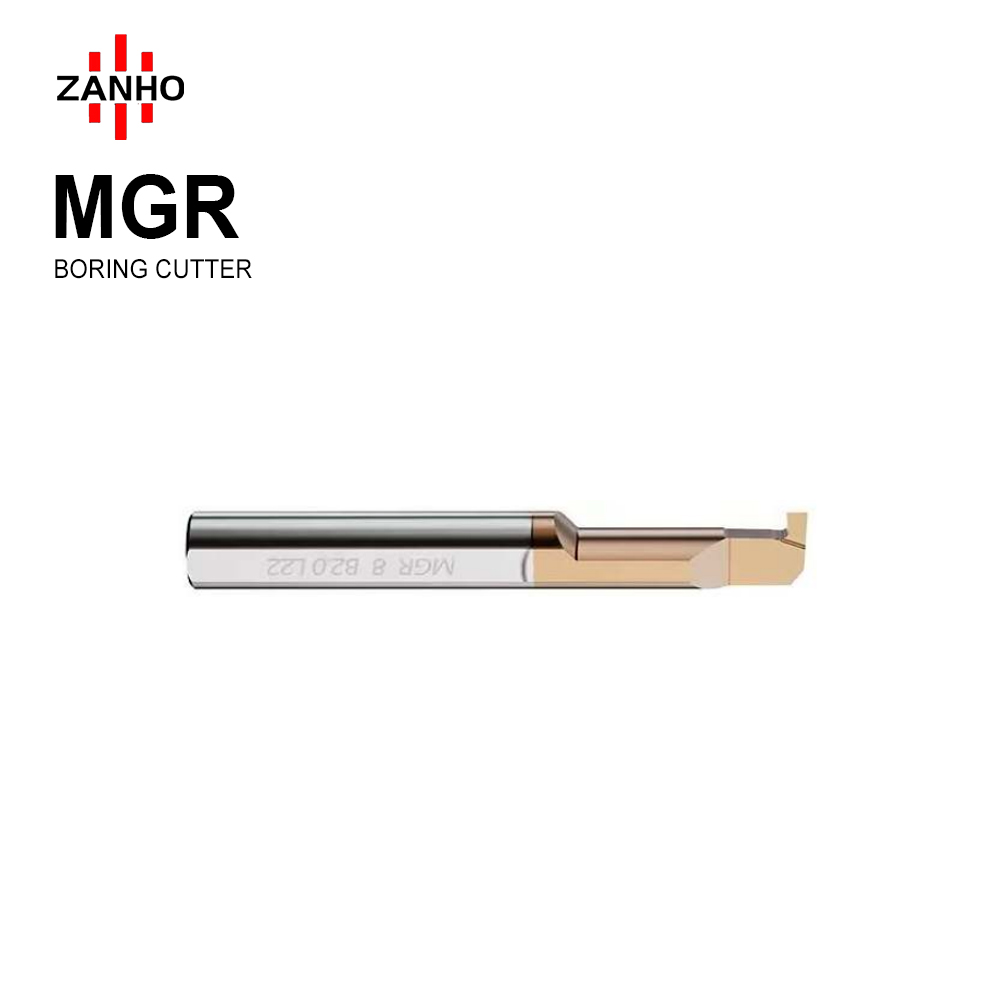

MGR Boring Cutter | Miniature Internal Grooving Bar for Steel

Internal Slotting Expert: Specifically designed for ultra-precise Internal Grooving and Slotting in small diameters, starting from a minimum hole size of 3.0mm.
Accurate Groove Widths: Features an extensive selection of precision blade widths from 0.5mm to 3.0mm, ideal for high-tolerance O-ring and snap-ring grooves.
Optimized Stability: Specifically engineered geometry to minimize vibration and deflection during internal grooving operations, ensuring high surface finish.
Workpiece Compatibility: Highly effective for Carbon Steel, Alloy Steel, Stainless Steel, and Cast Iron with high-speed performance.
Versatile Sizing: Comprehensive range of diameters and effective lengths (L5 to L32) to meet diverse miniature CNC machining demands.

Categories: Small Diameter Boring Tools

Download PDF

Order Number	Specification
MGR-03000710	MGR 3B0.7 L10 D4
MGR-03001010	MGR 3B1.0 L10 D4
MGR-03001510	MGR 3B1.5 L10 D4
MGR-04000510	MGR 4B0.5 L10
MGR-04001010	MGR 4B1.0 L10
MGR-04001015	MGR 4B1.0 L15
MGR-04001022	MGR 4B1.0 L22
MGR-04001505	MGR 4B1.5 L5
MGR-04001510	MGR 4B1.5 L10
MGR-04001515	MGR 4B1.5 L15
MGR-04002010	MGR 4B2.0 L10
MGR-04002015	MGR 4B2.0 L15
MGR-05001015	MGR 5B1.0 L15
MGR-05001022	MGR 5B1.0 L22
MGR-05001515	MGR 5B1.5 L15
MGR-05001522	MGR 5B1.5 L22
MGR-05002015	MGR 5B2.0 L15
MGR-05002022	MGR 5B2.0 L22
MGR-06001015	MGR 6B1.0 L15
MGR-06001022	MGR 6B1.0 L22
MGR-06001515	MGR 6B1.5 L15
MGR-06001522	MGR 6B1.5 L22
MGR-06002015	MGR 6B2.0 L15
MGR-06002022	MGR 6B2.0 L22
MGR-06002522	MGR 6B2.5 L22
MGR-06003022	MGR 6B3.0 L22
MGR-07002032	MGR 7B2.0 L32
MGR-08001022	MGR 8B1.0 L22
MGR-08001522	MGR 8B1.5 L22
MGR-08001030	MGR 8B1.0 L30
MGR-08001530	MGR 8B1.5 L30
MGR-08002022	MGR 8B2.0 L22
MGR-08002522	MGR 8B2.5 L22
MGR-08003022	MGR 8B3.0 L22
