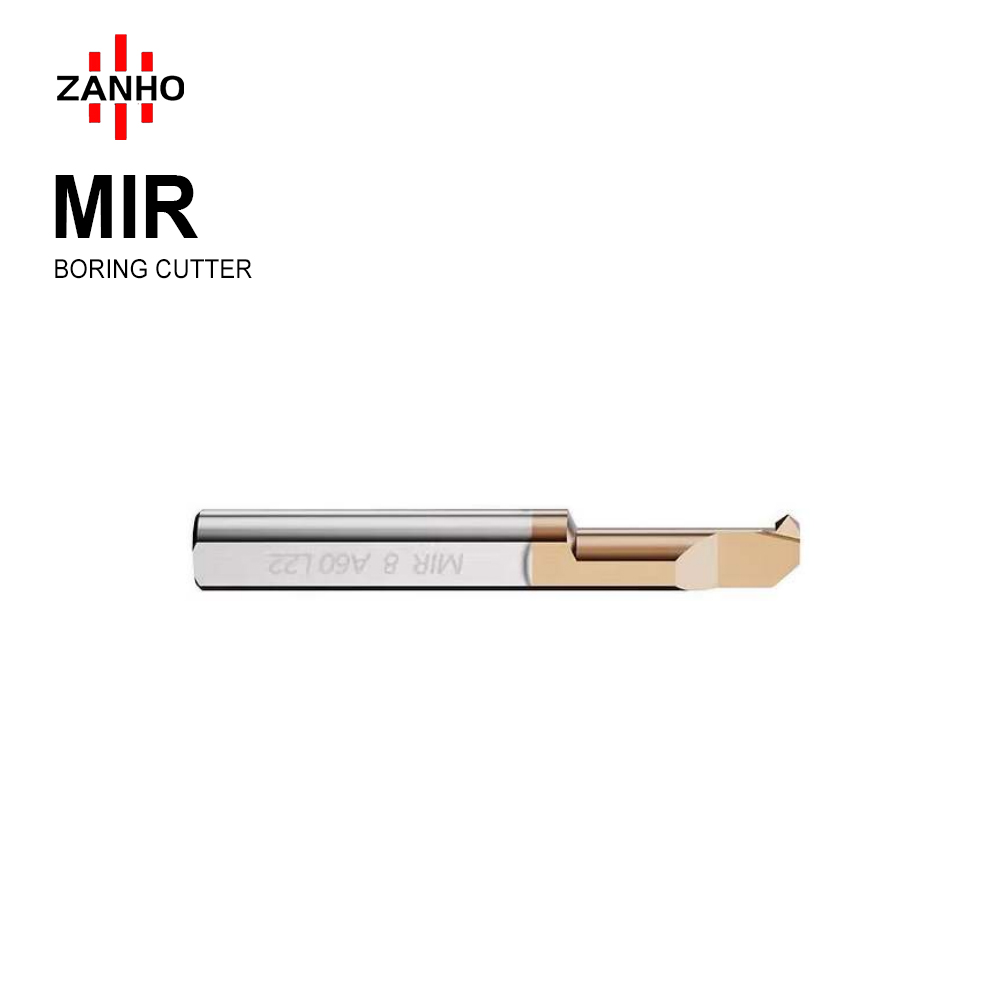

MIR-Boring Cutter

  • Internal Threading Expert: Specifically engineered for ultra-fine Internal Thread Cutting in small diameters, starting from a minimum hole size of 3.0mm.
  • Versatile Thread Angles: Available in both 60° (Metric/UN) and 55° (Whitworth) profiles to meet diverse global industrial threading standards.
  • Stable Geometry: Optimized tool structure to minimize vibration and deflection during the high-precision threading cycle, ensuring smooth thread surfaces.
  • Workpiece Compatibility: Highly effective for Carbon Steel, Alloy Steel, Stainless Steel, and Cast Iron with high-speed performance.
  • Massive Spec Selection: Full range of processing diameters (D3 to D8) with various effective lengths (L1) to suit specific precision machining requirements.
Categories:
Learn More
Download PDF
Description
  • Internal Threading Expert: Specifically engineered for ultra-fine Internal Thread Cutting in small diameters, starting from a minimum hole size of 3.0mm.
  • Versatile Thread Angles: Available in both 60° (Metric/UN) and 55° (Whitworth) profiles to meet diverse global industrial threading standards.
  • Stable Geometry: Optimized tool structure to minimize vibration and deflection during the high-precision threading cycle, ensuring smooth thread surfaces.
  • Workpiece Compatibility: Highly effective for Carbon Steel, Alloy Steel, Stainless Steel, and Cast Iron with high-speed performance.
  • Massive Spec Selection: Full range of processing diameters (D3 to D8) with various effective lengths (L1) to suit specific precision machining requirements.

Order Number Specification
MIR-03005515 MIR 3A55 L15 D4
MIR-03006010 MIR 3A60 L10 D4
MIR-33006010 MIR 3A60 L10 D3
MIR-03006015 MIR 3A60 L15
MIR-04005515 MIR 4A55 L15
MIR-04006015 MIR 4A60 L15
MIR-04006022 MIR 4A60 L22
MIR-05005515 MIR 5A55 L15
MIR-05005522 MIR 5A55 L22
MIR-05006015 MIR 5A60 L15
MIR-05006022 MIR 5A60 L22
MIR-06005515 MIR 6A55 L15
MIR-06005522 MIR 6A55 L22
MIR-06006015 MIR 6A60 L15
MIR-06006022 MIR 6A60 L22
MIR-06006030 MIR 6A60 L30
MIR-07006025 MIR 7A60 L25
MIR-08005522 MIR 8A55 L22
MIR-08006030 MIR 8A60 L30
