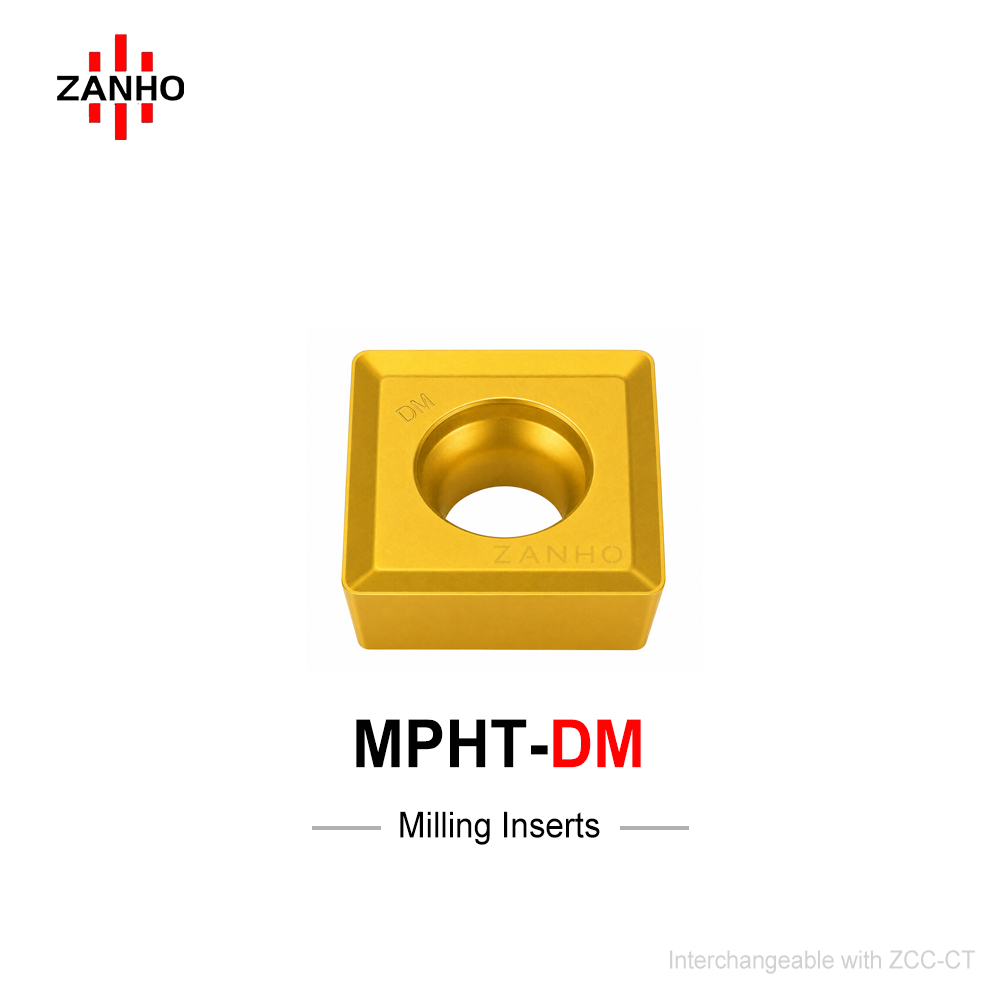

MPHT-DM

ZANHO MPHT-DM series is a high-efficiency double-sided positive milling insert. Designed for slotting and side-and-face milling, it offers double the cutting edges compared to standard positive inserts, significantly improving economy. The DM chipbreaker is specifically optimized for slotting, balancing exceptional edge strength with a light cutting action across multiple sizes (06/08/12).
Categories:
Learn More
Download PDF
Description

Core Advantages

  • Double-Sided Economy: Unlike traditional single-sided positive inserts, the MPHT-DM is double-sided, doubling the number of available cutting edges for superior cost-efficiency.
  • Positive Rake Design: Combines a positive cutting angle with double-sided utility, enabling sharp, low-force cutting in slotting and side milling.
  • DM Slotting Geometry: Specifically engineered for slot milling conditions, balancing edge toughness with a clean cutting action to reduce spindle load.
  • Universal Compatibility: Available in multiple substrate sizes to suit different slot widths and compatible with standard side-and-face milling cutters.

Specifications (mm)

Model I.C (IC) Thickness (S) Hole (d) Radius (R)
MPHT06T304-DM 6.35 3.18 2.80 0.4
MPHT080305-DM 8.30 3.18 3.40 0.5
MPHT120408-DM 12.70 4.76 5.00 0.8

Double the Edges, Double the Value

ZANHO MPHT-DM series is the premium choice for high-productivity slotting operations. Contact us for wholesale pricing and tool holder compatibility.
