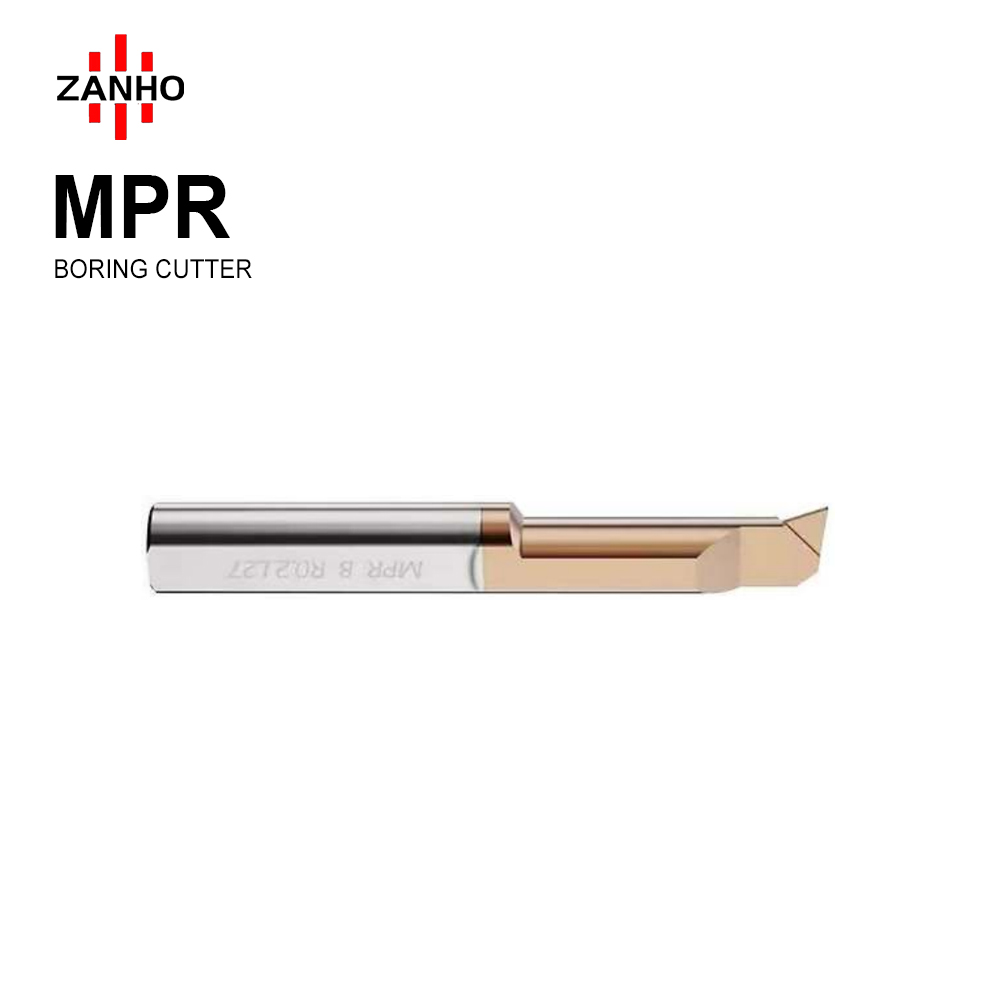

MPR-Boring Cutter

  • Internal Profiling Expert: Specifically engineered for ultra-fine Internal Boring and Profiling in small diameters, starting from a minimum hole size of 2.0mm.
  • Precision Radii: Features an extensive range of precision-ground tip radii (R0.1 to R0.4), ensuring exceptional surface finish and dimensional accuracy in complex internal contours.
  • Stable Finishing: Specifically optimized geometry to minimize vibration and tool deflection, allowing for stable and accurate finishing in deep-reach internal cavities.
  • Workpiece Compatibility: Highly effective for Carbon Steel, Alloy Steel, Stainless Steel, and Hardened Materials.
  • Versatile Sizing: Full range of processing diameters from D2.0 to D8.0 with varied effective lengths (L10 to L30) to meet diverse precision machining requirements.
Categories:
Learn More
Download PDF
Description
  • Internal Profiling Expert: Specifically engineered for ultra-fine Internal Boring and Profiling in small diameters, starting from a minimum hole size of 2.0mm.
  • Precision Radii: Features an extensive range of precision-ground tip radii (R0.1 to R0.4), ensuring exceptional surface finish and dimensional accuracy in complex internal contours.
  • Stable Finishing: Specifically optimized geometry to minimize vibration and tool deflection, allowing for stable and accurate finishing in deep-reach internal cavities.
  • Workpiece Compatibility: Highly effective for Carbon Steel, Alloy Steel, Stainless Steel, and Hardened Materials.
  • Versatile Sizing: Full range of processing diameters from D2.0 to D8.0 with varied effective lengths (L10 to L30) to meet diverse precision machining requirements.

Order Number Specification
MPR-02001010 MPR 2R0.1 L10 D3
MPR-03001010 MPR 3R0.1 L10 D4
MPR-03001015 MPR 3R0.1 L15 D4
MPR-03001022 MPR 3R0.1 L22 D4
MPR-03001510 MPR 3R0.15 L10 D4
MPR-03001515 MPR 3R0.15 L15 D4
MPR-03002010 MPR 3R0.2 L10 D4
MPR-03002015 MPR 3R0.2 L15 D4
MPR-04001015 MPR 4R0.1 L15
MPR-04001515 MPR 4R0.15 L15
MPR-04002015 MPR 4R0.2 L15
MPR-04001022 MPR 4R0.1 L22
MPR-04002022 MPR 4R0.2 L22
MPR-05001015 MPR 5R0.1 L15
MPR-05001022 MPR 5R0.1 L22
MPR-05002015 MPR 5R0.2 L15
MPR-05002022 MPR 5R0.2 L22
MPR-06001022 MPR 6R0.1 L22
MPR-06002015 MPR 6R0.2 L15
MPR-06002022 MPR 6R0.2 L22
MPR-06002030 MPR 6R0.2 L30
MPR-06004022 MPR 6R0.4 L22
MPR-08002022 MPR 8R0.2 L22
MPR-08002030 MPR 8R0.2 L30
