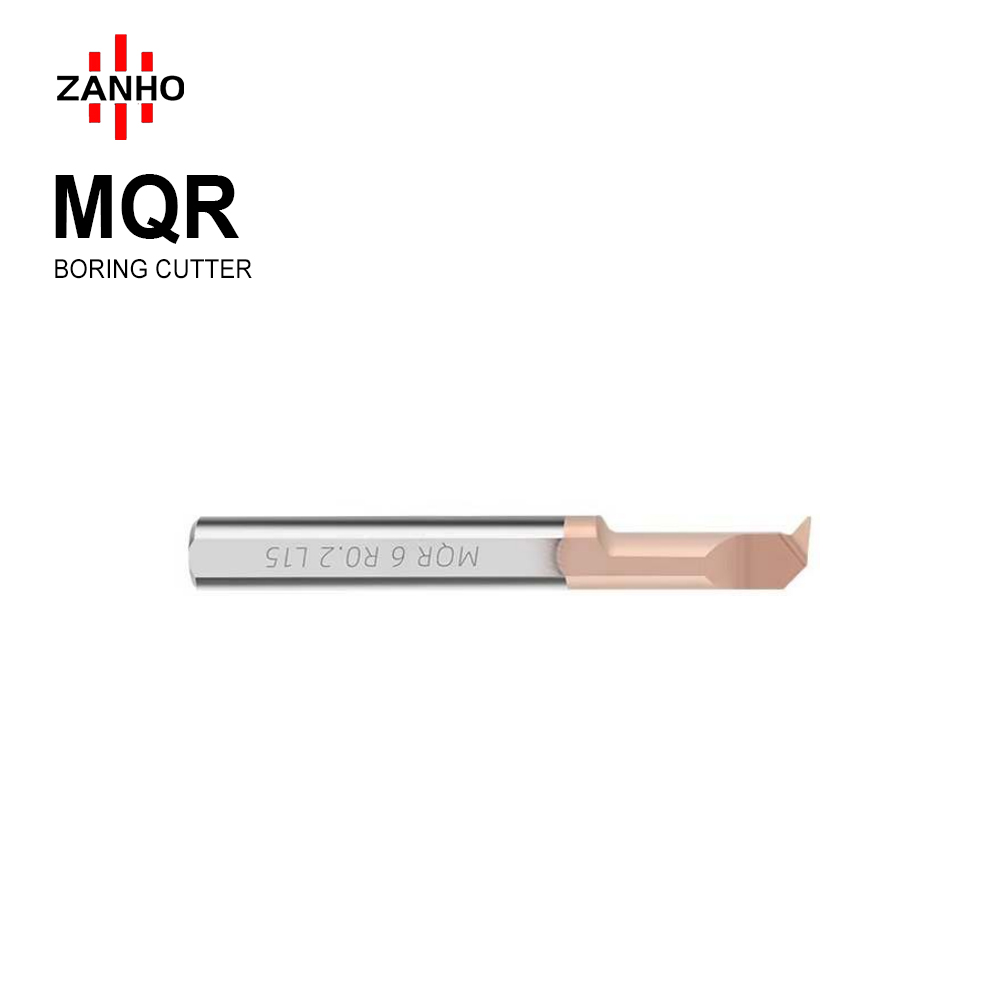

MQR-Boring Cutter

  • Profiling Specialist: Specifically engineered for ultra-fine Internal Copying and Profiling in small diameters, starting from a minimum hole size of 3.0mm.
  • Precision Radii: Features an extensive selection of precision-ground tip radii from R0.05 to R0.4, allowing for exceptional surface finish and accuracy in internal profiles.
  • Workpiece Compatibility: Highly effective for processing Carbon Steel, Alloy Steel, and Stainless Steel with superior performance.
  • Massive Spec Selection: Full range of processing diameters from D3.0 to D8.0 with varied effective lengths (L10 to L30) to meet diverse precision machining needs.
Categories:
Learn More
Download PDF
Description
  • Profiling Specialist: Specifically engineered for ultra-fine Internal Copying and Profiling in small diameters, starting from a minimum hole size of 3.0mm.
  • Precision Radii: Features an extensive selection of precision-ground tip radii from R0.05 to R0.4, allowing for exceptional surface finish and accuracy in internal profiles.
  • Workpiece Compatibility: Highly effective for processing Carbon Steel, Alloy Steel, and Stainless Steel with superior performance.
  • Massive Spec Selection: Full range of processing diameters from D3.0 to D8.0 with varied effective lengths (L10 to L30) to meet diverse precision machining needs.
Order Number Specification
MQR-03000510 MQR 3R0.05 L10
MQR-03001010 MQR 3R0.1 L10
MQR-03001510 MQR 3R0.15 L10
MQR-04000510 MQR 4R0.05 L10
MQR-04001010 MQR 4R0.1 L10
MQR-04001015 MQR 4R0.1 L15
MQR-04001515 MQR 4R0.15 L15
MQR-04001522 MQR 4R0.15 L22
MQR-04002010 MQR 4R0.2 L10
MQR-04002015 MQR 4R0.2 L15
MQR-04002022 MQR 4R0.2 L22
MQR-05001015 MQR 5R0.1 L15
MQR-05001022 MQR 5R0.1 L22
MQR-05002015 MQR 5R0.2 L15
MQR-05002022 MQR 5R0.2 L22
MQR-06001015 MQR 6R0.1 L15
MQR-06001022 MQR 6R0.1 L22
MQR-06002015 MQR 6R0.2 L15
MQR-06002022 MQR 6R0.2 L22
MQR-06002030 MQR 6R0.2 L30
MQR-06004015 MQR 6R0.4 L15
MQR-06004022 MQR 6R0.4 L22
MQR-07002025 MQR 7R0.2 L25
MQR-08001027 MQR 8R0.1 L27
MQR-08002022 MQR 8R0.2 L22
MQR-08002027 MQR 8R0.2 L27
MQR-08002030 MQR 8R0.2 L30
MQR-08004027 MQR 8R0.4 L27
