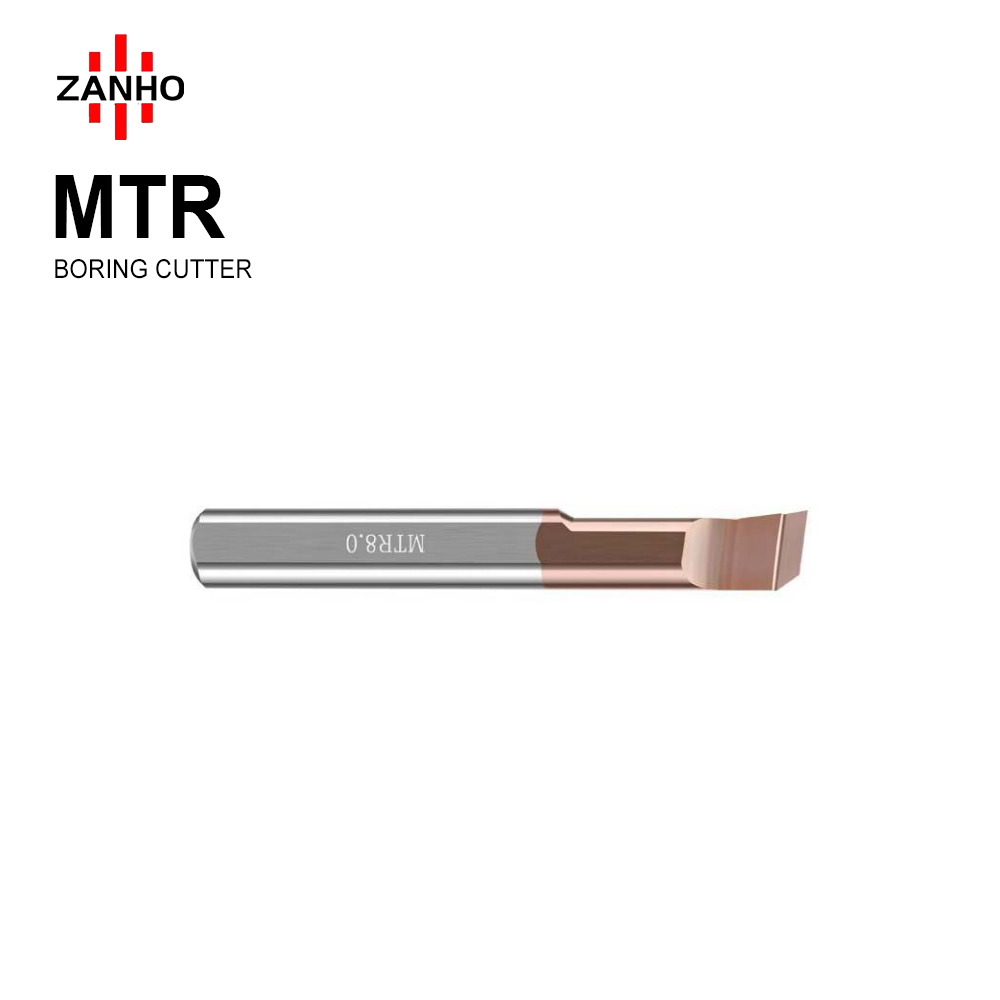

MTR-Boring Cutter

  • Micro-Hole Specialist: Engineered for ultra-precise Internal Boring and Profiling in small diameters, starting from a minimum hole size of 0.8mm.
  • Premium TIAISIN Coating: Advanced TiAlSiN coating provides exceptional heat resistance and tool life, ensuring consistent accuracy in high-speed steel machining.
  • Ultra-Fine Substrate: Made from premium micro-grain carbide to maintain extremely sharp cutting edges and superior surface finish in internal cavities.
  • Stable Machining: Specifically optimized geometry to reduce vibration and deflection during deep-reach internal boring operations.
  • Versatile Sizing: Extensive range covering processing diameters from 0.8mm to 10.0mm with varied effective lengths for diverse CNC applications.
Categories:
Learn More
Download PDF
Description
  • Micro-Hole Specialist: Engineered for ultra-precise Internal Boring and Profiling in small diameters, starting from a minimum hole size of 0.8mm.
  • Premium TIAISIN Coating: Advanced TiAlSiN coating provides exceptional heat resistance and tool life, ensuring consistent accuracy in high-speed steel machining.
  • Ultra-Fine Substrate: Made from premium micro-grain carbide to maintain extremely sharp cutting edges and superior surface finish in internal cavities.
  • Stable Machining: Specifically optimized geometry to reduce vibration and deflection during deep-reach internal boring operations.
  • Versatile Sizing: Extensive range covering processing diameters from 0.8mm to 10.0mm with varied effective lengths for diverse CNC applications.

Order Number Specification
MTR-00800503 MTR0.8 R0.05 L3 D4
MTR-00900503 MTR0.9 R0.05 L3 D4
MTR-01000504 MTR1.0 R0.05 L4 D4
MTR-01200504 MTR1.2 R0.05 L4 D4
MTR-01400505 MTR1.4 R0.05 L5 D4
MTR-01501006 MTR1.5 R0.1 L6 D4
MTR-01801007 MTR1.8 R0.1 L7 D4
MTR-02001010 MTR2 R0.1 L10 D4
MTR-02001510 MTR2 R0.15 L10 D4
MTR-02001515 MTR2 R0.15 L15 D4
MTR-02501515 MTR2.5 R0.15 L15 D4
MTR-03001010 MTR3 R0.1 L10 D4
MTR-03001015 MTR3 R0.1 L15 D4
MTR-03001022 MTR3 R0.1 L22 D4
MTR-03001510 MTR3 R0.15 L10 D4
MTR-03001515 MTR3 R0.15 L15 D4
MTR-03001522 MTR3 R0.15 L22 D4
MTR-03002015 MTR3 R0.2 L15 D4
MTR-03501010 MTR3.5 R0.1 L10 D4
MTR-03501015 MTR3.5 R0.1 L15 D4
MTR-03502015 MTR3.5 R0.2 L15 D4
MTR-03502010 MTR3.5 R0.2 L10 D4
MTR-04001010 MTR4 R0.1 L10
MTR-04001015 MTR4 R0.1 L15
MTR-04001022 MTR4 R0.1 L22 D4
MTR-04001510 MTR4 R0.15 L10
MTR-04001515 MTR4 R0.15 L15
MTR-04001522 MTR4 R0.15 L22
MTR-04002010 MTR4 R0.2 L10
MTR-04002015 MTR4 R0.2 L15
MTR-04002022 MTR4 R0.2 L22
MTR-04004022 MTR4 R0.4 L22
MTR-04004015 MTR4 R0.4 L15
MTR-05001015 MTR5 R0.1 L15
MTR-05001022 MTR5 R0.1 L22
MTR-05001522 MTR5 R0.15 L22
MTR-05002015 MTR5 R0.2 L15
MTR-05002022 MTR5 R0.2 L22
MTR-05002030 MTR5 R0.2 L30
MTR-05002025 MTR5 R0.2 L25
MTR-05002035 MTR5 R0.2 L35
MTR-06001015 MTR6 R0.1 L15
MTR-06001022 MTR6 R0.1 L22
MTR-06001030 MTR6 R0.1 L30
MTR-06001515 MTR6 R0.15 L15
MTR-06001522 MTR6 R0.15 L22
MTR-06002015 MTR6 R0.2 L15
MTR-06002022 MTR6 R0.2 L22
MTR-06002030 MTR6 R0.2 L30
MTR-06002035 MTR6 R0.2 L35
MTR-06002040 MTR6 R0.2 L40
MTR-06004015 MTR6 R0.4 L15
MTR-06004022 MTR6 R0.4 L22
MTR-07002022 MTR7 R0.2 L22
MTR-07002032 MTR7 R0.2 L32
MTR-08002022 MTR8 R0.2 L22
MTR-08002030 MTR8 R0.2 L30
MTR-08002032 MTR8 R0.2 L32
MTR-08002040 MTR8 R0.2 L40
MTR-09002030 MTR9 R0.2 L30
MTR-10002035 MTR10.0 R0.2 L35
