OFMT05T3TN-ML

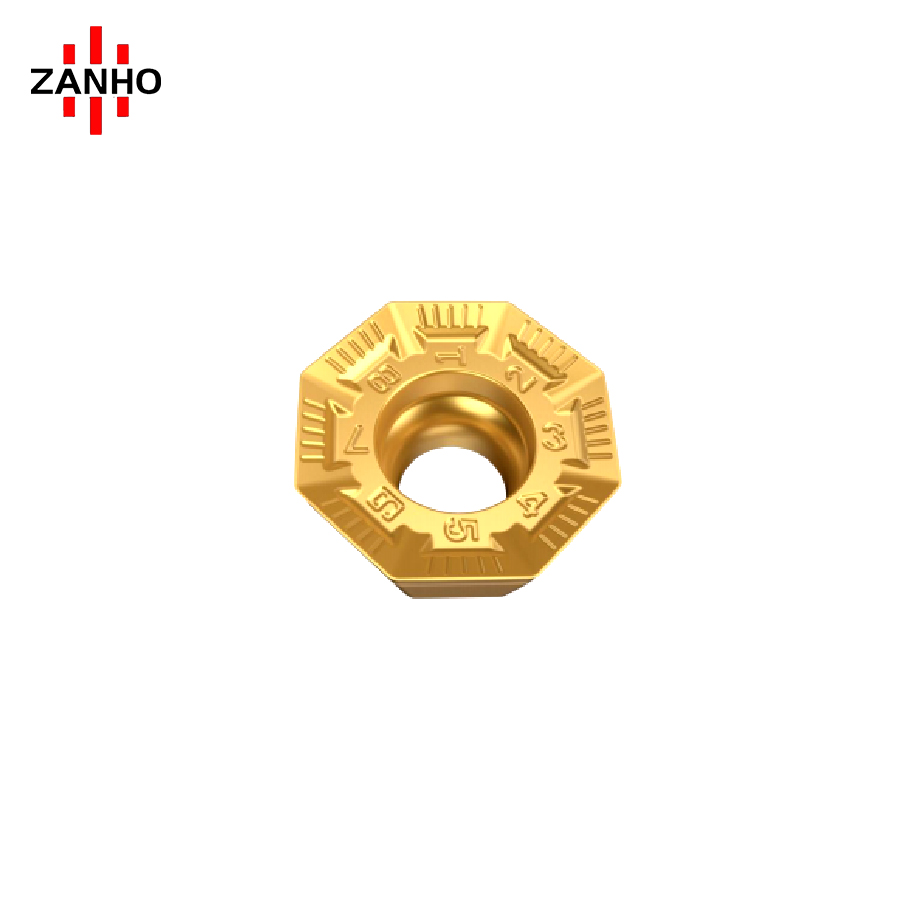

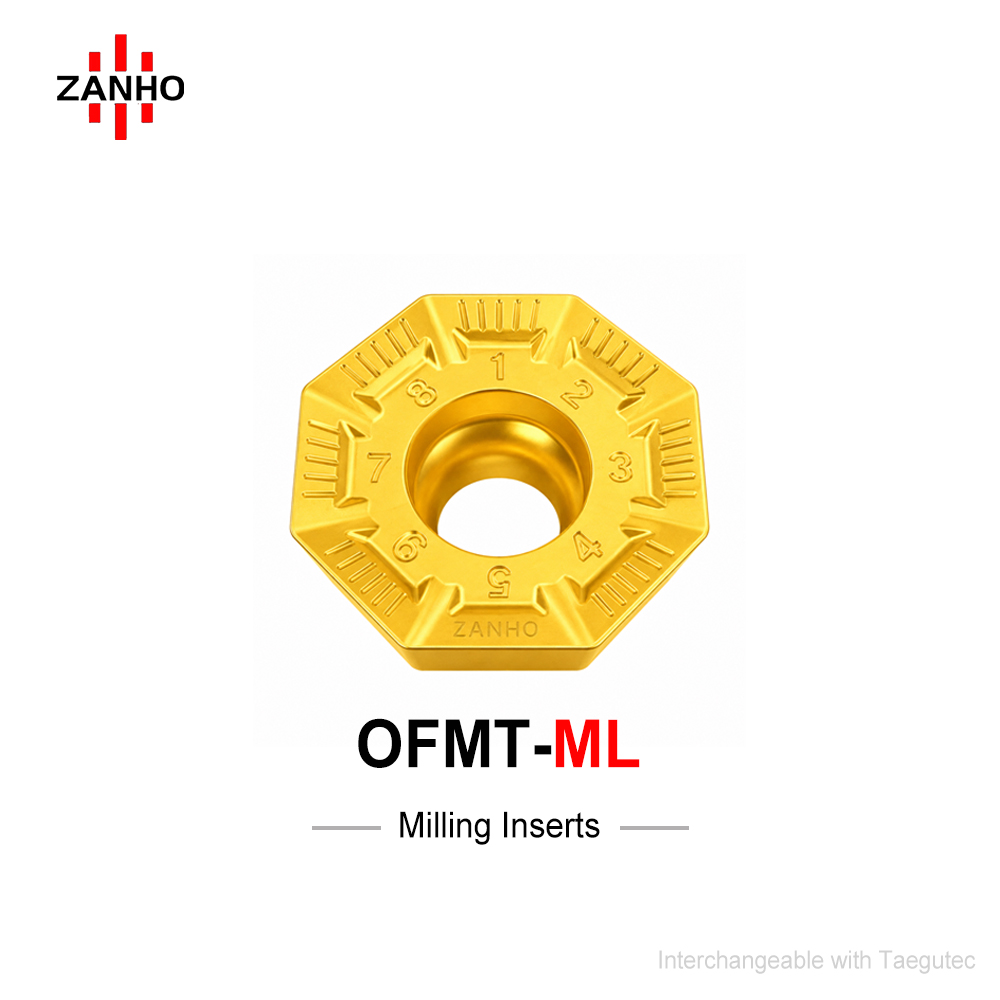

ZANHO OFMT 05T3TN-ML is a high-efficiency octagonal 8-edge milling insert optimized for 45° face milling. Featuring a light-load ML chipbreaker and large positive rake geometry, it drastically reduces cutting resistance and vibration. Perfect for continuous semi-roughing to semi-finishing in Stainless Steel and High-Temperature Alloys, it delivers a stable 3.5mm max depth of cut with maximum tool economy.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Octagonal 8-Edge Economy: Features a single-sided octagonal structure providing eight high-precision cutting edges, delivering exceptional cost-per-edge value for large-scale face milling.
  • ML Light-Load Chipbreaker: Specifically engineered for gummy materials like Stainless Steel and Heat-Resistant Alloys, ensuring clean shearing and minimal edge build-up.
  • Vibration Suppression: Large positive rake and relief angles lower the spindle load and stabilize the cutting process, ideal for machines with limited rigidity or high-feed setups.
  • Optimized Edge Security: Lightly reinforced honed edges ensure reliability during continuous machining while maintaining the sharpness required for semi-finishing.
  • Efficient Metal Removal: Supports a maximum axial depth of cut (ap) of 3.5mm, suitable for both face milling and light-duty square shoulder applications.

Insert Dimensional Specifications (mm)

Model d (I.C Diameter) ap (Max Depth) t (Thickness) R (Radius) Edges
OFMT 05T3TN-ML 12.7 3.5 3.76 0.5 8

Universal Solutions for Challenging Materials

ZANHO OFMT-ML series provides the stability and cost-savings needed for industrial CNC machining. Contact us for bulk B2B pricing and material grade support.
