ONHU050408-F57

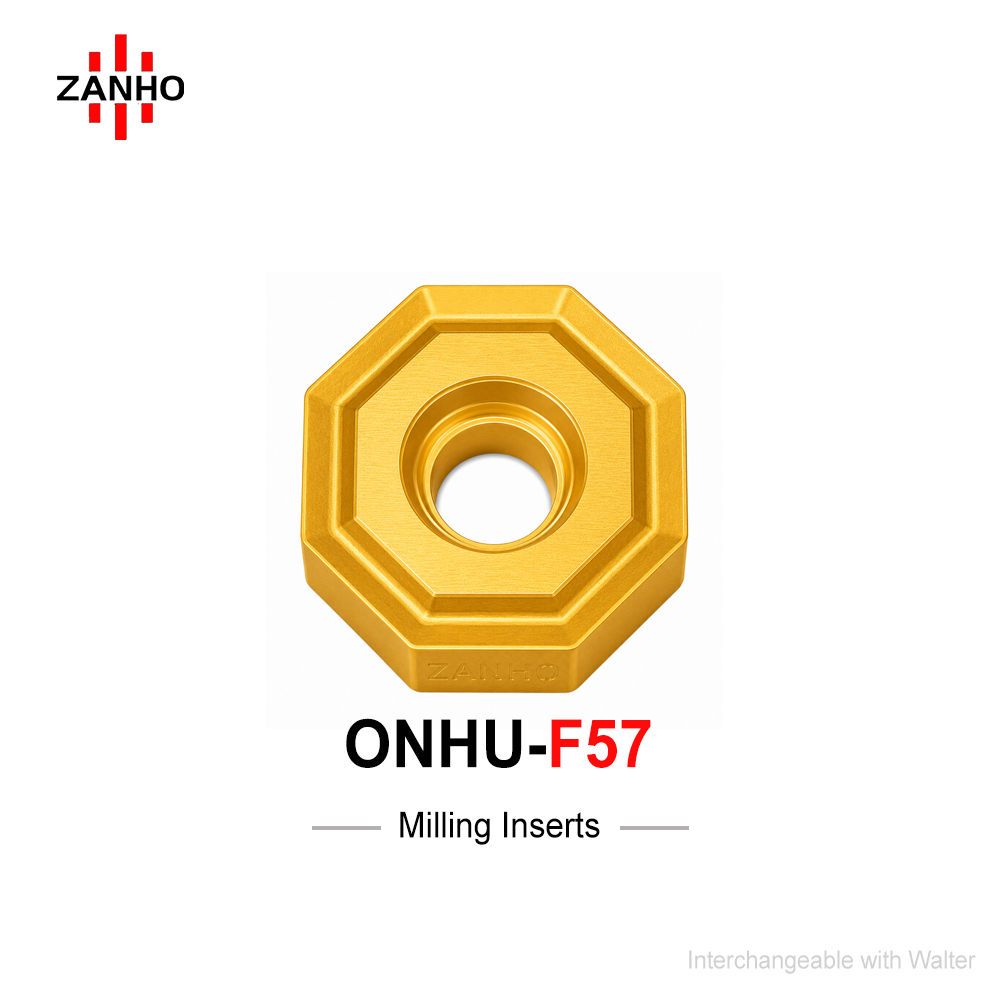

ZANHO ONHU 050408-F57 is an extremely economical double-sided octagonal milling insert offering up to 16 cutting edges. Specifically designed for high-efficiency finishing and semi-finishing, it features an H-class fully ground periphery for superior dimensional accuracy. Its positive rake geometry reduces axial pressure, making it ideal for thin-walled workpieces and high-quality surface requirements in Steel and Cast Iron machining.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Extreme 16-Edge Economy: The double-sided octagonal design provides a total of 16 precision edges, drastically reducing tool cost-per-edge and inventory expenses.
  • H-Class Fully Ground Periphery: Entire insert periphery is precision-ground to ensure tight tolerances and ultra-sharp cutting edges for superior surface finishes.
  • Low Cutting Resistance: Despite its negative basic shape, the F57 geometry features a positive rake design to facilitate light-cutting action and reduce machine spindle load.
  • Reduced Axial Pressure: Engineered to lower axial forces during machining, making it perfect for processing thin-walled components or workpieces with low rigidity.
  • Broad Material Application: Specialized for finishing and semi-finishing of Cast Iron and Steel in automotive and general machinery manufacturing.

Insert Dimensional Specifications (mm)

Model Shape Edge Length S (Thickness) Re (Radius) Tolerance Total Edges
ONHU 050408-F57 Octagonal 5.26 4.76 0.8 H-Class 16

The Ultimate Finishing Solution with 16 Edges

ZANHO ONHU-F57 series delivers unmatched economy and precision for modern finishing tasks. Contact us for bulk B2B pricing and material performance testing.
