ONKU0807ANR-HM

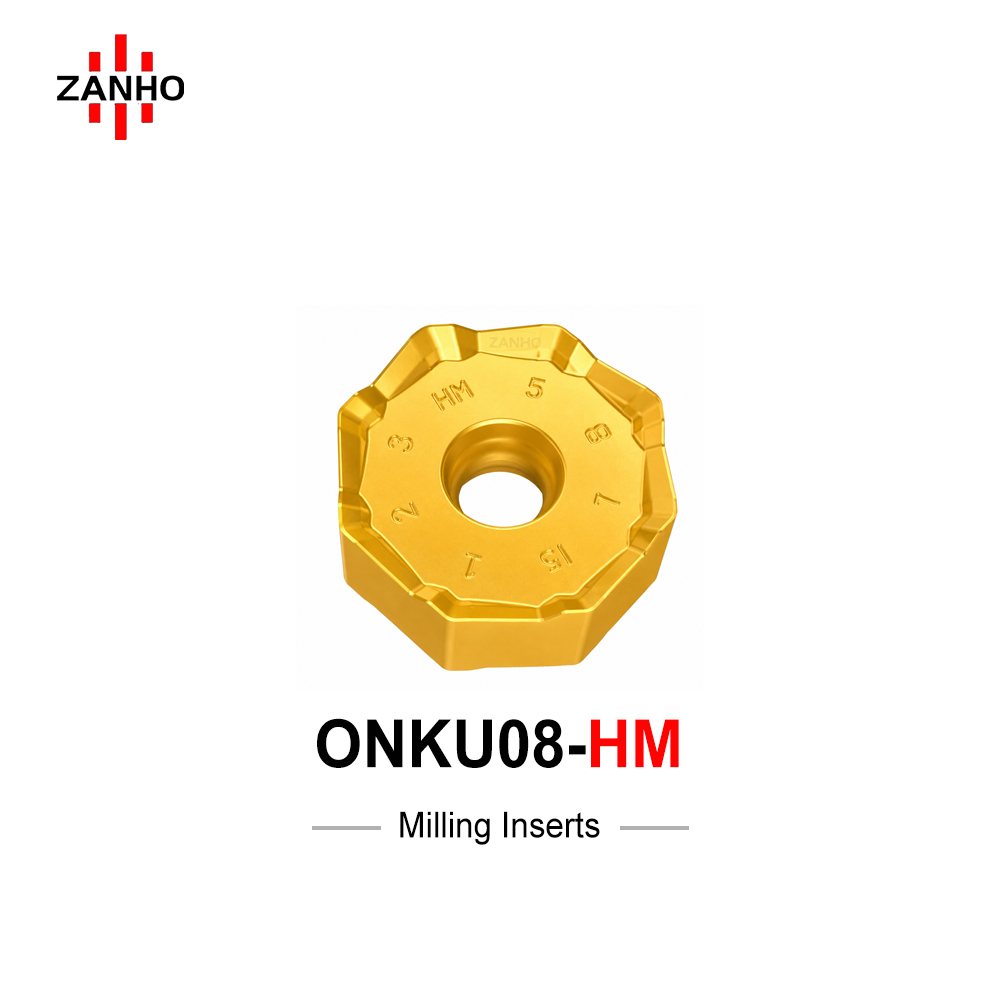

ZANHO ONKU 0807ANR-HM is an ultra-rigid double-sided octagonal milling insert providing 16 cutting edges. Specifically designed for large depth of cut and heavy-load face milling, it features a thickened substrate (7.22mm) for maximum rigidity. The HM geometry is optimized to balance exceptional edge strength with superior chip evacuation, ensuring process security during intense roughing operations.
Categories:
Learn More
Download PDF
Description

Core Technical Advantages

  • 16 Precision Edges: The 8-corner double-sided structure delivers 16 effective edges, providing the lowest cost-per-corner for high-volume face milling.
  • Heavy-Duty Thick Base: Thickened substrate design significantly enhances tool rigidity, handling large depth of cut (DOC) and extreme cutting forces without deformation.
  • Balanced HM Chipbreaker: Expertly engineered to balance cutting edge toughness and efficient chip flow, preventing chip packing during high-productivity roughing.
  • Process Security: Ideal for demanding materials and conditions where stable rough milling is critical for overall manufacturing efficiency.

Specifications (mm)

Model D H Hole (d) Thickness (S) T Radius (R)
ONKU 0807ANR-HM 20.0 20.2 5.4 7.22 8.25 0.8

Rigidity and Efficiency Reimagined

The ZANHO ONKU series ensures your high-feed roughing operations stay reliable and cost-effective. Contact us for bulk B2B pricing.
