ONMU080608-MT

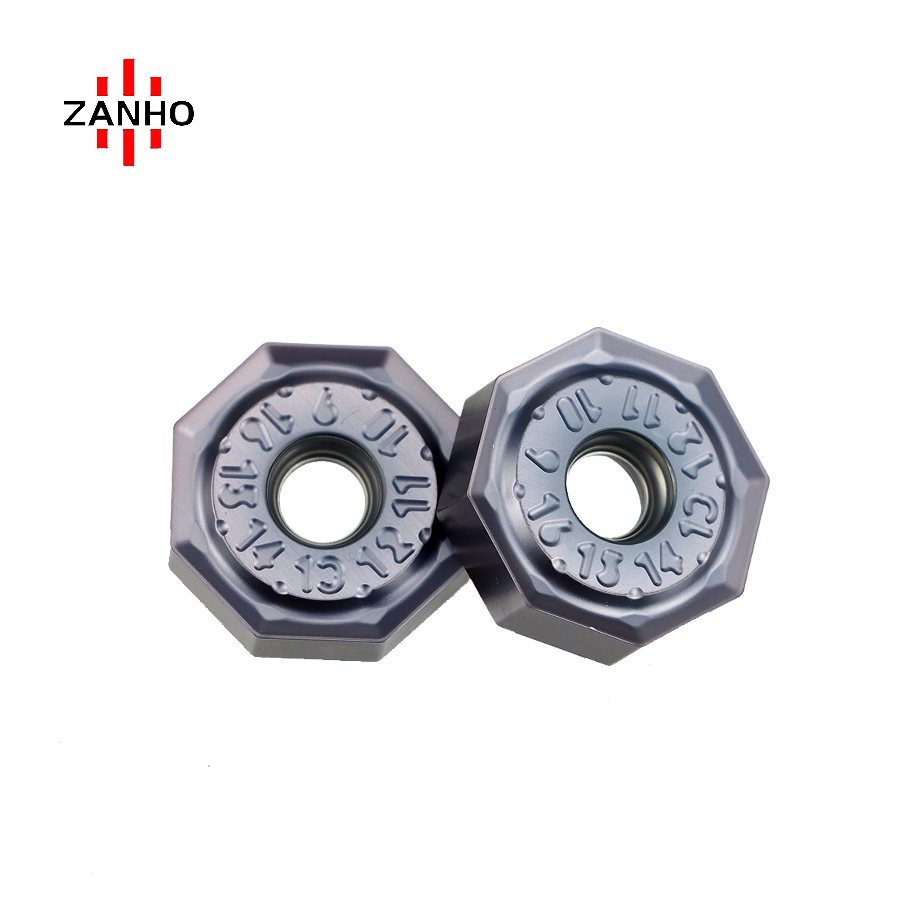

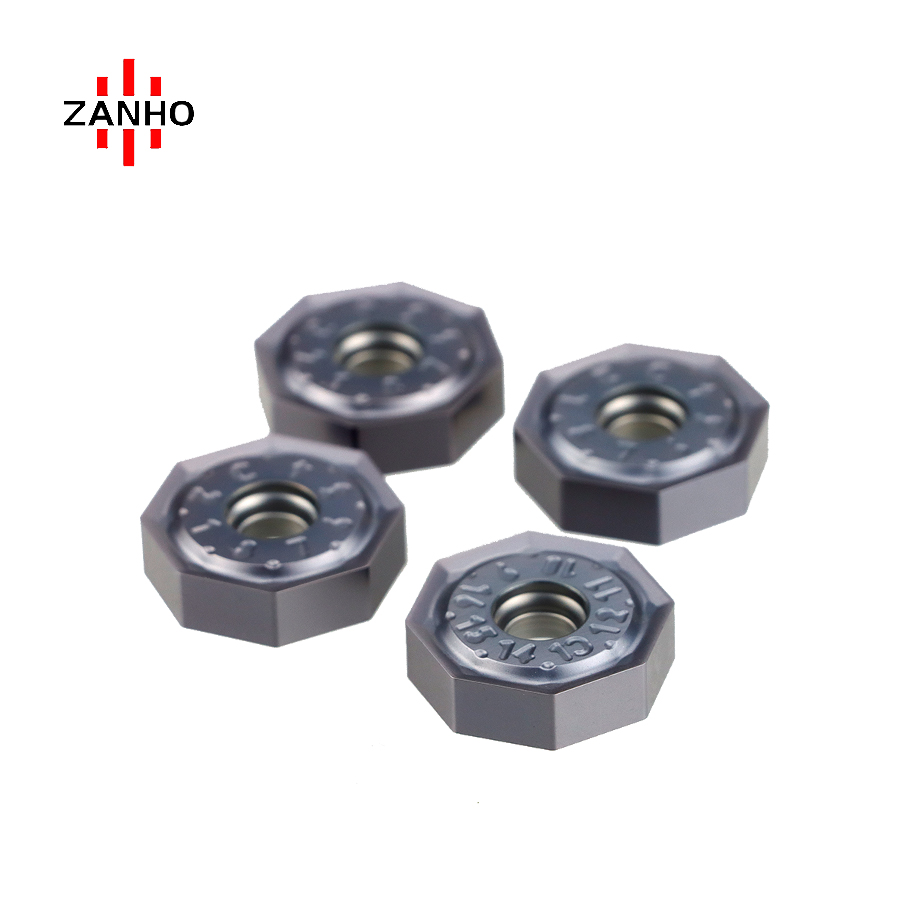

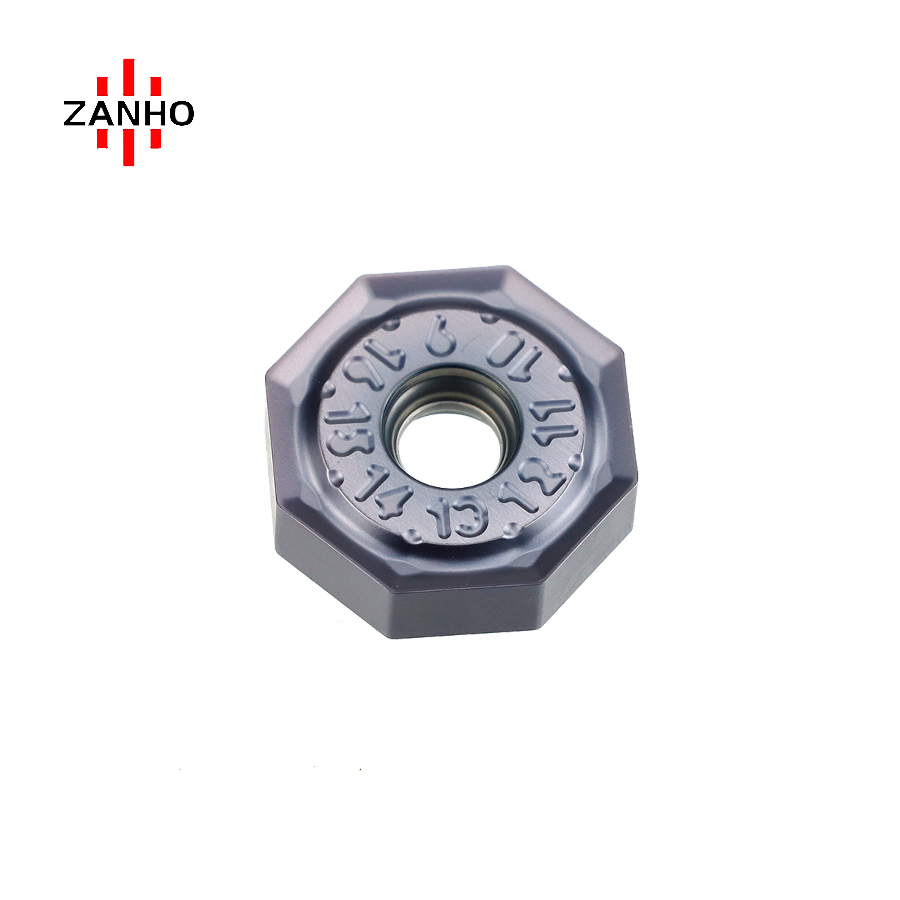

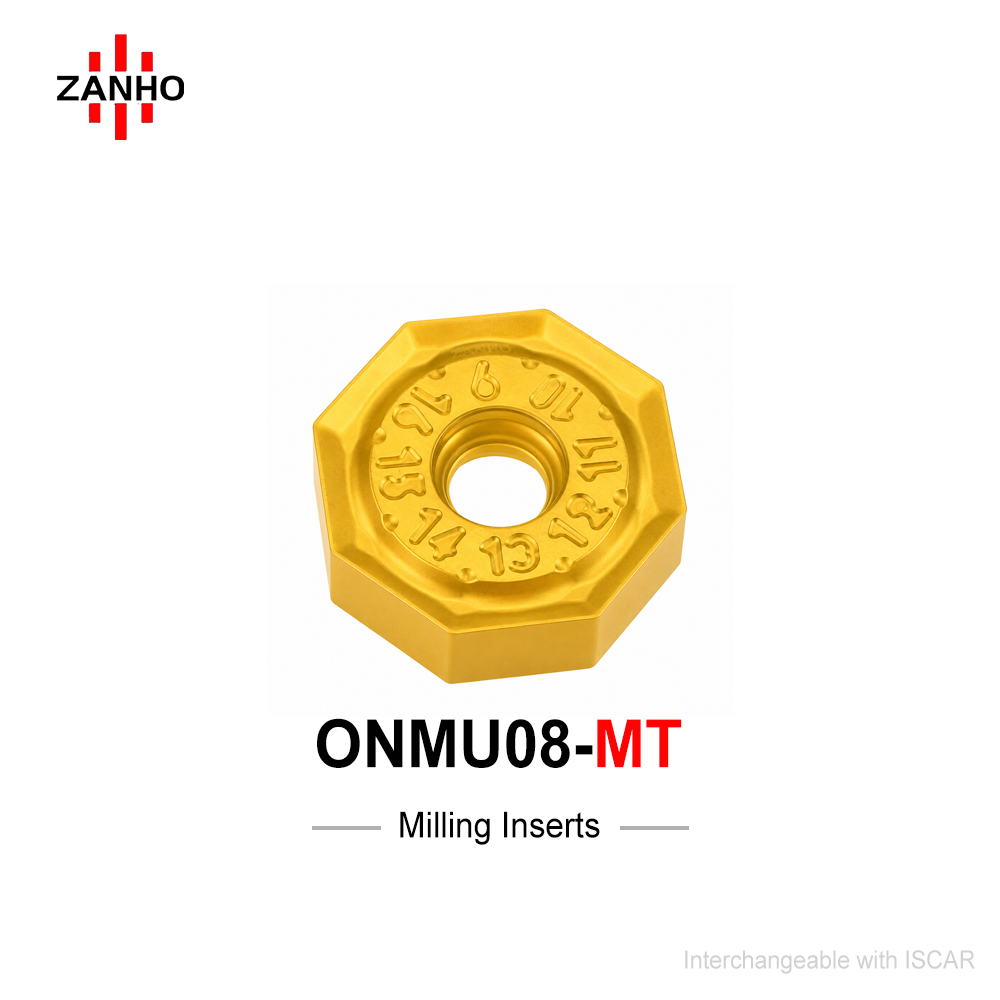

ZANHO ONMU 080608-MT is a heavy-duty double-sided octagonal insert featuring 16 effective cutting edges. Engineered with a negative thick-base structure for maximum rigidity, it is optimized for large stock removal and high-efficiency rough face milling. The MT geometry reduces cutting resistance while ensuring stable chip formation in demanding industrial applications.
Categories:
Learn More
Download PDF
Description

Technical Features

  • 16-Edge Maximum Economy: The double-sided octagonal structure provides 16 precision edges, drastically reducing production costs per part.
  • Heavy-Duty Rigid Base: Thick negative substrate design ensures high tool body rigidity, capable of handling extreme forces during heavy-duty face milling.
  • Optimized MT Geometry: Refined chip curling paths reduce cutting resistance and heat, allowing for faster feed rates and longer tool life.
  • High-Efficiency Roughing: Specifically designed for large stock removal, making it the ideal choice for high-volume industrial machining.

Specifications (mm)

Model D H Hole (d) Thickness (S) T Radius (R)
ONMU 080608-MT 20.2 20.2 5.65 5.85 6.06 0.8

Powerful & Rigid Roughing Performance

The ONMU 08 series is the industrial standard for large-scale face milling. Contact ZANHO for bulk inquiry and technical integration.
