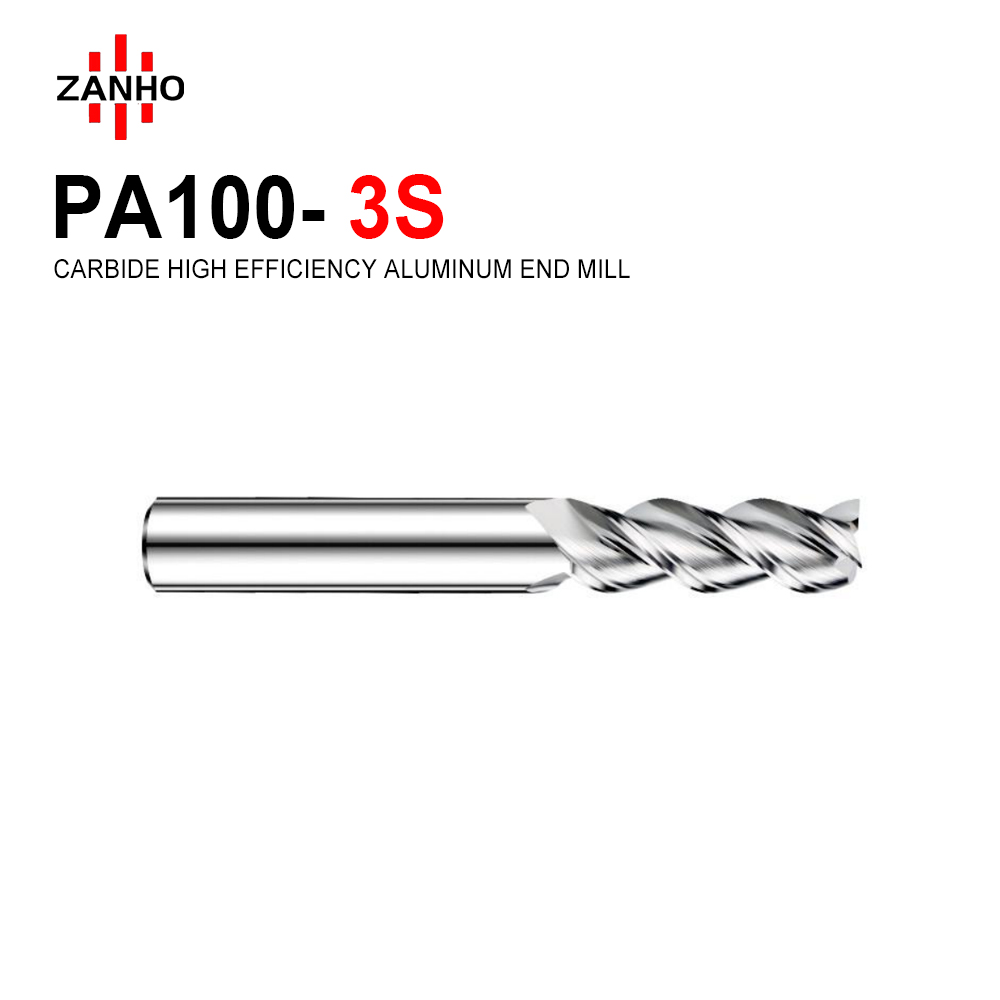

PA100-3S-SQUARE

  • Surface Finish: Specifically designed to achieve a mirror-like finish and eliminate burrs on the workpiece.
  • Helix Angle: 45° Helix Angle for stable, vibration-free cutting during fine finishing.
  • Workpiece: Ideal for Aluminum Alloy, Copper Alloy, and Plastics (Workpiece category N).
  • Advantage: High-precision grinding ensures tight tolerances and exceptional surface quality.
Categories:
Learn More
Download PDF
Description
  • Surface Finish: Specifically designed to achieve a mirror-like finish and eliminate burrs on the workpiece.
  • Helix Angle: 45° Helix Angle for stable, vibration-free cutting during fine finishing.
  • Workpiece: Ideal for Aluminum Alloy, Copper Alloy, and Plastics (Workpiece category N).
  • Advantage: High-precision grinding ensures tight tolerances and exceptional surface quality.

订货号 Order Number 规格 Specification 刀径 D 刃长 L1 柄径 D1 总长 L
PA100-3S-01003 D1*D4*50L*3F 1 3 4 50
PA100-3S-01505 D1.5*D4*50L*3F 1.5 5 4 50
PA100-3S-02006 D2*D4*50L*3F 2 6 4 50
PA100-3S-02508 D2.5*D4*50L*3F 2.5 8 4 50
PA100-3S-33009 D3*D3*50L*3F 3 9 3 50
PA100-3S-03009 D3*D4*50L*3F 3 9 4 50
PA100-3S-03511 D3.5*D4*50L*3F 3.5 11 4 50
PA100-3S-04012 D4*D4*50L*3F 4 12 4 50
PA100-3S-65015 D5*D5*50L*3F 5 15 5 50
PA100-3S-05015 D5*D6*50L*3F 5 15 6 50
PA100-3S-06018 D6*D6*50L*3F 6 18 6 50
PA100-3S-08024 D8*D8*60L*3F 8 24 8 60
PA100-3S-10030 D10*D10*75L*3F 10 30 10 75
PA100-3S-12035 D12*D12*75L*3F 12 36 12 75
PA100-3S-14045 D14*D14*100L*3F 14 45 14 100
PA100-3S-16045 D16*D16*100L*3F 16 45 16 100
PA100-3S-18045 D18*D18*100L*3F 18 45 18 100
PA100-3S-20045 D20*D20*100L*3F 20 45 20 100
PA100-3SH-01004 D1*D4*75L*3F 1 4 4 75
PA100-3SH-01506 D1.5*D4*75L*3F 1.5 6 4 75
PA100-3SH-02008 D2*D4*75L*3F 2 8 4 75
PA100-3SH-02510 D2.5*D4*75L*3F 2.5 10 4 75
PA100-3SH-03012 D3*D4*75L*3F 3 12 4 75
PA100-3SH-33012 D3*D3*75L*3F 3 12 3 75
PA100-3SH-03015 D3*D4*100L*4F 3 15 4 100
PA100-3SH-33015 D3*D3*100L*3F 3 15 3 100
PA100-3SH-04016 D4*D4*75L*3F 4 16 4 75
PA100-3SH-04020 D4*D4*100L*4F 4 20 4 100
PA100-3SH-55020 D5*D5*75L*3F 5 20 5 75
PA100-3SH-06024 D6*D6*75L*3F 6 24 6 75
PA100-3SH-55025 D5*D5*100L*3F 5 25 5 100
PA100-3SH-06030 D6*D6*100L*3F 6 30 6 100
PA100-3SH-06045 D6*D6*150L*3F 6 45 6 150
PA100-3SH-08030 D8*D8*75L*3F 8 30 8 75
PA100-3SH-08035 D8*D8*100L*3F 8 35 8 100
PA100-3SH-08050 D8*D8*150L*3F 8 50 8 150
PA100-3SH-10040 D10*D10*100L*3F 10 40 10 100
PA100-3SH-10050 D10*D10*100L*3F 10 50 10 100
PA100-3SH-10055 D10*D10*150L*3F 10 55 10 150
PA100-3SH-12045 D12*D12*100L*3F 12 45 12 100
PA100-3SH-12050 D12*D12*150L*3F 12 50 12 150
PA100-3SH-12060 D12*D12*150L*3F 12 60 12 150
PA100-3SH-14070 D14*D14*150L*3F 14 70 14 150
PA100-3SH-16075 D16*D16*150L*3F 16 75 16 150
PA100-3SH-18075 D18*D18*150L*3F 18 75 18 150
PA100-3SH-20075 D20*D20*150L*3F 20 75 20 150
PA100-3SH-06050 D6*D6*200L*3F 6 50 6 200
PA100-3SH-08070 D8*D8*200L*3F 8 70 8 200
PA100-3SH-10080 D10*D10*200L*3F 10 80 10 200
PA100-3SH-12080 D12*D12*200L*3F 12 80 12 200
PA100-3SH-140100 D14*D14*200L*3F 14 100 14 200
PA100-3SH-160100 D16*D16*200L*3F 16 100 16 200
PA100-3SH-180100 D18*D18*200L*3F 18 100 18 200
PA100-3SH-200100 D20*D20*200L*3F 20 100 20 200
