PENTA24-PF

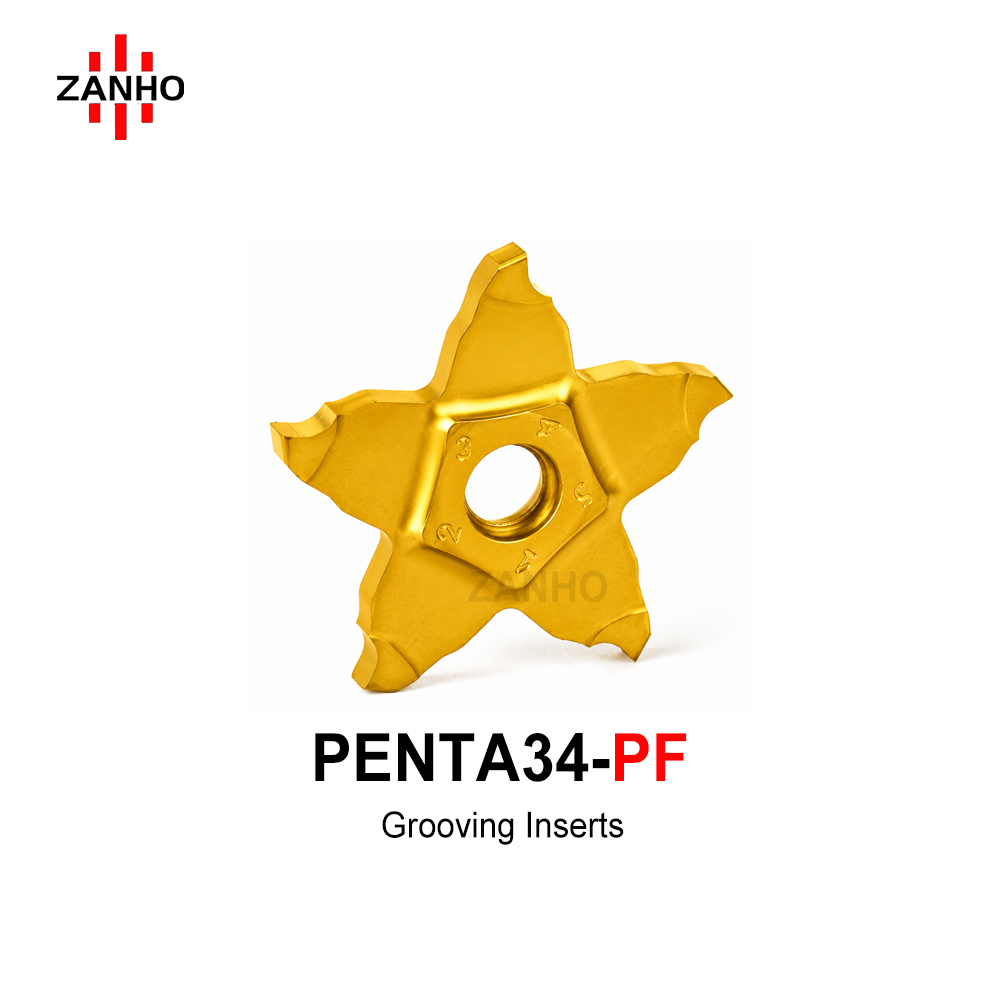

ZANHO PENTA34 series: Heavy-duty 5-edged pentagonal inserts for precision external parting, grooving, and shallow turning. Featuring a larger body than PENTA24, it supports greater depth of cut and higher rigidity for medium-diameter rods. Available in Neutral, Right, and Left-hand versions. Includes a detailed Dmax compatibility chart to optimize CNC machining safety.
Categories:
Learn More
Download PDF
Description

Core Advantages

  • High Rigidity: Larger insert body compared to PENTA24, allowing for deeper and more stable cuts.
  • 5-Edge Efficiency: Pentagonal indexable design offers 5 effective cutting edges per insert.
  • Versatile Feed: Supports radial grooving, parting-off, and shallow transverse turning.
  • N/R/L Compatibility: Available in Neutral (N), Right (R), and Left (L) hand versions to fit all holders.

Dimensions (mm)

Designation W (Width) B A h R (Radius)
PENTA34N150 1.50 8.5 34 4.3 0.15
PENTA34N200 2.00 0.20
PENTA34N250 2.50
PENTA34N300 3.00 10.0
PENTA34N350 3.50
PENTA34N400 4.00

Max Workpiece Diameter Dmax (mm)

Designation B ≤ 5.0 B ≤ 6.0 B ≤ 7.0 B ≤ 8.0 B ≤ 8.5 B ≤ 9.0 B ≤ 10.0
PENTA34 Series Unlimited 350 165 100 55 55 20
