PENTA24-PF

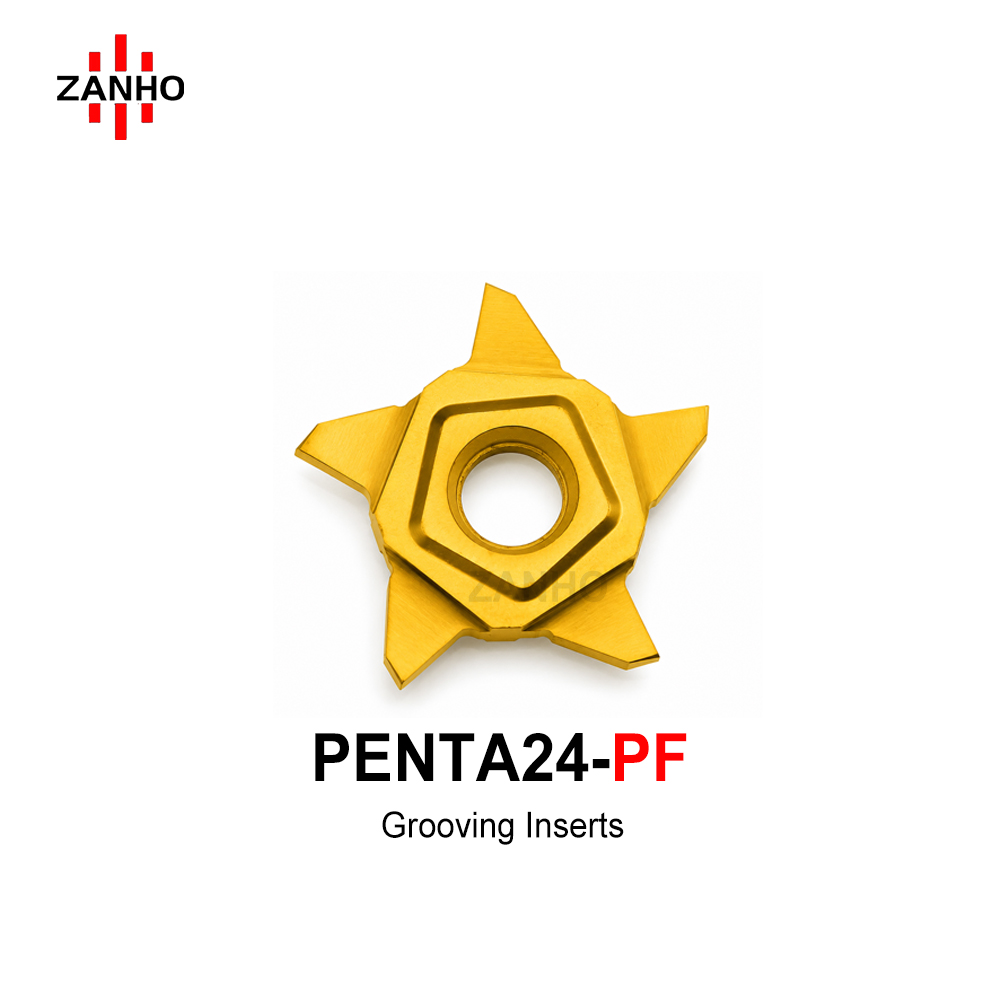

ZANHO PENTA24-PF series: High-efficiency 5-edged pentagonal inserts for precision external parting and grooving. Features a large positive rake angle to minimize cutting resistance and optimize surface finish. Neutral design for R/L holder compatibility. Ideal for small component production on CNC lathes. Includes comprehensive Dmax compatibility data.
Categories:
Learn More
Download PDF
Description

Core Advantages

  • 5-Edge Economy: Pentagonal design provides 5 effective cutting edges for maximum tool utilization.
  • Low Cutting Force: High positive rake angle reduces drag and improves surface quality.
  • Neutral Geometry: Symmetrical insert fits both Right and Left-hand tool posts.
  • Precision Parting: Engineered for stable chip curling and high-accuracy parting of small parts.

Dimensions (mm)

Designation W (Width) B A h R (Radius)
PENTA24N050PF 0.50 2.5 24 4 0.05
PENTA24N100PF 1.00 4.0 0.10
PENTA24N150PF 1.50 6.0
PENTA24N200PF 2.00 0.20
PENTA24N250PF 2.50
PENTA24N300PF 3.00 6.5
PENTA24N350PF 3.50
PENTA24N400PF 4.00

Max Workpiece Diameter Dmax (mm)

Designation B ≤ 3.0 B ≤ 3.5 B ≤ 4.0 B ≤ 4.5 B ≤ 5.0 B ≤ 5.5 B ≤ 5.7 B ≤ 6.0 B ≤ 6.2 B ≤ 6.4
PENTA24N050 20 - - - - - - - - -
PENTA24N100 Unlimited 250 210 50 20 - - - - -
PENTA24N150 to 400 Unlimited 470 180 120 80 70 60
