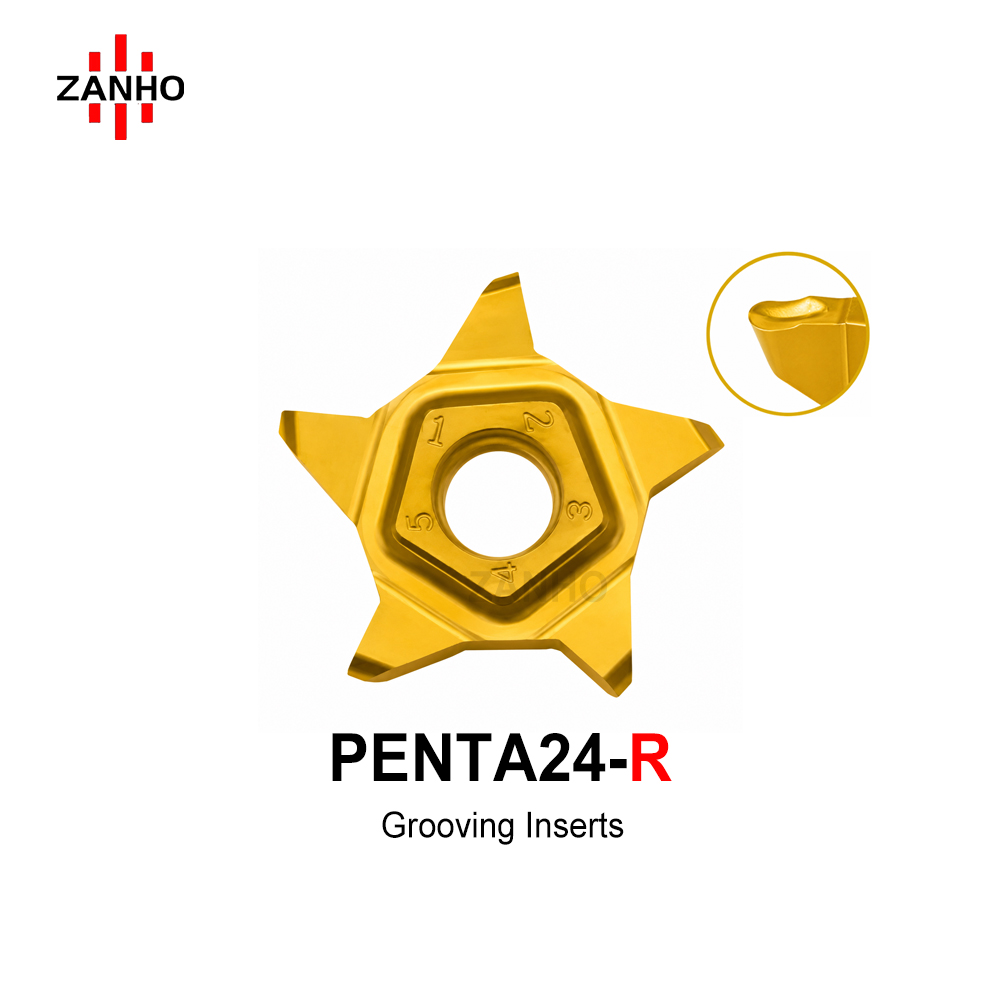

PENTA24-R

ZANHO PENTA24N-R series: High-precision 5-edged pentagonal inserts with a full radius profile. Designed for external R-grooving, circular seal grooves, and undercuts. Molded radius tips (R0.5-R1.5) eliminate the need for circular interpolation, ensuring high precision and efficiency. Neutral design fits both Right and Left-hand tool holders. Optimized for external CNC applications.
Categories:
Learn More
Download PDF
Description

Technical Features

  • Full Radius Profile: Integrated molded radius tip for direct R-groove forming without interpolation.
  • 5-Edge Economy: Pentagonal indexable base structure provides 5 effective cutting edges.
  • Neutral Geometry: Symmetrical N-type design compatible with both Right and Left-hand holders.
  • Precision Ground: Molded radius and groove width ensure high dimensional accuracy and surface finish.
  • Application: Specialized for external R-grooves, undercut undercuts, and circular seal grooves.

PENTA24N-R Specification Table

Model Designation Full Radius (R)
PENTA24N100-R0.5 R0.5
PENTA24N140-R0.7 R0.7
PENTA24N150-R0.75 R0.75
PENTA24N157-R0.59 R0.59
PENTA24N200-R1.0 R1.0
PENTA24N239-R1.2 R1.2
PENTA24N250-R1.5 R1.5
PENTA24N300-R1.5 R1.5
PENTA24N350-R1.5 R1.5
PENTA24N400-R1.5 R1.5
