PNCU0905GNER‑MJ

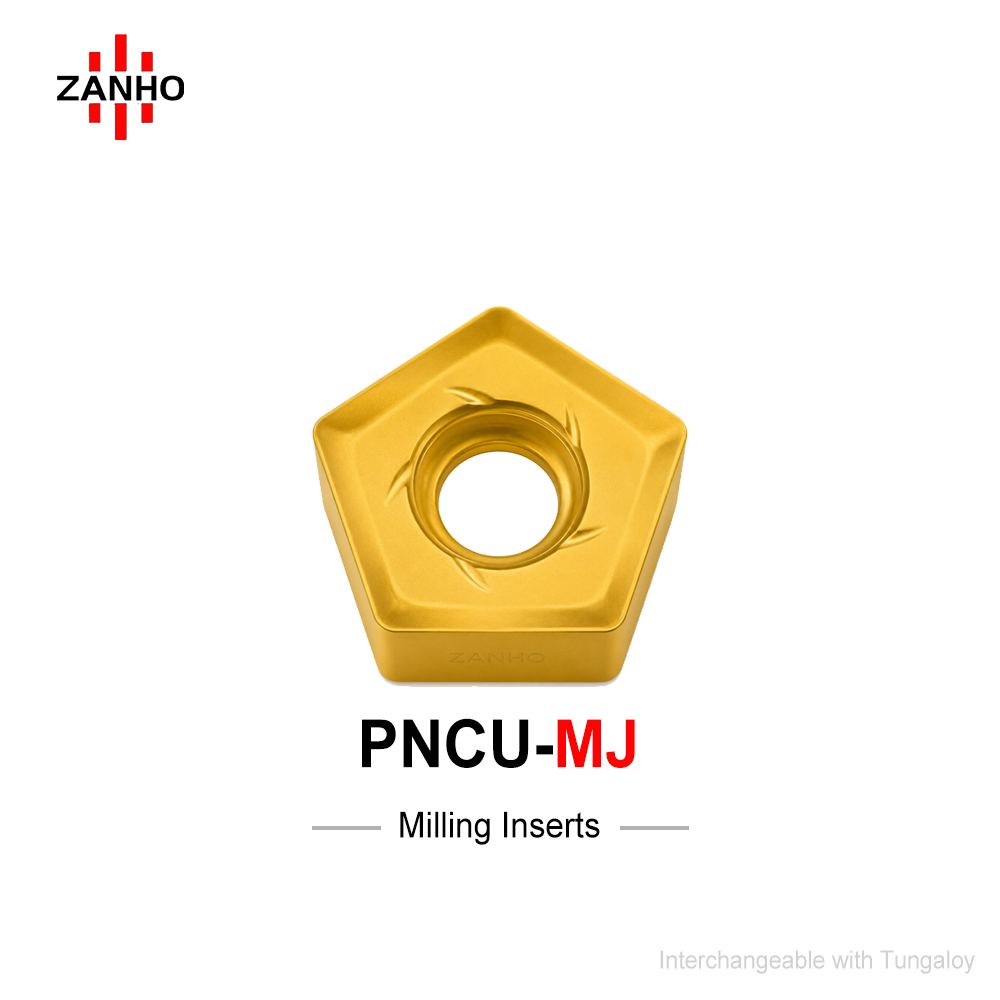

ZANHO PNCU0905GNER-MJ is a high-efficiency right-hand 10-edge milling insert featuring a double-sided pentagonal structure. Designed for face and step shoulder milling, the universal MJ chipbreaker ensures stable chip control even in light interrupted cutting. With a 6.40mm max depth of cut and robust substrate, it delivers exceptional metal removal rates with the industry's highest cost-per-edge economy.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • 10-Edge Pentagonal Economy: Unique double-sided design providing ten precision cutting corners per insert, maximizing tool life and offering the lowest total tooling cost for volume manufacturing.
  • Right-Hand GNER Geometry: Specifically engineered for right-hand tool holders, ensuring precise tool orientation and optimal cutting force distribution for stable machining.
  • MJ Universal Chipbreaker: Optimized for versatile chip management across multiple materials, providing consistent chip fragmentation and preventing buildup in roughing passes.
  • Interrupted Cut Reliability: High substrate toughness allows the insert to withstand light interrupted cutting and process fluctuations without edge chipping.
  • Stable 6.40mm Metal Removal: Supports axial depths of cut up to 6.40mm, making it highly efficient for face milling, step milling, and high-speed ramping.

Insert Dimensional Specifications (mm)

Model IC (Inscribed Circle) S (Thickness) LE (Edge Length) RE (Radius) APMX (Max Depth) Hand Edges
PNCU 0905GNER-MJ 12.20 6.00 8.90 0.80 6.40 Right Hand 10

Maximize Your Productivity with 10 Edges

ZANHO PNCU series deliver uncompromised precision and the industry's best economic value. Contact us for bulk B2B pricing and material grade availability.
