R390-11-PM

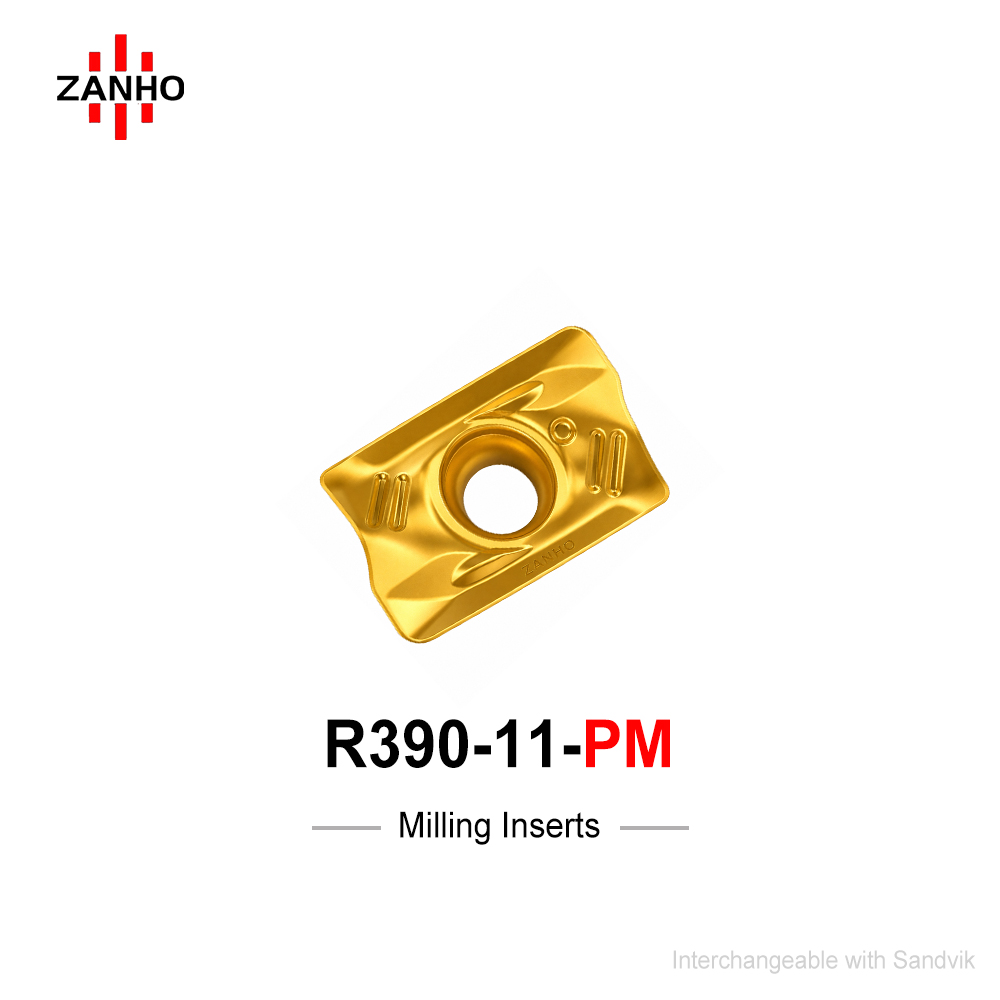

ZANHO R390 11T308M-PM is a versatile square shoulder insert featuring a medium PM chipbreaker. It balances edge strength with light cutting action, making it ideal for semi-finishing to light roughing. Equipped with a wiper edge (Bs) for superior wall finish, it supports ramping, profiling, and face milling across multiple materials.
Learn More
Download PDF
Description

Key Technical Advantages

  • Balanced PM Chipbreaker: Optimized medium rake geometry provides a perfect compromise between edge toughness and light cutting performance, suitable for interrupted cuts.
  • Integrated Wiper Edge: Features a high-precision wiper geometry (Bs=1.34mm) that ensures exceptional surface finish on vertical walls and floors.
  • Stable Chip Evacuation: The optimized curved chipbreaker surface reduces friction and ensures consistent chip curling even at medium depths of cut.
  • Multi-Process Versatility: A single insert solution for 90° square shoulder milling, face milling, ramping, and 3D profiling.
  • High Process Security: Designed for stable performance in both semi-finishing and light roughing, reducing unpredictable edge failure.

Insert Dimensional Specifications (mm)

Model L (Length) W (Width) H (Total Height) d (Hole Dia) R (Radius) Bs (Wiper)
R390 11T308M-PM 11.83 6.96 10.5 2.8 0.8 1.34

Universal Solution for Square Shoulder Milling

ZANHO R390-PM inserts provide high-stability machining across diverse conditions. Contact us for bulk B2B stock and material compatibility charts.
