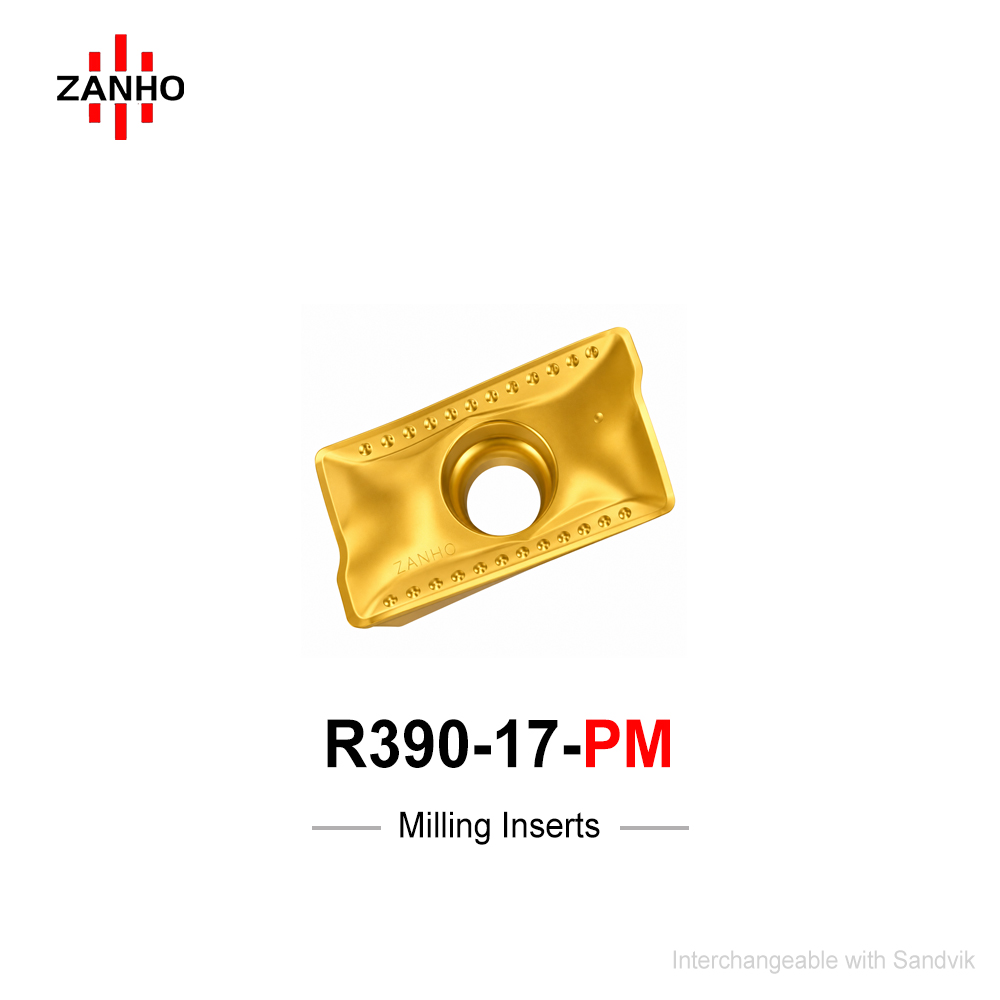

Key Technical Advantages

• Large-Scale Milling Capacity: The 17mm edge length allows for significantly higher depths of cut (Ap), drastically increasing metal removal rates in heavy machinery and mold bases.
• PM Universal Chipbreaker: Optimized medium rake geometry provides stable chip curling and evacuation across a wide range of medium-duty cutting conditions.
• 1.6mm Integrated Wiper: Features a specialized wide wiper edge (Bs) that maintains excellent surface integrity even during aggressive feed per tooth settings.
• Enhanced Edge Security: Balanced edge strength prevents chipping during interrupted cuts or when machining through casting skin and scale.
• Versatile Milling Forms: Supports 90° square shoulder milling, face milling, helical ramping, and complex 3D profiling with a single insert type.

Insert Dimensional Specifications (mm)
