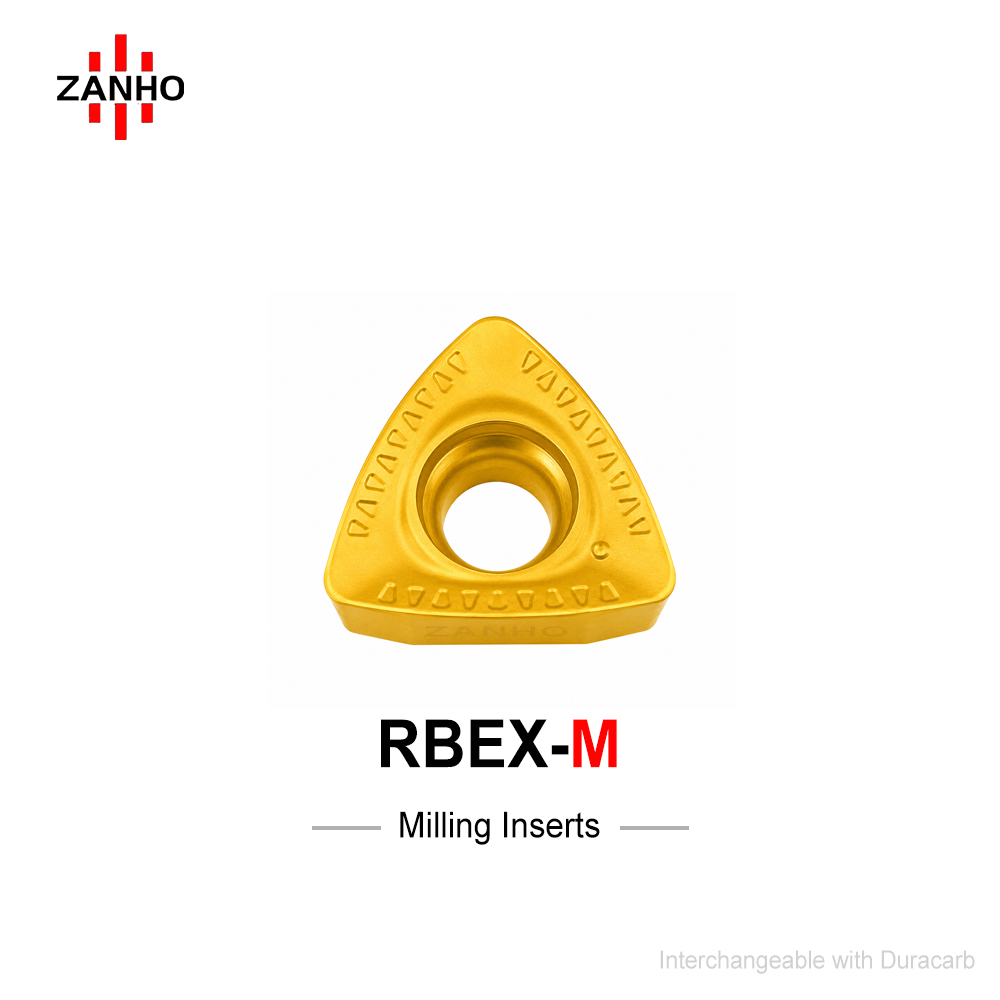

RBEX-M

ZANHO RBET/RBEX-M series is a high-performance triangular ball nose insert for mold profiling and surface roughing. Featuring the M chipbreaker and 3 effective cutting edges, it delivers light cutting action with superior impact resistance. Optimized for low-vibration machining in deep cavities, it features a reinforced center hole for maximum process security.
Categories:
Learn More
Download PDF
Description

Core Advantages

  • 3-Edge Economic Value: Single-sided triangular design provides three precision cutting edges, maximizing tool life and reducing costs per edge.
  • Segmented M Chipbreaker: Triangular flow ribs along the edge break long chips into segments, significantly improving evacuation and reducing heat.
  • Ball Nose Profiling: Specifically engineered for mold cavity profiling and complex 3D surface roughing with high stability.
  • High Positive Rake: Large positive geometry lowers cutting force and spindle load, effectively suppressing vibration in deep cavity work.
  • Reinforced Structure: Thickened center hole area resists extreme clamping pressure and impact loads during heavy-duty roughing.

Technical Specifications (mm)

Model Diameter (D) Thickness (t) Radius (R) Height (H) Hole (d)
RBET 30-M 10.5 4.76 15 12.61 4.5
RBEX 40-M 12.7 5.56 20 15.46 5.6
RBEX 50-M 12.7 5.56 25 15.69 5.6

Master Mold Profiling with RBEX-M Stability

ZANHO RBEX series delivers process security for complex 3D surfaces. Contact us for bulk inquiry and technical support.
