RCKT-DR

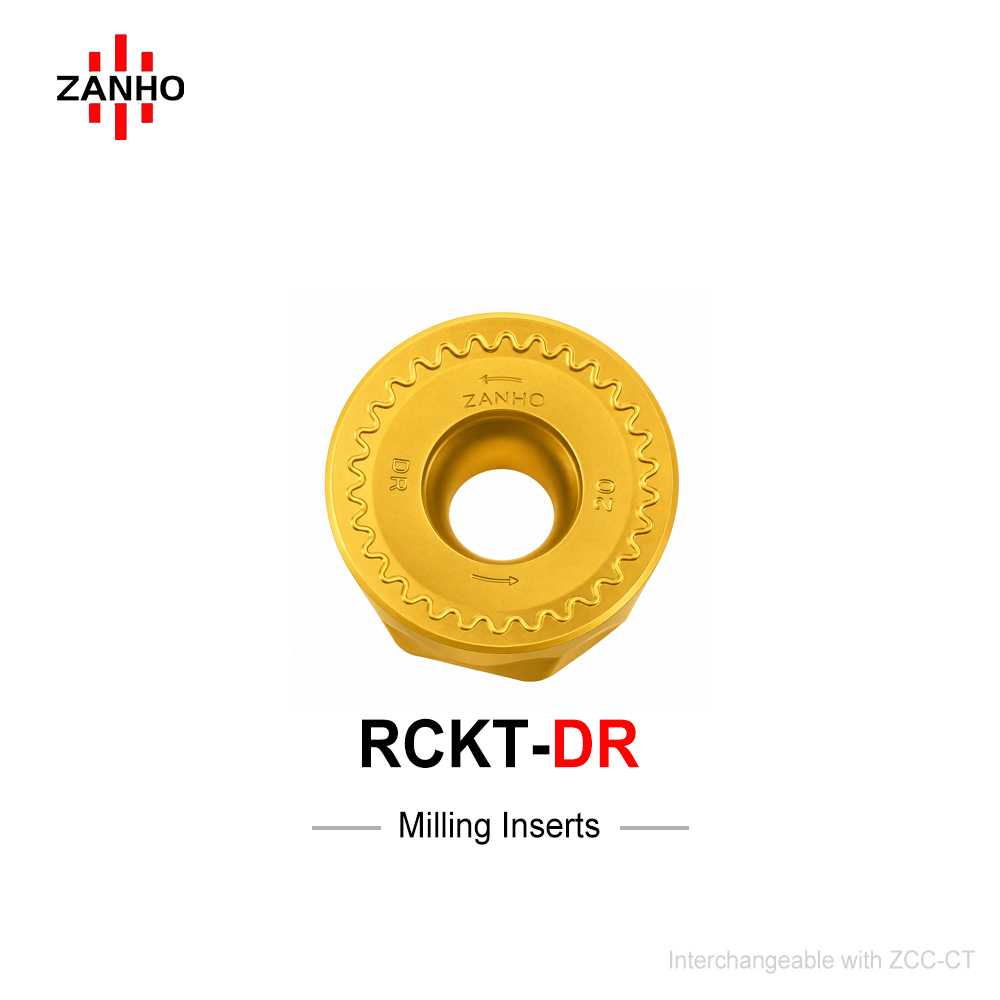

ZANHO RCKT 2006MO-DR is a high-performance 20mm round insert featuring active wavy chip-splitting geometry to reduce cutting force and heat. Designed for semi-finishing to roughing, its double-sided structure doubles the usable edges, delivering maximum productivity and economic value in deep cavity machining.
Learn More
Download PDF
Description

Key Technical Advantages

  • Active Wavy Chip-Splitting: Unique serrated edge geometry segments wide chips into narrower strips, drastically reducing evacuation resistance and spindle torque in deep cavities.
  • Double-Sided Economic Design: Features a double-sided pocket structure that provides twice the usable edges compared to single-sided inserts, significantly lowering tool cost-per-part.
  • Balanced Edge Strength: Engineered with a medium land width to reconcile sharpness and toughness, effectively resisting micro-chipping during interrupted cutting or scale removal.
  • High Volume Metal Removal: The large 20mm (R10) format is ideal for massive allowance removal in mold making and heavy machinery components.

Insert Dimensional Specifications (mm)

Model D (Diameter) S (Thickness) d (Hole Dia) R (Radius) a° (Angle) Edges
RCKT 2006MO-DR 20 6.35 6.55 10 7 Double-sided

Ready for High-Efficiency Heavy Milling?

ZANHO RCKT series delivers the power and economy needed for large-scale machining. Contact us for bulk B2B inquiry and material grade support.
