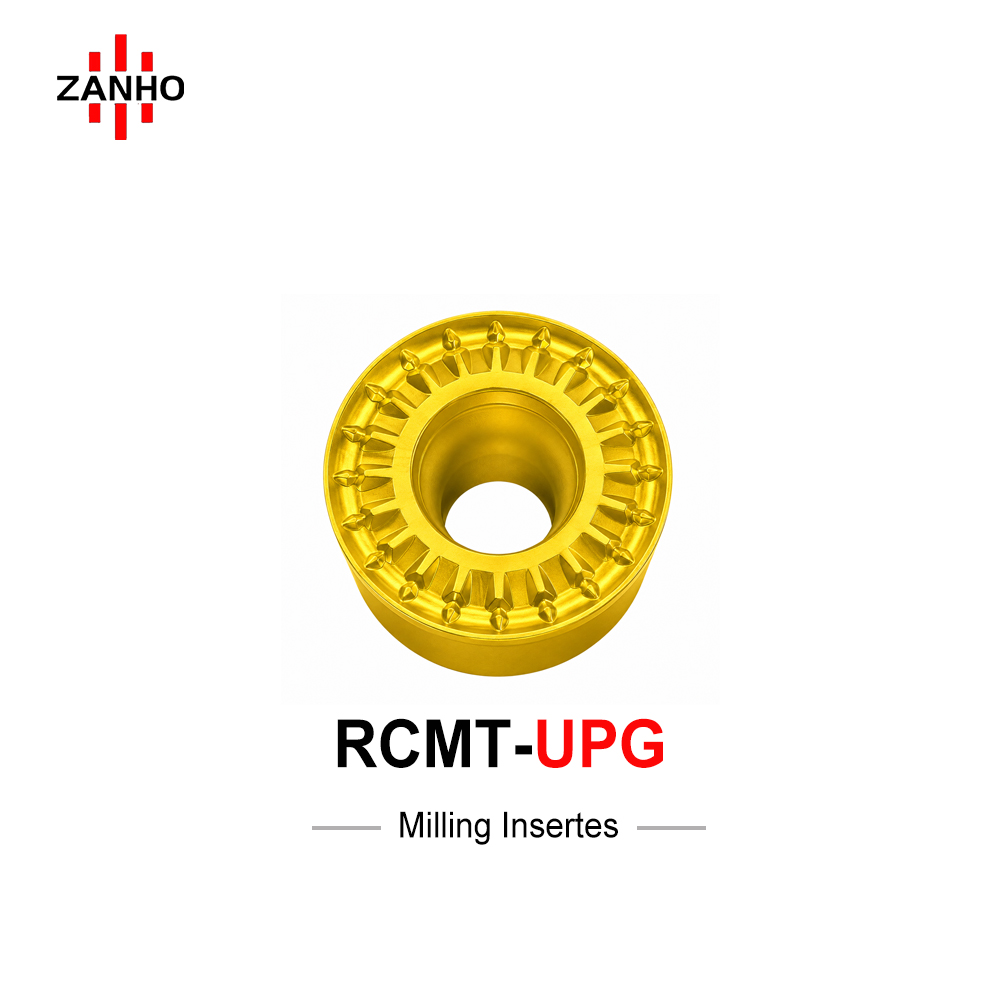

RCMT-UPG

ZANHO RCMT1606M0UPG is a heavy-duty round carbide insert specifically engineered for aggressive rough turning and profiling. Featuring the specialized UPG roughing chipbreaker, it delivers exceptional chip control and edge strength in high-load environments. Primarily used for steel roughing and railway wheel machining, it supports a massive depth of cut (ap) up to 7.0mm and high feed rates, ensuring maximum metal removal rates and process stability.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Heavy-Duty Roughing Specialist: Engineered for extreme metal removal rates (MRR), capable of handling axial depth of cut (ap) up to 7.0mm in stable conditions.
  • UPG High-Load Chipbreaker: Specifically designed for roughing operations, providing reliable chip fragmentation even under high pressure and large cutting cross-sections.
  • Round Geometry Strength: The circular shape provides the strongest possible cutting edge, making it highly resistant to impact and thermal shock during interrupted steel turning.
  • Railway Industry Optimized: A proven solution for the demanding requirements of railway wheel re-profiling and machining, ensuring long tool life and consistent finish.
  • Profiling Versatility: Excellent for multi-directional profiling and radius machining where high edge integrity is critical.

Technical Specifications

Model IC (mm) S (mm) D1 (mm) fn (mm/r) ap (mm)
RCMT1606M0UPG 16.0 6.35 5.5 0.3 - 0.75 2.5 - 7.0

Need Aggressive Steel Roughing?

ZANHO RCMT-UPG series is the ultimate choice for heavy-load machining and railway industry applications. Contact us for bulk wholesale pricing and technical parameter support.
