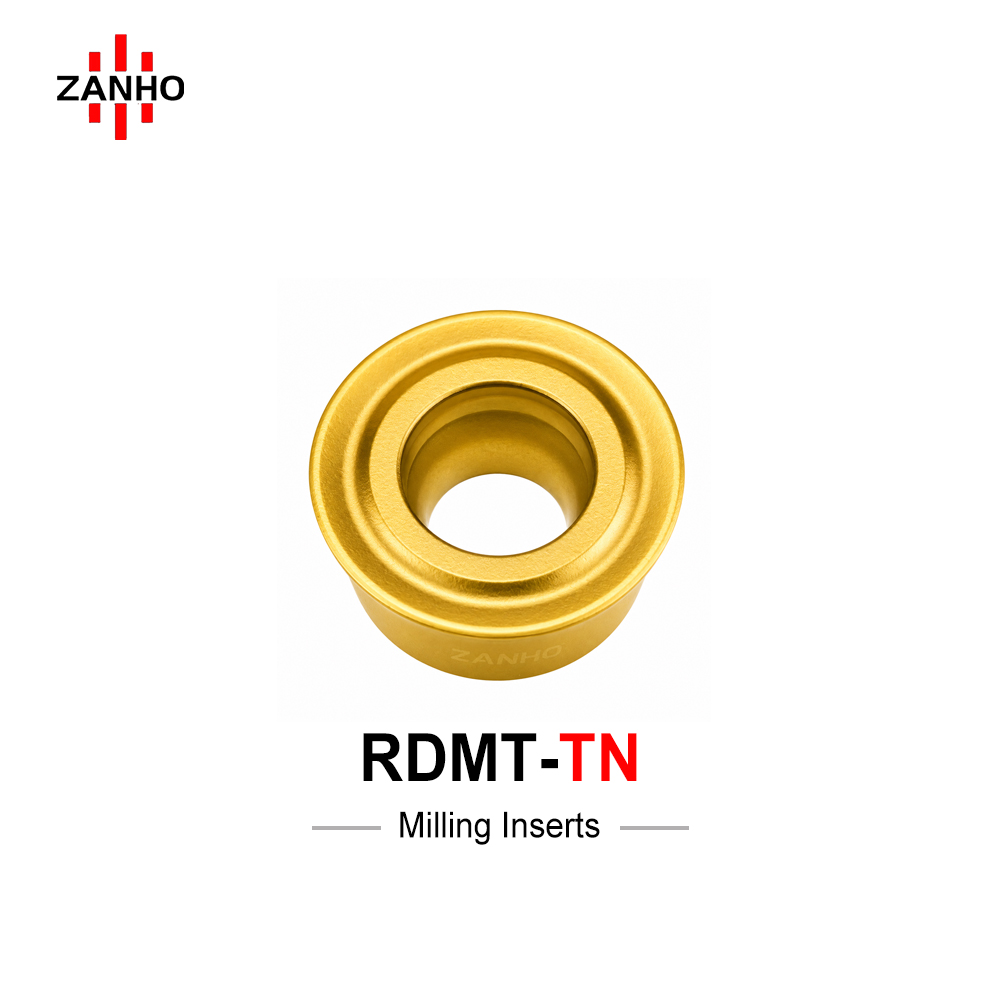

RDMT-TN

ZANHO RDMT-TN series: Single-sided round positive insert optimized for 3D profiling and mold cavity roughing. Features an 11° relief angle and double-ring step geometry to ensure low cutting resistance and directional chip evacuation. High-reliability choice for ERX-R5/R6 tool holders in steel and cast iron applications.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • 11° Positive Geometry: High relief angle design significantly reduces cutting resistance and spindle load, ideal for stable machining on small-to-medium power CNCs.
  • Double-Ring Step Geometry: TN chipbreaker with advanced double-ring rake face ensures stable, directional chip curling, preventing chip packing in deep mold cavities.
  • High Edge Reliability: Reinforced cutting edges balance sharpness with impact resistance, excelling in both continuous and light interrupted profiling.
  • Profiling Excellence: Optimized for 3D contoured surfaces, ramping, and helical interpolation with high dimensional stability and superior floor finish.
  • Full-Circle Economy: The round design allows for multi-edge usage through indexing, maximizing tool life and reducing tool change frequency.

Technical Specifications (mm)

Model Type I.C (Diameter) Thickness (S) Hole (D1) Radius (Re) Relief Angle
RDMT10T3MO-TN(R5) 10.00 3.97 4.40 5.00 11°
RDMT1204MO-TN(R6) 12.00 4.76 5.20 6.00 11°

Precision Solution for Mold and Die Cavities

ZANHO RDMT-TN series is compatible with ERX-R5 and ERX-R6 cutters. Contact us for bulk B2B inquiry and tool grade support.
