RPMT-JS

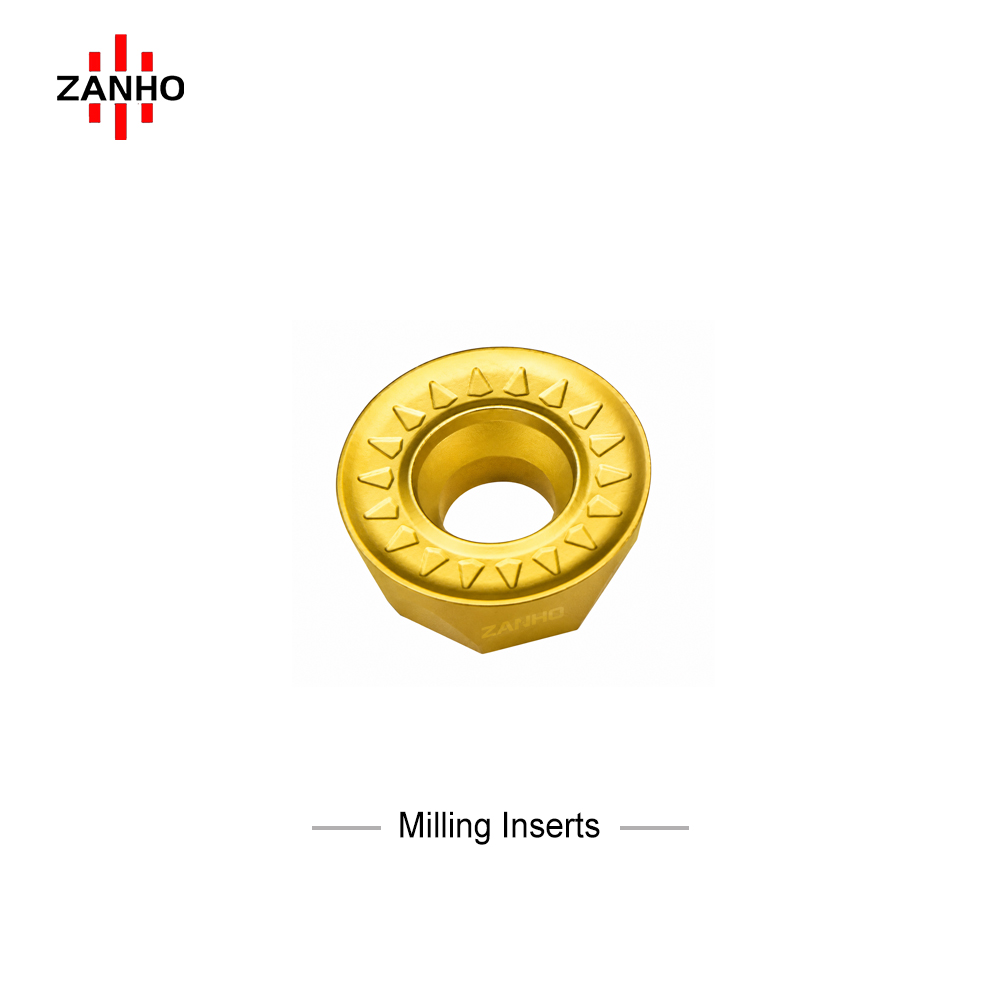

ZANHO RPMT-JS series: Single-sided round positive insert optimized for 3D profiling and cavity milling. Features an 11° relief angle to minimize cutting forces and directional chip-breaking bumps for stable evacuation. The "E" type wiper edge design ensures superior surface finish on complex contoured surfaces across multiple materials.
Categories:
Learn More
Download PDF
Description

Technical Advantages

  • 11° Positive Geometry: High relief angle design significantly reduces cutting resistance and power consumption, ideal for low-to-medium power CNC machines.
  • Directional Chip-Breaking: Features specialized bumps on the rake face to force chip curling and evacuation, preventing chip wrapping in deep cavities.
  • Integrated Wiper (E-Type): Precision-ground wiper edge geometry delivers polished surface results on 3D contoured parts, reducing secondary finishing time.
  • Reinforced Edge Treatment: Precision micro-honing balances cutting sharpness with edge toughness, ensuring stability in light interrupted cuts.
  • Universal Profiling: Reliable performance across Carbon Steel, Alloy Steel, and Mold Steel for high-efficiency profiling and ramping.

Technical Specifications (mm)

Model Type I.C (Diameter) Thickness (S) Hole (D1) Radius (Re) Relief Angle
RPMT08T2MOE-JS(R4) 8.00 2.38 3.40 4.00 11°
RPMT10T3MOE-JS(R5) 10.00 3.97 4.40 5.00 11°
RPMT1204MOE-JS(R6) 12.00 4.76 5.20 6.00 11°

Precision 3D Profiling for Mold Making

ZANHO RPMT-JS series delivers industrial efficiency for complex surface machining. Contact us for bulk B2B inquiry and holder compatibility.
