RT-81

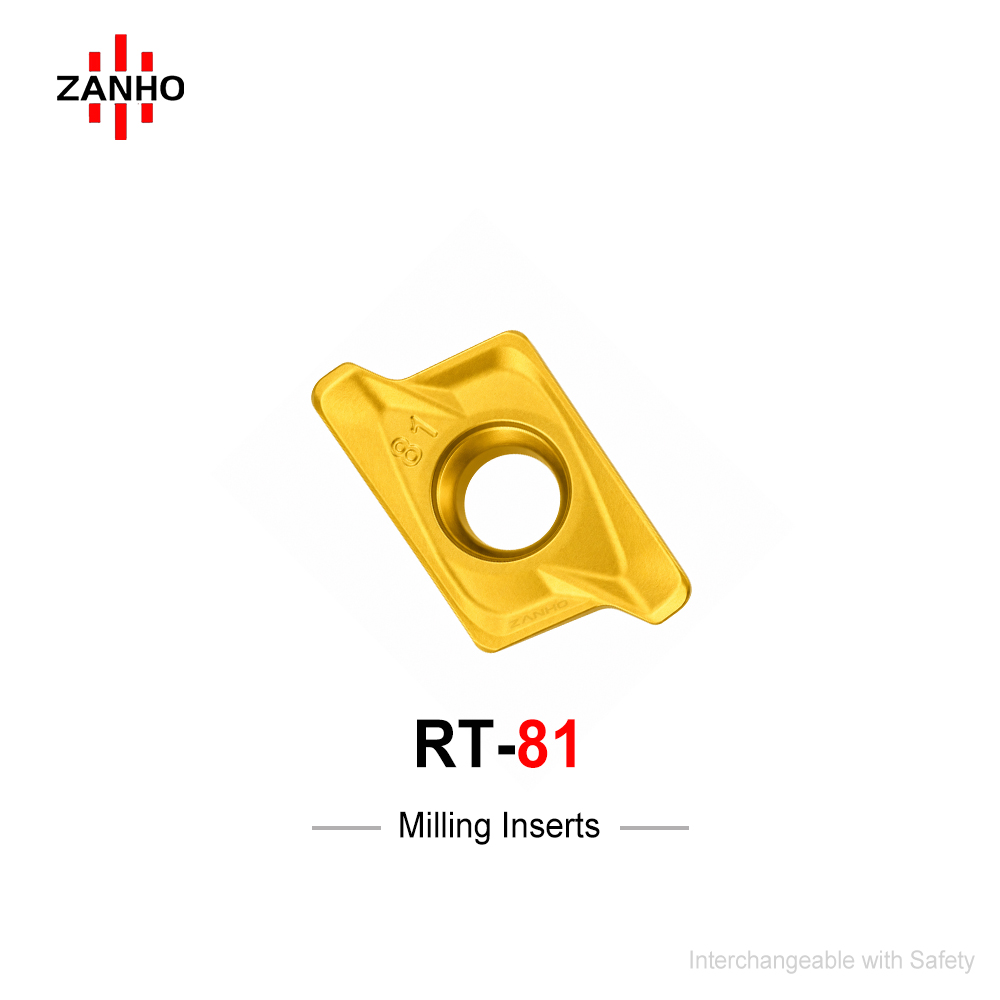

ZANHO RT070204R-81 and RT100308R-81 are precision small-format high-feed milling inserts. Specifically engineered to achieve high feed per tooth (fz) while maintaining low cutting loads, they are the ideal solution for low-rigidity machine tools. These single-sided 2-edge inserts deliver exceptional stability in pocketing, square shoulder milling, and ramping.
Categories:
Learn More
Download PDF
Description

Core Advantages

  • High Feed Efficiency: Optimized small-format geometry allows for extreme feed per tooth (fz) rates, maximizing metal removal in light roughing.
  • Low Cutting Load: Specifically designed to reduce spindle torque and radial forces, making it perfect for small or low-rigidity CNC machines.
  • Multi-Process Versatility: High performance across pocketing, square shoulder milling, and ramping operations with stable chip control.
  • 2-Edge Economy: Single-sided design with 2 precision cutting edges provides a cost-effective and reliable solution for small-scale machining.

Specifications (mm)

Model I.C (D) Thickness (S) Length (L) Radius (Re) W (Width) Hole (d1)
RT 070204R-81 4.30 2.38 6.40 0.4 1.10 2.40
RT 100308R-81 6.35 3.40 9.10 0.8 1.60 3.60

Precision Roughing for Light Machinery

ZANHO RT series ensures process security where rigidity is a challenge. Contact us for bulk B2B inquiry and tool matching.
