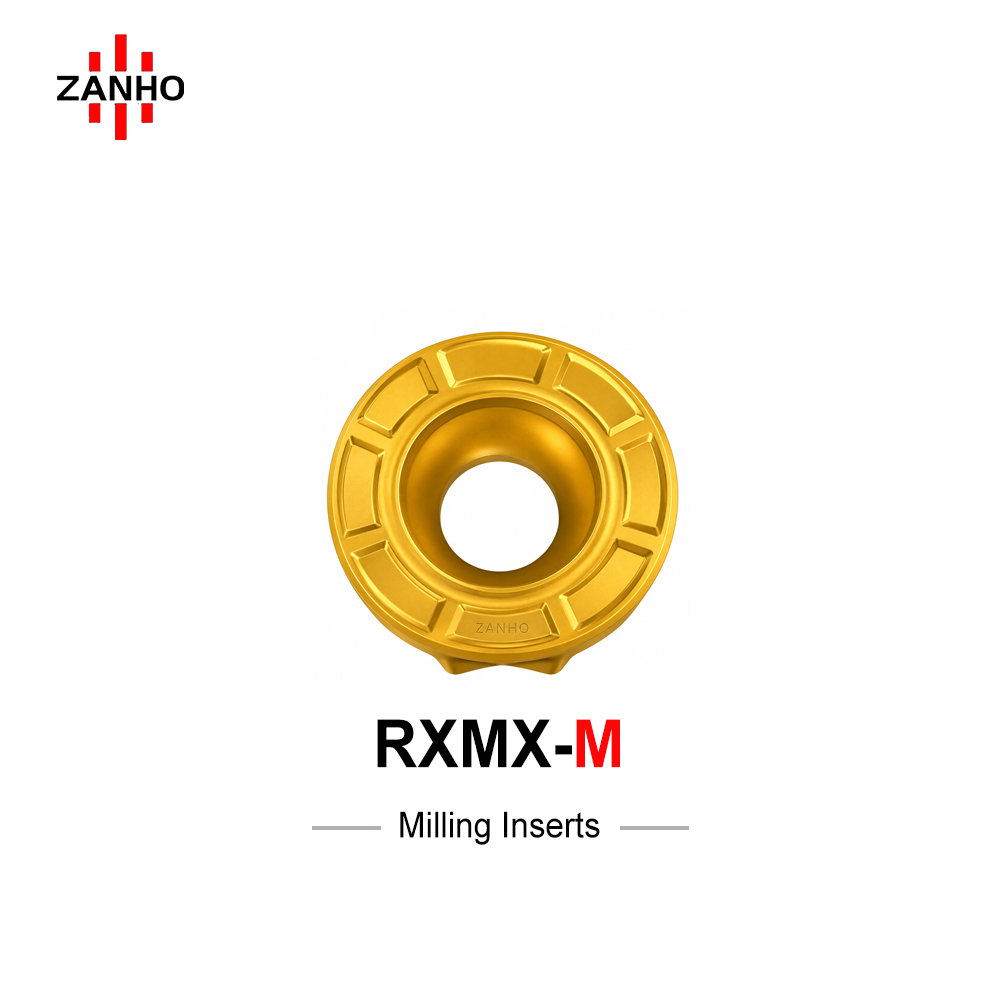

RXMX-M

ZANHO RXMX-M is a versatile circular milling insert optimized for stable profiling, copy milling, and cavity roughing. Featuring a robust universal M chipbreaker, it balances edge strength with smooth chip evacuation to minimize heat generation. Its multi-indexing design ensures high tool utilization and maximum economic value in Steel and Cast Iron applications.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Exceptional Profiling Stability: The circular geometry is ideal for complex profiling, contouring, and large-allowance cavity roughing, ensuring a smooth transition between passes.
  • Universal M-Chipbreaker: Optimized curved pocket design facilitates stable chip curling and evacuation, effectively reducing friction and thermal load at the cutting edge.
  • Reinforced Edge Geometry: Engineered to withstand medium-load fluctuations and mechanical shock, providing high reliability in continuous and semi-interrupted cutting.
  • High Indexing Efficiency: The multi-indexing round design allows for multiple cutting corner changes, significantly increasing tool life and reducing cost-per-edge.
  • Multi-Purpose Machining: Fully supports face milling, side milling, and 3D surface machining on standard CNC equipment.

Insert Dimensional Specifications (mm)

Model D (Diameter) S (Thickness) d (Hole Dia) a° (Angle) r (Radius)
RXMX 1003-M 10 3.18 3.9 5 15
RXMX 12T3-M 12 3.97 - 6 -

Enhance Your Profiling Precision

ZANHO RXMX series inserts provide the reliability and efficiency needed for 3D machining. Contact us for bulk B2B inquiry and technical material guides.
