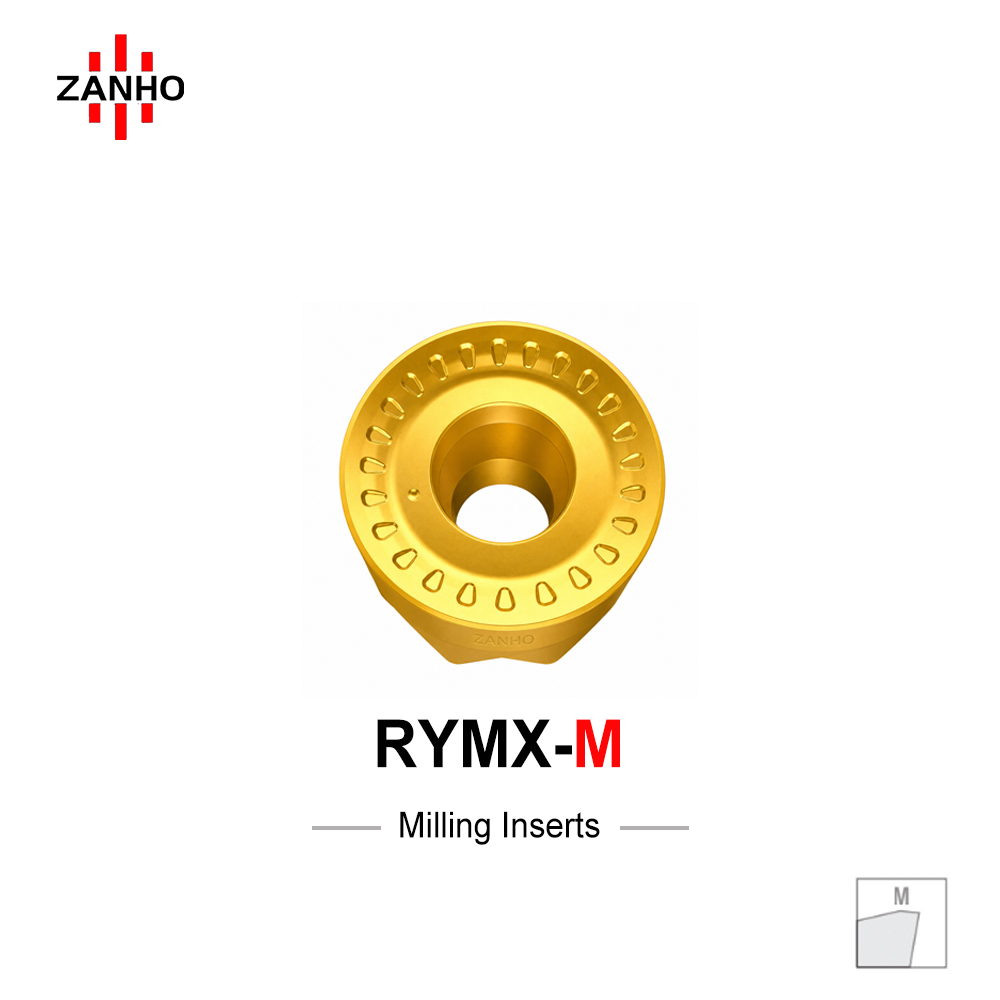

RYMX-M

ZANHO RYMX-M is a robust round milling insert featuring a thick body and a large positive rake for light-cutting action and superior edge strength. Designed for multi-indexing profiling and cavity roughing, its universal M chipbreaker handles a wide feed range (FZ 0.10–0.50 mm/t). It ensures high productivity and stability in both Steel and Cast Iron applications.
Categories:
Learn More
Download PDF
Description

Key Technical Advantages

  • Robust Thick-Body Design: Engineered with a reinforced substrate to withstand large depths of cut and high-feed impacts, ensuring maximum edge security.
  • Large Positive Rake Geometry: Reduces cutting resistance and thermal generation, providing a light, fast cutting action while suppressing vibrations in delicate workpieces.
  • Universal M-Chipbreaker: The "Do-it-all" geometry balances cutting force and edge toughness, optimized for both semi-finishing and heavy roughing.
  • Wide Feed Versatility: Capable of handling feed rates from 0.10 to 0.50 mm/tooth, delivering consistent chip control across varied machining conditions.
  • Circular Multi-Edge Economy: The round indexing design allows for multiple cutting corner rotations, significantly extending tool life and reducing overall tooling costs.

Insert Dimensional Specifications (mm)

Model D (Diameter) S (Thickness) d (Hole Dia) R (Radius) a° (Angle)
RYMX 1003-M 10 3.18 / 5 /
RYMX 2007-M 20 7.0 6.5 10 9

Ready for Powerful Round Insert Milling?

ZANHO RYMX-M series delivers high-impact efficiency for copy milling and contouring. Contact us for bulk B2B pricing and grade selection guides.

Looking for the right specification, grade, or coating for your market?

Send us your requirements below. Our sales team will provide product recommendations, competitive pricing, and OEM options based on your needs. For distributors, wholesalers & importers — bulk order inquiries are welcome.

Fill in the form below and get your quotation.
