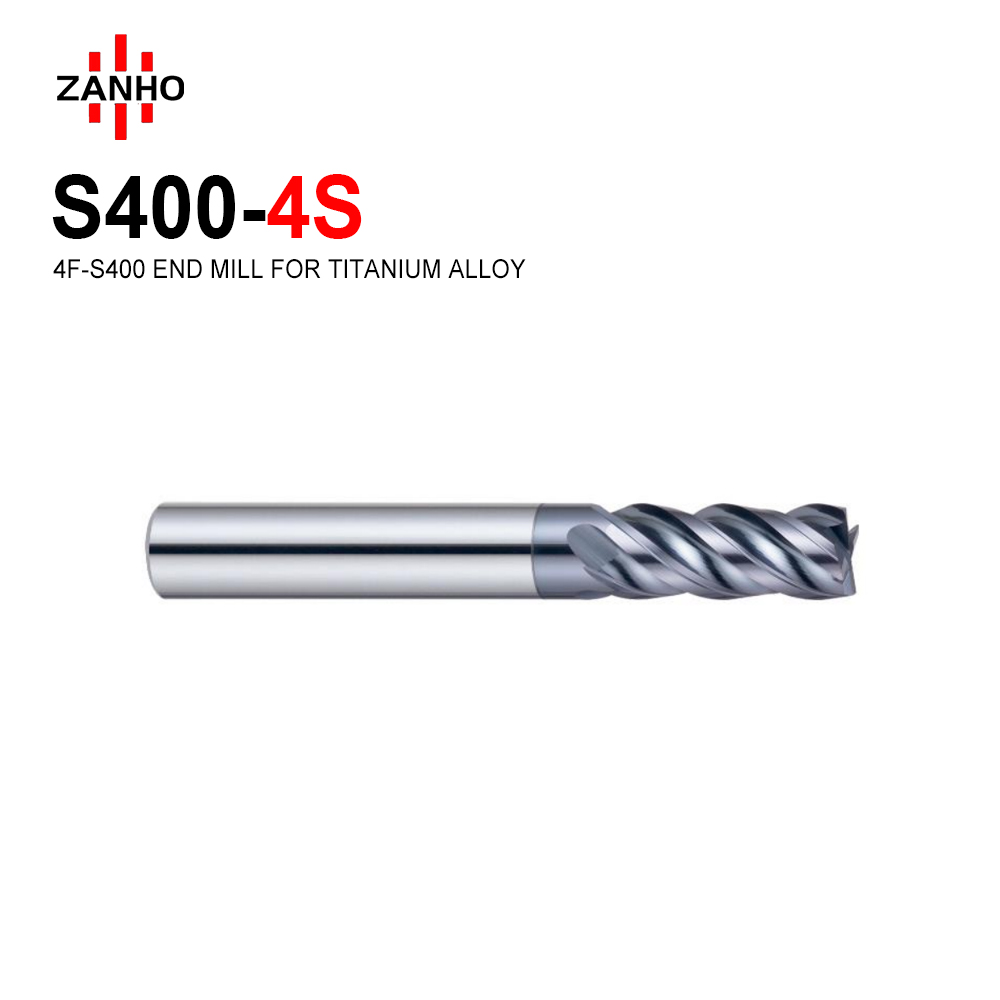

S400-4S-SQUARE

  • Specialty: Precision engineered for Titanium Alloy, Stainless Steel, and Heat-resistant alloys.
  • Material: Ultra-fine micro-grain carbide for superior edge sharpness and toughness.
  • Design: 36°/38° Variable Helix to optimize chip evacuation and control cutting heat.
  • Coating: Advanced AlCrN Coating for extreme wear resistance in difficult materials.
  • Workpiece: Highly effective for materials up to 55 HRC.
  • Benefit: Reduced chatter and extended tool life in demanding aerospace and medical machining.
Categories:
Learn More
Download PDF
Description

订货号 Order Number 规格 Specification 刀径 D 刃长 L1 柄径 D1 总长 L
S400-4S-01003 D1*D4*50L*4F 1 3 4 50
S400-4S-01505 D1.5*D4*50L*4F 1.5 5 4 50
S400-4S-02006 D2*D4*50L*4F 2 6 4 50
S400-4S-02507 D2.5*D4*50L*4F 2.5 8 4 50
S400-4S-33009 D3*D3*50L*4F 3 9 3 50
S400-4S-03009 D3*D4*50L*4F 3 9 4 50
S400-4S-63009 D3*D6*50L*4F 3 9 6 50
S400-4S-03511 D3.5*D4*50L*4F 3.5 11 4 50
S400-4S-04012 D4*D4*50L*4F 4 12 4 50
S400-4S-64012 D4*D6*50L*4F 4 12 6 50
S400-4S-55015 D5*D5*50L*4F 5 13 5 50
S400-4S-06015 D6*D6*50L*4F 6 15 6 50
S400-4S-08020 D8*D8*60L*4F 8 20 8 60
S400-4S-10025 D10*D10*75L*4F 10 25 10 75
S400-4S-12030 D12*D12*75L*4F 12 30 12 75
S400-4S-14045 D14*D14*100L*4F 14 45 14 100
S400-4S-16045 D16*D16*100L*4F 16 45 16 100
S400-4S-18045 D18*D18*100L*4F 18 45 18 100
S400-4S-20045 D20*D20*100L*4F 20 45 20 100
S400-4SH-04016 D4*D4*75L*4F 4 16 4 75
S400-4SH-04020 D4*D4*100L*4F 4 20 4 100
S400-4SH-06024 D6*D6*75L*4F 6 24 6 75
S400-4SH-06030 D6*D6*100L*4F 6 30 6 100
S400-4SH-06040 D6*D6*150L*4F 6 40 6 150
S400-4SH-08030 D8*D8*75L*4F 8 30 8 75
S400-4SH-08035 D8*D8*100L*4F 8 35 8 100
S400-4SH-08045 D8*D8*150L*4F 8 45 8 150
S400-4SH-10040 D10*D10*100L*4F 10 40 10 100
S400-4SH-10055 D10*D10*150L*4F 10 55 10 150
S400-4SH-12050 D12*D12*100L*4F 12 50 12 100
S400-4SH-12055 D12*D12*150L*4F 12 55 12 150
S400-4SH-14060 D14*D14*150L*4F 14 60 14 150
S400-4SH-16075 D16*D16*150L*4F 16 75 16 150
S400-4SH-18075 D18*D18*150L*4F 18 75 18 150
S400-4SH-20075 D20*D20*150L*4F 20 75 20 150
