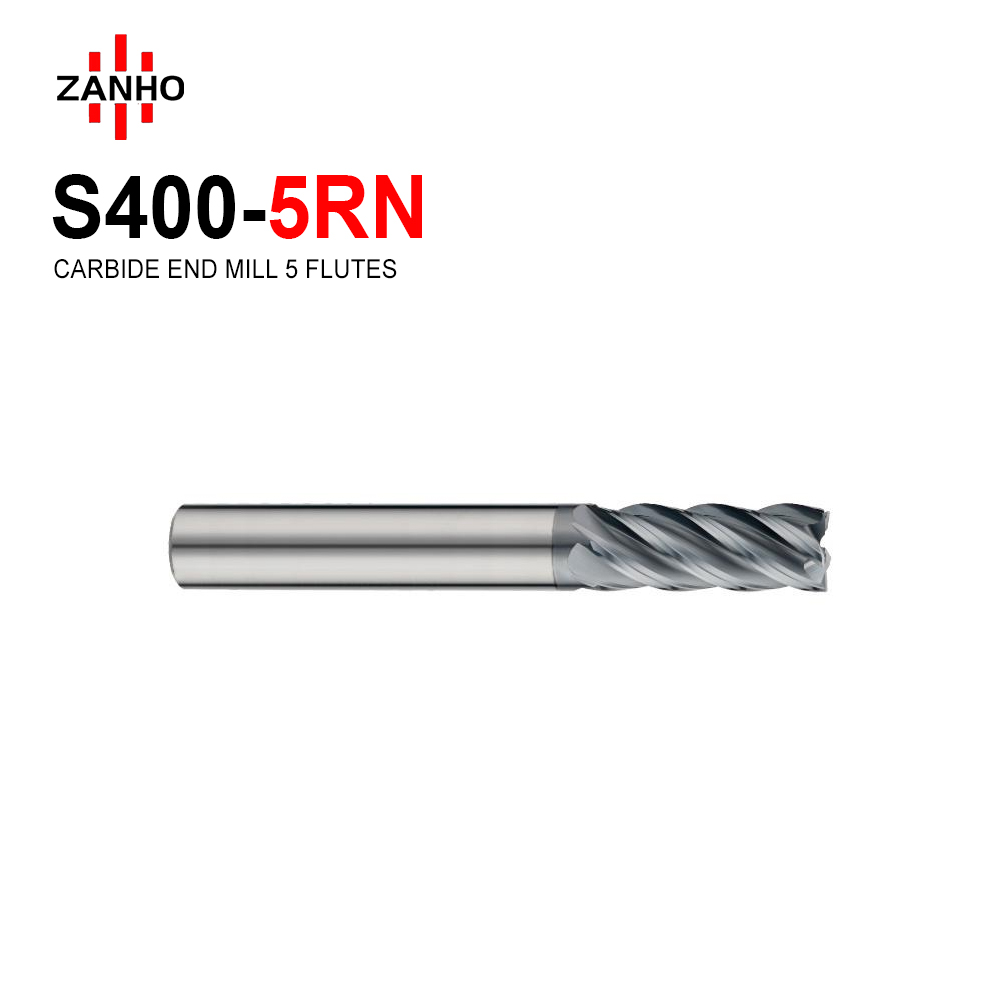

S400-5RN

  • Optimized for Titanium: Specialized 5-flute (5F) design engineered to excel in Titanium Alloy and Heat-resistant alloys.
  • Deep Reach Capability: Features Neck Clearance (Clearance Length), allowing for deep-pocket and deep-step milling without tool interference.
  • Chatter-free Machining: 36°/38° Variable Helix suppressed vibration and harmonics, ensuring a superior surface finish in tough materials.
  • Heat & Wear Resistance: Advanced AlCrN Coating provides exceptional protection against high cutting temperatures and abrasive wear.
Categories:
Learn More
Download PDF
Description
  • Optimized for Titanium: Specialized 5-flute (5F) design engineered to excel in Titanium Alloy and Heat-resistant alloys.
  • Deep Reach Capability: Features Neck Clearance (Clearance Length), allowing for deep-pocket and deep-step milling without tool interference.
  • Chatter-free Machining: 36°/38° Variable Helix suppressed vibration and harmonics, ensuring a superior surface finish in tough materials.
  • Heat & Wear Resistance: Advanced AlCrN Coating provides exceptional protection against high cutting temperatures and abrasive wear.

Order Number Specification D d1 L1 Clearance length D1 L
S400-5RN-06005 D6R0.5*12H*D6*50L*5F 6R0.5 5.7 12 5 6 50
S400-5RN-08005 D8R0.5*22H*D8*60L*5F 8R0.5 7.7 22 5 8 60
S400-5RN-10005 D10R0.5*22H*D10*75L*5F 10R0.5 9.7 22 5 10 75
S400-5RN-12005 D12R0.5*27H*D12*75L*5F 12R0.5 11.7 27 5 12 75
S400-5RN-14005 D14R0.5*40H*D14*100L*5F 14R0.5 13.7 40 10 14 100
S400-5RN-16005 D16R0.5*40H*D16*100L*5F 16R0.5 15.7 40 10 16 100
S400-5RN-18005 D18R0.5*40H*D18*100L*5F 18R0.5 17.7 40 10 18 100
S400-5RN-20005 D20R0.5*40H*D20*100L*5F 20R0.5 19.7 40 10 20 100
S400-5RN-25010 D25R1*40H*D25*100L*5F 25R1 24.7 40 10 25 100
S400-5RNH-06005 D6R0.5*17H*D6*75L*5F 6R0.5 5.7 17 5 6 75
S400-5RNH-06005A D6R0.5*22H*D6*100L*5F 6R0.5 5.7 22 5 6 100
S400-5RNH-08005 D8R0.5*22H*D8*75L*5F 8R0.5 7.7 22 5 8 75
S400-5RNH-08005A D8R0.5*30H*D8*100L*5F 8R0.5 7.7 30 5 8 100
S400-5RNH-10005 D10R0.5*35H*D10*100L*5F 10R0.5 9.7 35 5 10 100
S400-5RNH-10005A D10R0.5*40H*D10*150L*5F 10R0.5 9.7 40 5 10 150
S400-5RNH-12005 D12R0.5*40H*D12*100L*5F 12R0.5 11.7 40 5 12 100
S400-5RNH-12005A D12R0.5*40H*D12*150L*5F 12R0.5 11.7 40 5 12 150
S400-5RNH-14005 D14R0.5*40H*D14*150L*5F 14R0.5 13.7 40 10 14 150
S400-5RNH-16005 D16R0.5*45H*D16*150L*5F 16R0.5 15.7 45 10 16 150
S400-5RNH-18005 D18R0.5*45H*D18*150L*5F 18R0.5 17.7 45 10 18 150
S400-5RNH-20005 D20R0.5*50H*D20*150L*5F 20R0.5 19.7 50 10 20 150
S400-5RNH-25010 D25R1*55H*D25*150L*5F 25R1 24.7 55 10 25 150
