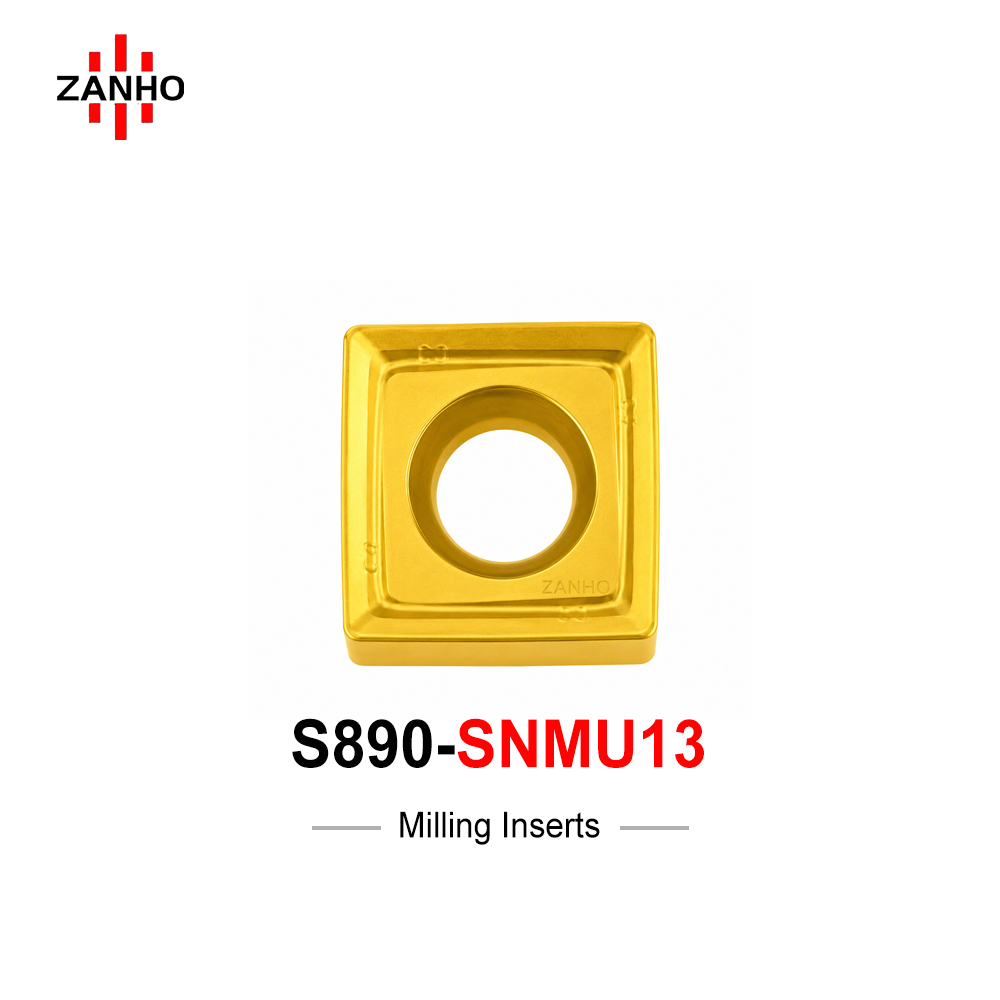

S890‑SNMU1305PNTR

ZANHO S890-SNMU1305PNTR is a high-performance milling insert optimized for face milling and 88° shallow shoulder operations. Featuring a massive 9.00mm max depth of cut (APMX) and an integrated 1.80mm wiper edge (BS), it delivers exceptional surface quality in semi-finishing. Perfectly compatible with S890-SSB disc cutters for synchronous side milling of industrial components.
Categories:
Learn More
Download PDF
Description

Core Performance Features

  • Large Face Milling Efficiency: Primarily designed for high-volume face roughing and semi-finishing, maximizing metal removal rates on large flat surfaces.
  • 88° Optimized Lead Angle: Ideal for shallow shoulder side-wall milling with reduced interference. Achieves a maximum axial depth of cut (APMX) of up to 9mm.
  • Integrated Wiper Edge: Built-in 1.80mm wiper (BS) ensures superior floor surface quality during semi-finishing, often eliminating secondary operations.
  • Synchronous Disc Milling: Compatible with S890-SSB disc-style cutters for highly efficient double-sided synchronous milling of lugs and ear components.
  • Roughing Specialist: Engineered for extreme durability in roughing and semi-roughing of steel and diverse industrial alloys.

Specifications (mm)

Model I.C (IC) Thickness (S) Hole (d) Radius (r) Wiper (BS) Max APMX
S890-SNMU1305PNTR 13.00 mm 5.60 mm 5.20 mm 0.80 mm 1.80 mm 9.00 mm

High-Volume Productivity for Industrial Milling

ZANHO S890 series provides stable roughing and quality semi-finishing. Contact us for bulk B2B inquiry and disc cutter compatibility guides.
