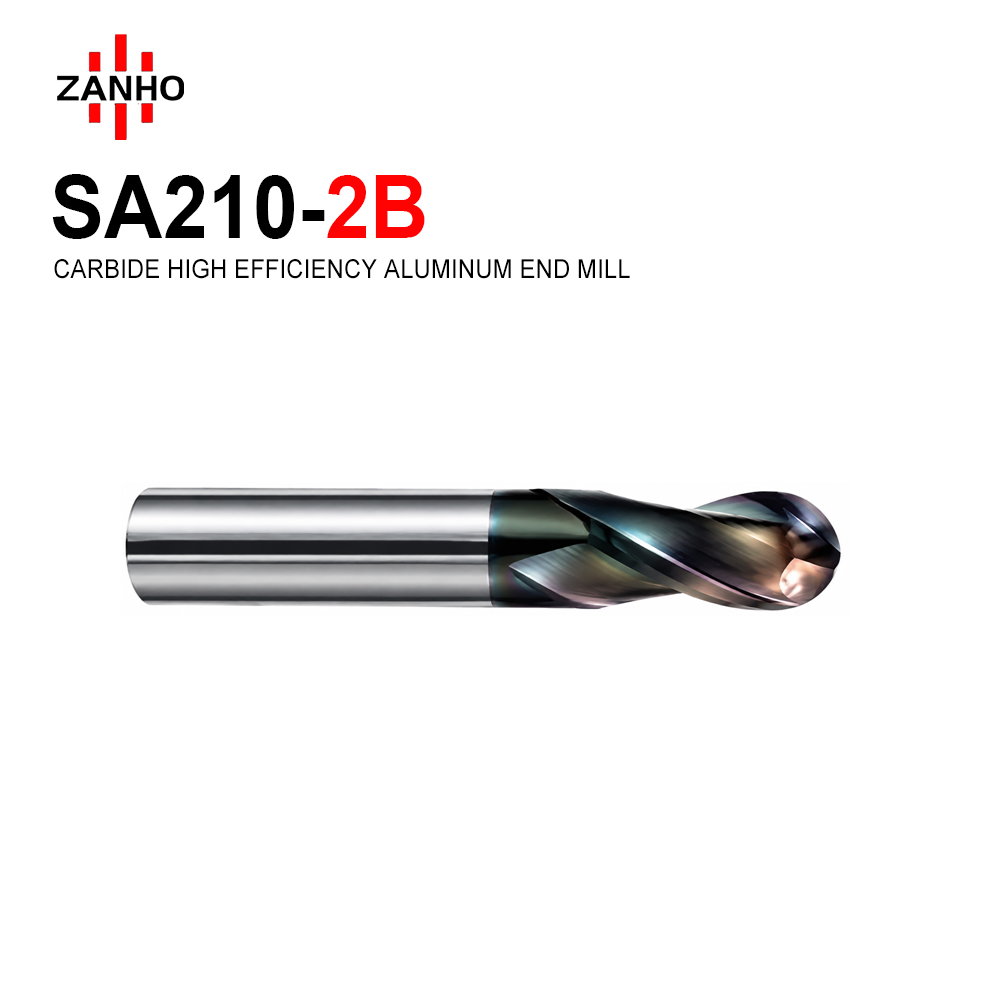

SA210-2B-BALL NOSE

  • Coating: Premium TAC Coating (Colorful) provides ultra-low friction and prevents chip welding.
  • Helix Angle: 35° Helix Angle ensures stable cutting and effective chip evacuation in soft metals.
  • Workpiece: Ideal for Aluminum Alloy, Copper, and non-ferrous metals (Workpiece category N).
  • Precision: Wide range of precision sizes available from R0.5 to R10.0.
  • Advantage: Delivers a superior surface finish and high-efficiency material removal without buildup.
Categories:
Learn More
Download PDF
Description
  • Coating: Premium TAC Coating (Colorful) provides ultra-low friction and prevents chip welding.
  • Helix Angle: 35° Helix Angle ensures stable cutting and effective chip evacuation in soft metals.
  • Workpiece: Ideal for Aluminum Alloy, Copper, and non-ferrous metals (Workpiece category N).
  • Precision: Wide range of precision sizes available from R0.5 to R10.0.
  • Advantage: Delivers a superior surface finish and high-efficiency material removal without buildup.

订货号 Order Number 规格 Specification 刀径 D 刃长 L1 柄径 D1 总长 L
SA210-2B-01002 R0.5*D4*50L*2F 1 2 4 50
SA210-2B-01503 R0.75*D4*50L*2F 1.5 3 4 50
SA210-2B-02004 R1*D4*50L*2F 2 4 4 50
SA210-2B-02505 R1.25*D4*50L*4F 2.5 5 4 50
SA210-2B-33006 R1.5*D3*50L*2F 3 6 3 50
SA210-2B-03006 R1.5*D4*50L*2F 3 6 4 50
SA210-2B-03507 R1.75*D4*50L*2F 3.5 7 4 50
SA210-2B-04008 R2*D4*50L*2F 4 8 4 50
SA210-2B-55010 R2.5*D5*50L*2F 5 10 5 50
SA210-2B-05010 R2.5*D6*50L*2F 5 10 6 50
SA210-2B-06012 R3*D6*50L*2F 6 12 6 50
SA210-2B-08016 R4*D8*60L*2F 8 16 8 60
SA210-2B-10020 R5*D10*75L*2F 10 20 10 75
SA210-2B-12024 R6*D12*75L*2F 12 24 12 75
SA210-2B-14028 R7*D14*100L*2F 14 28 14 100
SA210-2B-16032 R8*D16*100L*2F 16 32 16 100
SA210-2B-18036 R9*D18*100L*2F 18 36 18 100
SA210-2B-20040 R10*D20*100L*2F 20 40 20 100
SA210-2BH-01002 R0.5*D4*75L*2F 1 2 4 75
SA210-2BH-02004 R1*D4*75L*2F 2 4 4 75
SA210-2BH-04008 R2*D4*75L*2F 4 8 4 75
SA210-2BH-06012 R3*D6*75L*2F 6 12 6 75
SA210-2BH-08016 R4*D8*75L*2F 8 16 8 75
SA210-2BH-10020 R5*D10*100L*2F 10 20 10 100
SA210-2BH-12024 R6*D12*100L*2F 12 24 12 100
SA210-2BH-14028 R7*D14*150L*2F 14 28 14 150
SA210-2BH-16032 R8*D16*150L*2F 16 32 16 150
SA210-2BH-18036 R9*D18*150L*2F 18 36 18 150
SA210-2BH-20040 R10*D20*150L*2F 20 40 20 150
