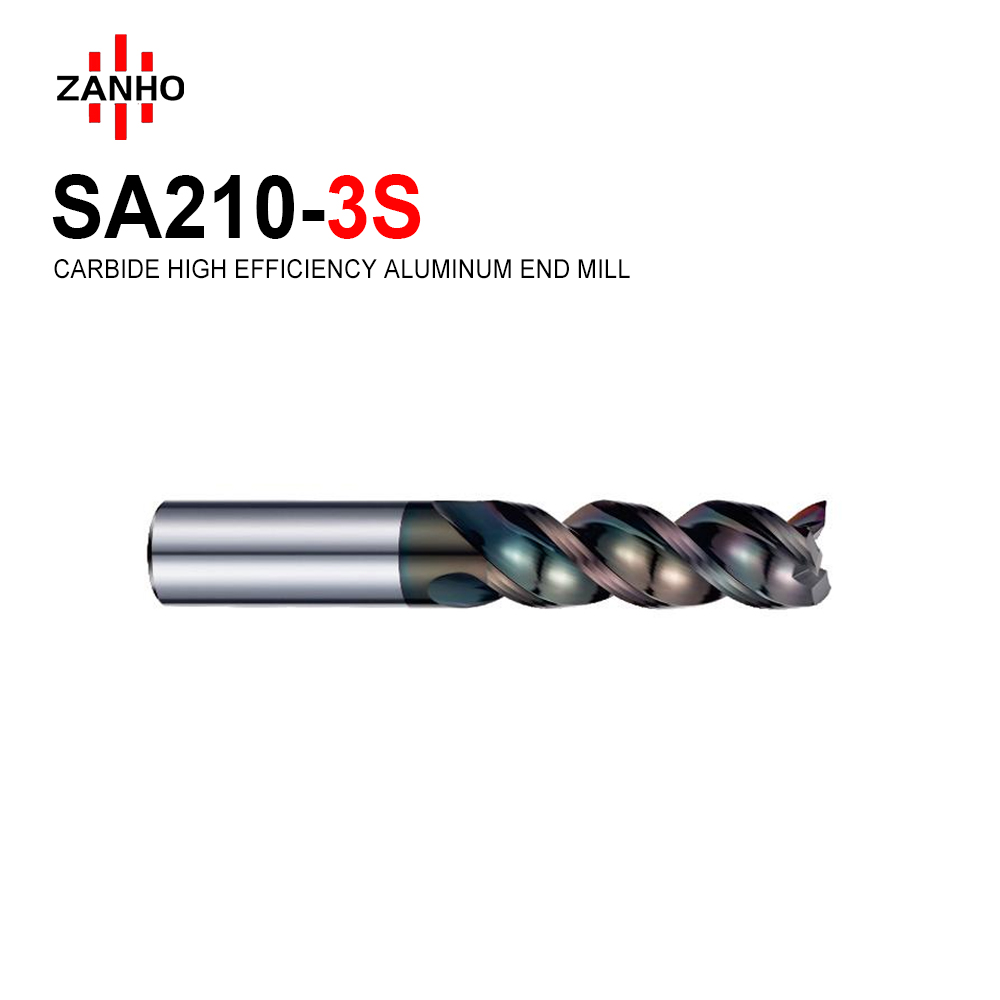

SA210-3S-Alu.

Specialty: 3-Flute (3S) design optimized for high-speed aluminum and non-ferrous metal machining.
Coating: Specialized TAC Coating to prevent chip welding and ensure low friction.
Helix Angle: 50° High Helix Angle for superior chip evacuation and excellent surface finish.
Workpiece: Ideal for Aluminum Alloy, Copper, and Plastic (Workpiece category N).
Efficiency: Engineered for high material removal rates (MRR) without clogging or buildup.
Surface Finish: Provides a mirror-like finish on machined surfaces.

Categories: Carbide End Mill for Aluminum

Specialty: 3-Flute (3S) design optimized for high-speed aluminum and non-ferrous metal machining.
Coating: Specialized TAC Coating to prevent chip welding and ensure low friction.
Helix Angle: 50° High Helix Angle for superior chip evacuation and excellent surface finish.
Workpiece: Ideal for Aluminum Alloy, Copper, and Plastic (Workpiece category N).
Efficiency: Engineered for high material removal rates (MRR) without clogging or buildup.
Surface Finish: Provides a mirror-like finish on machined surfaces.

订货号 Order Number	规格 Specification	刀径 D	刃长 L1	柄径 D1	总长 L
SA210-3S-01003	D1D450L*3F	1	3	4	50
SA210-3S-01505	D1.5D450L*3F	1.5	5	4	50
SA210-3S-02006	D2D450L*3F	2	6	4	50
SA210-3S-02507	D2.5D450L*3F	2.5	7	4	50
SA210-3S-33009	D3D350L*3F	3	9	3	50
SA210-3S-03009	D3D450L*3F	3	9	4	50
SA210-3S-03510	D3.5D450L*3F	3.5	10	4	50
SA210-3S-04012	D4D450L*3F	4	12	4	50
SA210-3S-55015	D5D550L*3F	5	15	5	50
SA210-3S-05015	D5D650L*3F	5	15	6	50
SA210-3S-06018	D6D650L*3F	6	18	6	50
SA210-3S-08024	D8D860L*3F	8	24	8	60
SA210-3S-10030	D10D1075L*3F	10	30	10	75
SA210-3S-12035	D12D1275L*3F	12	36	12	75
SA210-3S-14045	D14D14100L*3F	14	45	14	100
SA210-3S-16045	D16D16100L*3F	16	45	16	100
SA210-3S-18045	D18D18100L*3F	18	45	18	100
SA210-3S-20045	D20D20100L*3F	20	45	20	100
SA210-3SH-03012	D3D475L*3F	3	12	4	75
SA210-3SH-33012	D3D375L*3F	3	12	3	75
SA210-3SH-33012A	D3D3100L*4F	3	15	3	100
SA210-3SH-04016	D4D475L*3F	4	16	4	75
SA210-3SH-04020	D4D4100L*3F	4	20	4	100
SA210-3SH-55020	D5D575L*3F	5	20	5	75
SA210-3SH-06024	D6D675L*3F	6	24	6	75
SA210-3SH-55025	D5D5100L*3F	5	25	5	100
SA210-3SH-06030	D6D6100L*3F	6	30	6	100
SA210-3SH-06040	D6D6150L*3F	6	40	6	150
SA210-3SH-08030	D8D875L*3F	8	30	8	75
SA210-3SH-08035	D8D8100L*3F	8	35	8	100
SA210-3SH-08045	D8D8150L*3F	8	45	8	150
SA210-3SH-10040	D10D10100L*3F	10	40	10	100
SA210-3SH-10055	D10D10150L*3F	10	50	10	150
SA210-3SH-10045	D12D12100L*3F	12	45	12	100
SA210-3SH-12055	D12D12150L*3F	12	55	12	150
SA210-3SH-14070	D14D14150L*3F	14	70	14	150
SA210-3SH-16075	D16D16150L*3F	16	75	16	150
SA210-3SH-18075	D18D18150L*3F	18	75	18	150
SA210-3SH-20075	D20D20150L*3F	20	75	20	150
