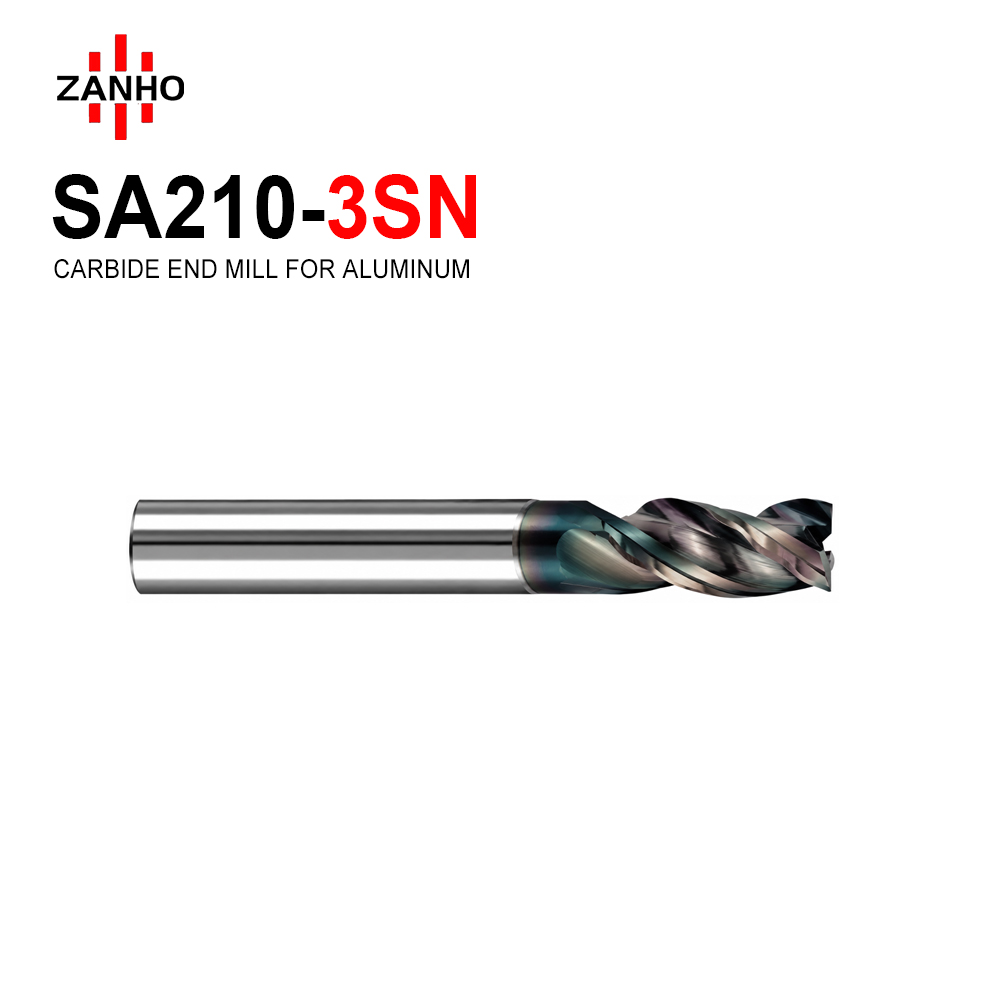

SA210-3SN

  • Wave-Edge Technology: Innovative Wave-Edge (Roughing) profile breaks chips into smaller pieces and reduces cutting forces by up to 30%, ideal for high-efficiency machining.
  • Anti-Stick TAC Coating: Advanced TAC Coating (Colorful) provides an ultra-smooth surface to eliminate material adhesion and built-up edge (BUE) in aluminum.
  • Deep Reach Capability: Engineered with Neck Clearance (Reduced Shank), allowing for deep-pocketing and side milling in confined spaces without tool interference.
  • Maximum MRR: 3-flute structure optimized for maximum Material Removal Rates (MRR) while maintaining tool stability and rigidity.
Categories:
Learn More
Download PDF
Description
  • Wave-Edge Technology: Innovative Wave-Edge (Roughing) profile breaks chips into smaller pieces and reduces cutting forces by up to 30%, ideal for high-efficiency machining.
  • Anti-Stick TAC Coating: Advanced TAC Coating (Colorful) provides an ultra-smooth surface to eliminate material adhesion and built-up edge (BUE) in aluminum.
  • Deep Reach Capability: Engineered with Neck Clearance (Reduced Shank), allowing for deep-pocketing and side milling in confined spaces without tool interference.
  • Maximum MRR: 3-flute structure optimized for maximum Material Removal Rates (MRR) while maintaining tool stability and rigidity.

Order Number Specification D d1 L1 Clearance length D1 L
SA210-3SN-06012 D6*12H*D6*50L*3F 6 5.7 12 6 6 50
SA210-3SNH-06012 D6*12H*D6*75L*3F 6 5.7 12 6 6 75
SA210-3SNH-06012A D6*12H*D6*100L*3F 6 5.7 12 6 6 100
SA210-3SN-08016 D8*16H*D8*60L*3F 8 7.7 16 6 8 60
SA210-3SNH-08016 D8*16H*D8*75L*3F 8 7.7 16 8 8 75
SA210-3SNH-08016A D8*16H*D8*100L*3F 8 7.7 16 8 8 100
SA210-3SN-10020 D10*20H*D10*75L*3F 10 9.7 20 10 10 75
SA210-3SNH-10020 D10*20H*D10*100L*3F 10 9.7 20 10 10 100
SA210-3SN-12025 D12*25H*D12*75L*3F 12 11.7 25 10 12 75
SA210-3SNH-12025 D12*25H*D12*100L*3F 12 11.7 25 10 12 100
SA210-3SN-14025 D14*25H*D14*100L*3F 14 13.7 25 10 14 100
SA210-3SN-16025 D16*25H*D16*80L*3F 16 15.7 25 10 16 80
SA210-3SNH-16025 D16*25H*D16*100L*3F 16 15.7 25 35 16 100
SA210-3SN-20030 D20*30H*D20*100L*3F 20 19.7 30 42 20 100
